RED COMPACT 24 - Page 37

35
1
5
5
44
13
11
6
7
14
16
2
3

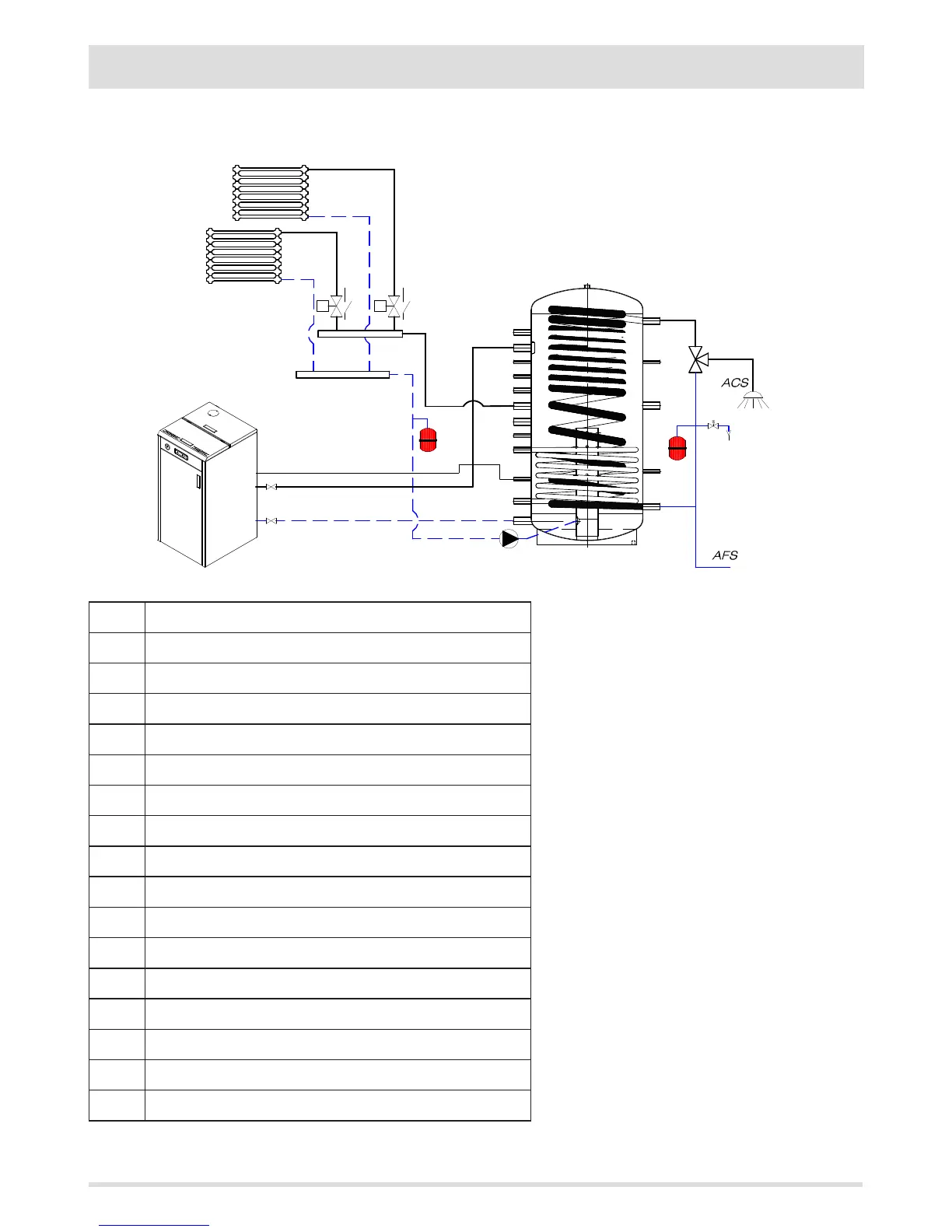

9 - PRELIMINARY NOTIONS
CONFIGURATION 5
1 COMPACT
2 HEATING DELIVERY
3 HEATING RETURN
4 ZONE VALVES
5 HEATING BODIES
6 DOMESTIC HOT WATER
7 COLD DOMESTIC WATER
8 DOMESTIC WATER BOILER
9 DIVERTER VALVE
10 BOILER THERMOSTAT
11 THERMOSTATIC MIXING VALVE
12 DOMESTIC WATER 10 kΩ β3434 NTC PROBE
13 HEATING PUFFER
14 HEATING SYSTEM CIRCULATOR
15 PUFFER THERMOSTAT
16 PUFFER 10 kΩ β3434 NTC PROBE
17 SAFETY VALVE
