RED PRIMULA - Technical Flue Characteristics

A
B
C
D
E
A
B
C
D
15°
E
F
A
B
C
D
E
30°
F
12
2-INSTALLATION INSTRUCTIONS
TECHNICAL CHARACTERISTICS
Have the eciency of the ue checked by an authorised technician.
The ue must be sealed against ue gasses, in a vertical direction without narrowing, be made with materials impermeable to smoke,
condensation, thermally insulated and suitable to resist normal mechanical stress over time (we recommend replaces made of A/316
or refractory material with insulated round section double chamber). Be suitably insulated externally to avoid condensation and reduce
smoke cooling. It should be separated from combustible or ammable materials with an air gap or insulating materials: check the distance
specied by the manufacturer of the replace according to EN1443. The chimney opening must be in the same room as the appliance,
or at most in the adjoining room, and have a soot and condensation collection chamber beneath the opening, and be accessible via a
watertight metal hatch.

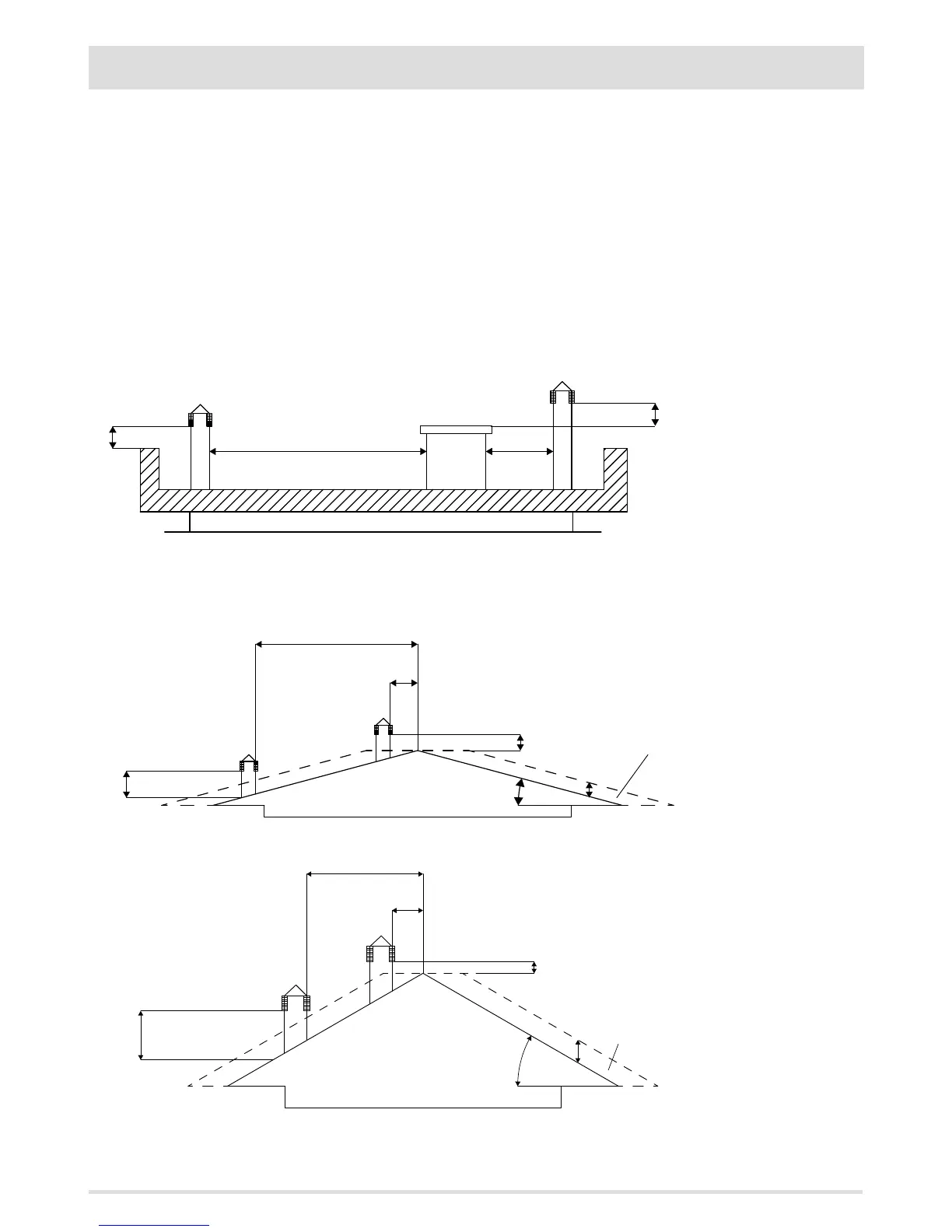

FLAT ROOF
ROOF AT 15°
ROOF AT 30°
A = 0.50 metres
B = DISTANCE > 2 metres
C = DISTANCE < 2 metres
D = O.50 metres
E = TECHNICAL VOLUME
A = MIN. 1.00 metres
B = DISTANCE > 1.85 metres
C = DISTANCE < 1.85 metres
D = 0.50 metres above highest
point
E = 0.50 metres
F = REFLUX ZONE
A = MIN. 1.30 metres
B = DISTANCE > 1.50 metres
C = DISTANCE < 1.50 metres
D = 0.50 metres ABOVE
HIGHEST POINT
E = 0.80 metres
F = REFLUX ZONE
FIGURE 2
FIGURE 3
FIGURE 4
