C
D
A
B
28
5-PLUMBING CONNECTION

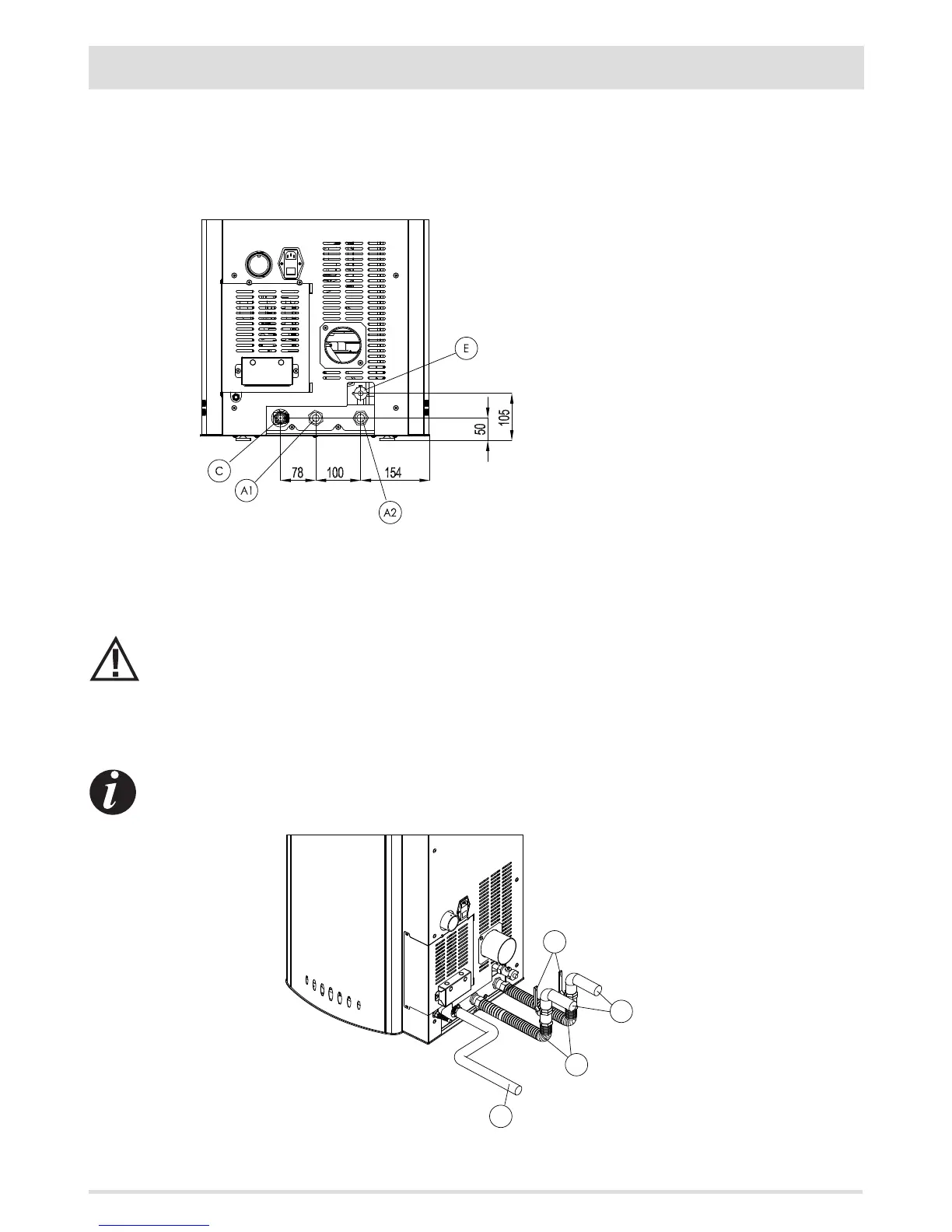

CONNECTION DIAGRAM FOR GARDENIA-MARGHERITA HYDRO STOVE
A1 3/4”M heating water delivery
A2 3/4”M heating water return 3/4”M
C 3 bar 1/2” M safety valve
E 3/4”M system draining and emptying
SYSTEM CONNECTIONS
Make the connections to the corresponding ttings shown in the diagram on the previous page. Make sure the pipes are not placed under
tension or undersized.
IT IS STRONGLY RECOMMENDED TO WASH THE ENTIRE SYSTEM BEFORE CONNECTING THE STOVE IN ORDER TO GET RID
OF RESIDUES AND DEPOSITS.
Upstream from the stove, always install gate valves so as to disconnect it from the plumbing system should it be
necessary to move it, or when it requires routine and/or special maintenance. Connect the stove using hoses so that
the stove is not connected too tightly to the system, and to allow slight movements.
The pressure discharge valve (C) must always be connected to a water drain pipe. The pipe must be adequate to
support the water’s high temperature and pressure.
A = TAP
B = DOMESTIC SYSTEM
C = PRESSURE DISCHARGE
D = HOSES
