13-MAINTENANCE AND CLEANING
CLEAN THE EXCHANGER AND THE UNDERGRATE SPACE EVERY 2/3 DAYS.
Cleaning the exchanger and the undergrate space is a simple operation but very important for always maintaining performance as
declared.
Therefore we recommend cleaning the internal exchanger every 2-3 days, performing these simple operations in sequence:
• Activate the “CLEANING” function – when the stove is switched of press - menu “3”, select“Settings”, with the <> arrows “2-4”
select “Cleaning”, conrm with “Menu” “3”, activate cleaning “ON” by pressing the +- keys “5-6”. This procedure activates the smoke
extraction fan on maximum power to expel the soot that is dislodged when the exchanger is cleaned.
• Clean the pipe unit – Using the hook provided, shake the rods located under the top (A in gure 10) vigorously 5-6 times. This
operation removes the soot that has deposited on the exchanger smoke ducts during normal stove operation.
• Clean the smoke conveyor compartment
PRIMULA/ORCHIDEA stoves (Figure 10)
– Primula/Orchidea stoves are tted with a removable ash pan “C” designed to collect any soot and ash build-up.
GARDENIA/MARGHERITA stoves (Figure 10a)
– Open the door, insert the hook onto the rod of the scraper B (B in gure 10a), shake it vigorously 5-6 times along the entire length.
Remove the hook and reposition the rod B fully in its seat. This will help the fan expel any soot build-up which may have fallen during
the previous pipe unit cleaning process. (After shaking the rods “A”, always shake the scraper “B” too).
• Disable the “CLEANING” function - this function is automatically disabled after two minutes. If one needs to stop this function
in advance press the “Esc” key.
If these cleaning operations are not performed every 2-3 days, the stove could go into alarm conditions due to ash
clogging after several hours of operation.

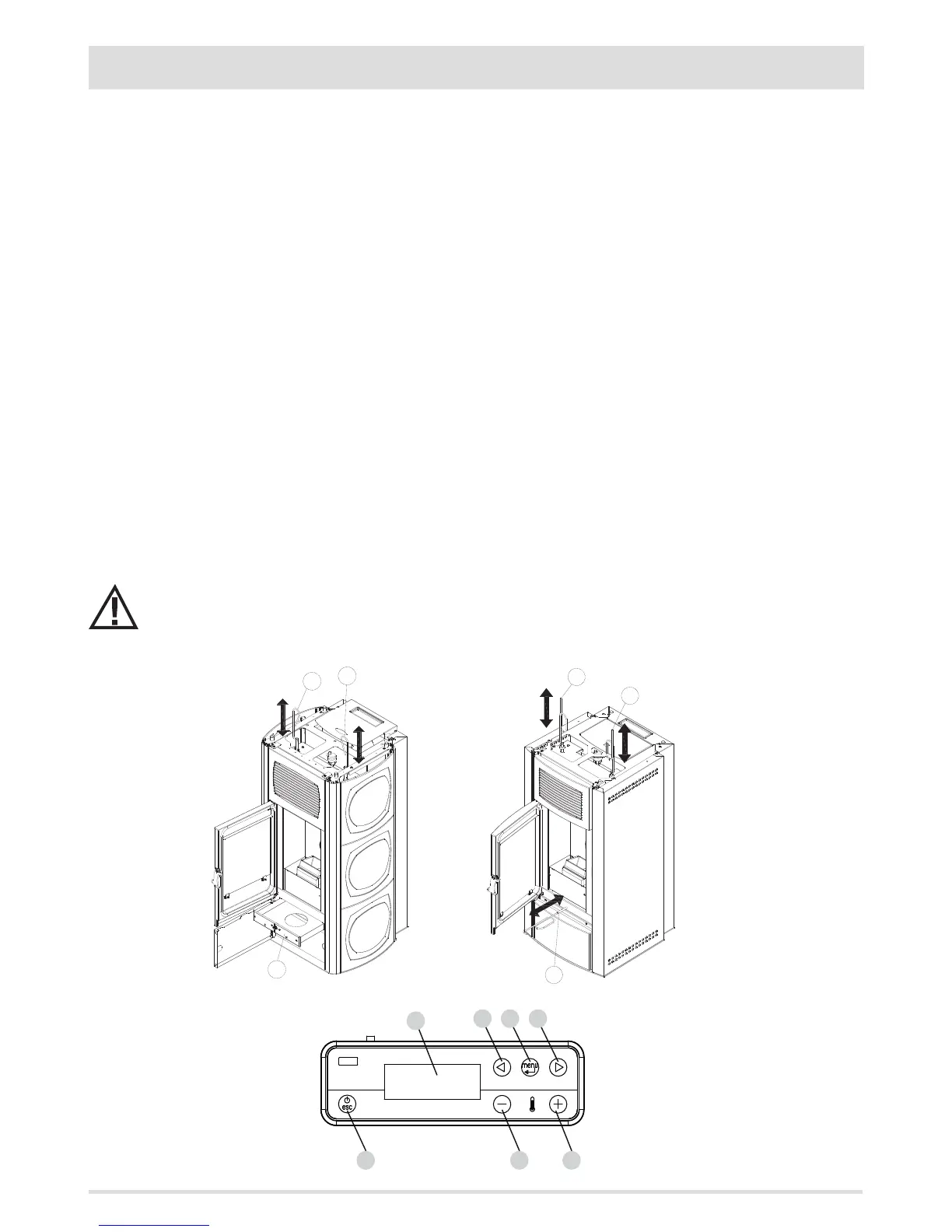

FIGURE 9 - “CLEANING” FUNCTION
FIGURE 10 - CLEANING THE
INTERNAL PIPE UNIT US-
ING SCRAPERS (PRIMULA-
ORCHIDEA)
FIGURE 10A - CLEANING THE LOWER
DRAWER (GARDENIA-MARGHERITA)
