Redarc BCDC1225-LV - Page 11

10
2 INSTALLATION
24V
INPUT
Fuse*
Optional LED
All ground points must
be connected to chassis
earth.
Auxiliary
Battery
Start
Battery
Fuse*
Charging Profile Select
Refer to section 2.3
*Fuse Ratings as per table on Page 2
Loads
Load
Fuse
Red
Blue
Orange
Black
Brown
Green
12V
INPUT
OR
24V
BCDC1225 & BCDC1240
Loads
Load
Fuse
12V
Fuse*
All ground points must
be connected to chassis
earth.
Auxiliary
Battery
Start
Battery
Fuse*
INPUT
to vehicle
ignition
*Fuse Ratings as per table on Page 2
Red
Blue
Orange
Black
Brown
Green
Charging Profile Select
(Refer to section 2.3)
Optional LED
BCDC1225-LV & BCDC1240-LV

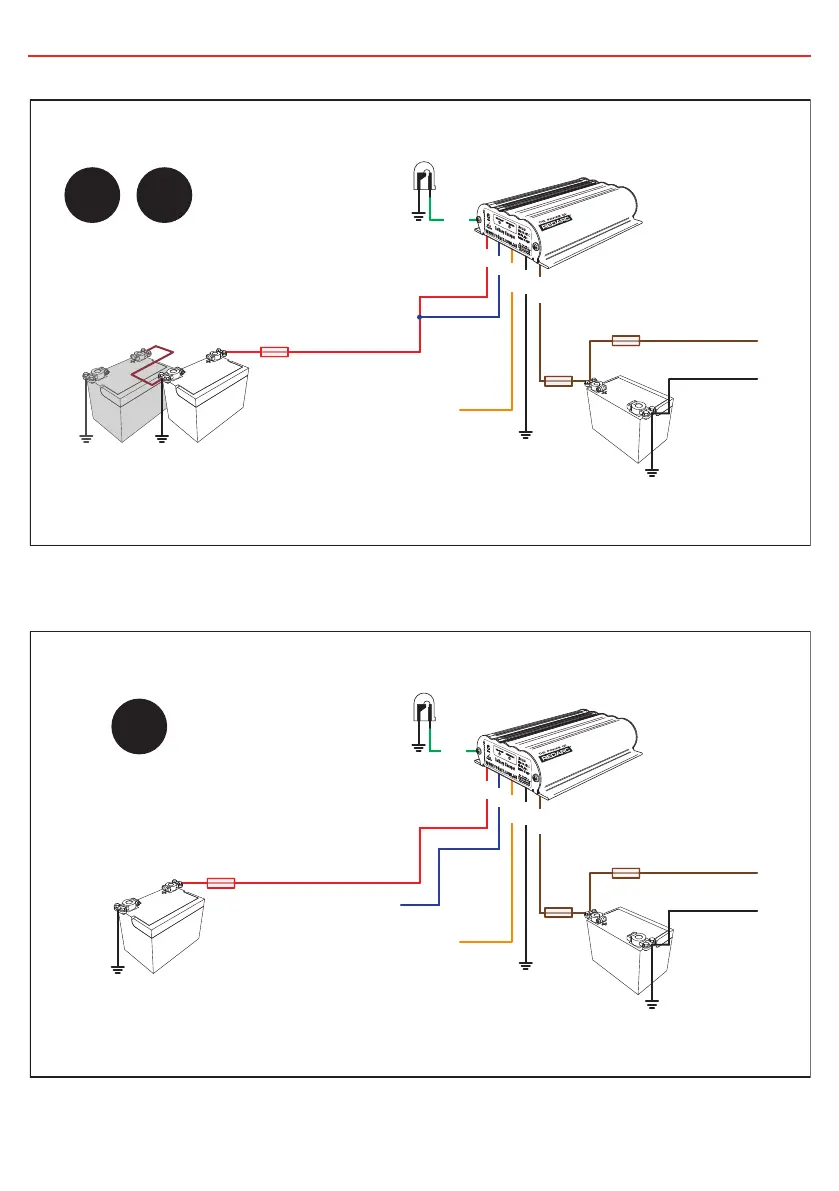

Figure 2.8b - BCDC1225-LV and BCDC1240-LV Standard
setup for a 12V Start Battery
Figure 2.8a - BCDC1225 and BCDC1240 Standard setup
for a 12V or 24V Start Battery
