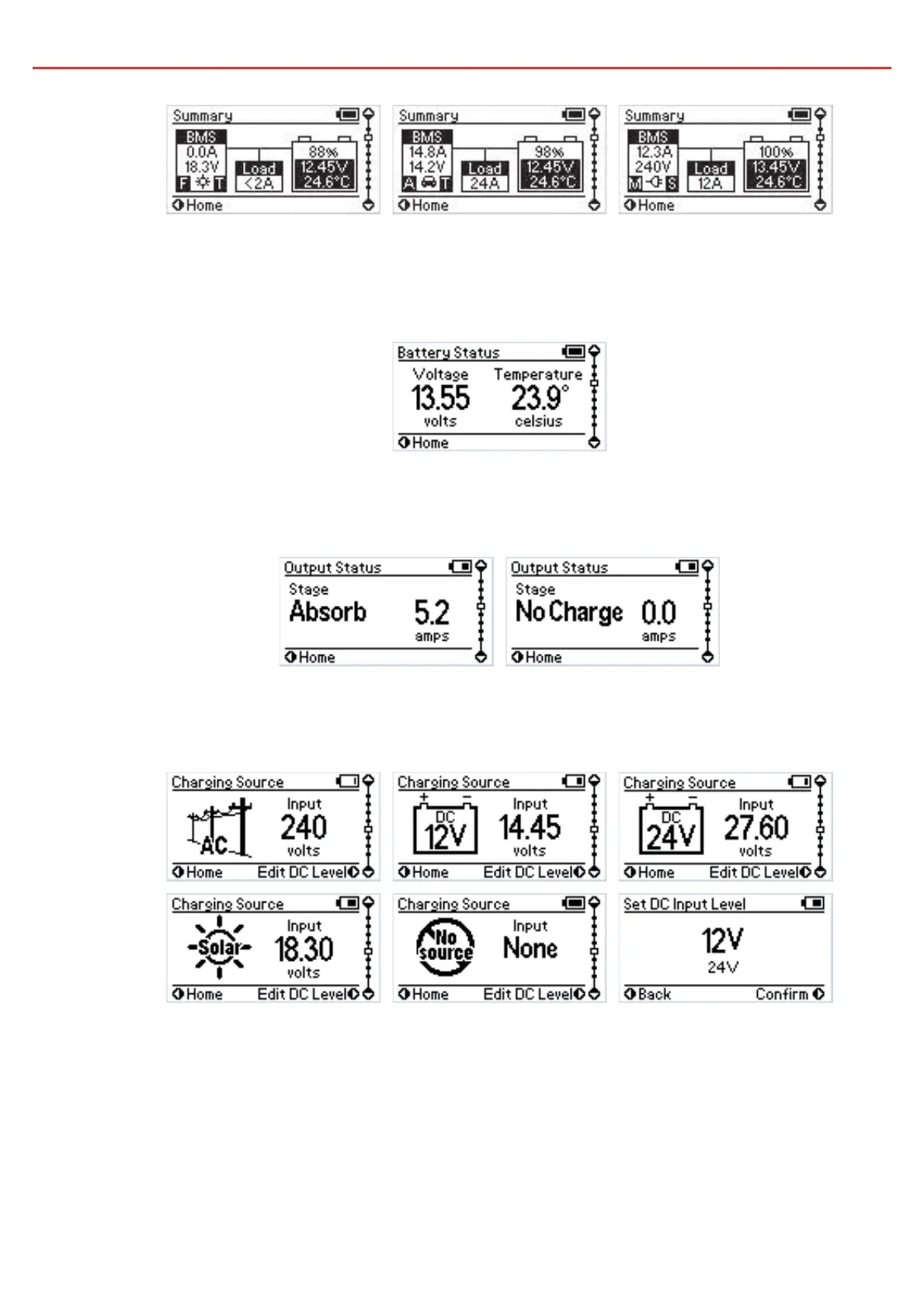

This screen displays a live summary of the electrical system including source type, voltage and charging
current, the size of any loads running and the state of the battery under charge.
Pressing ‘Down’ from the Currents screen will display the Battery Status screen.
This screen displays the status of the battery under charge, including Battery Voltage and Battery Temperature.
Pressing ‘Down’ from the Battery Status screen will display the Output Status screen.
This screen displays the charging status of the BMS, including Charge Stage and Output Current.
Pressing ‘Down’ from the Output Status screen will display the Charging Source screen.
This menu displays the selected input source for the battery charger. The BMS operates on a charge priority
setup, with AC being the highest priority, followed by DC and then Solar. Pressing the ‘Enter’ key from the
Charging Source screen will take you to the Set DC Input Level screen which allows you to select a 12V or
24V vehicle system voltage.
Pressing ‘Down’ from the Charging Source screen will take you to the Charging Mode screen.
