Redarc BMS1230S2 User Manual

15
2 INSTALLATION GUIDE
Removing the Remote Monitor

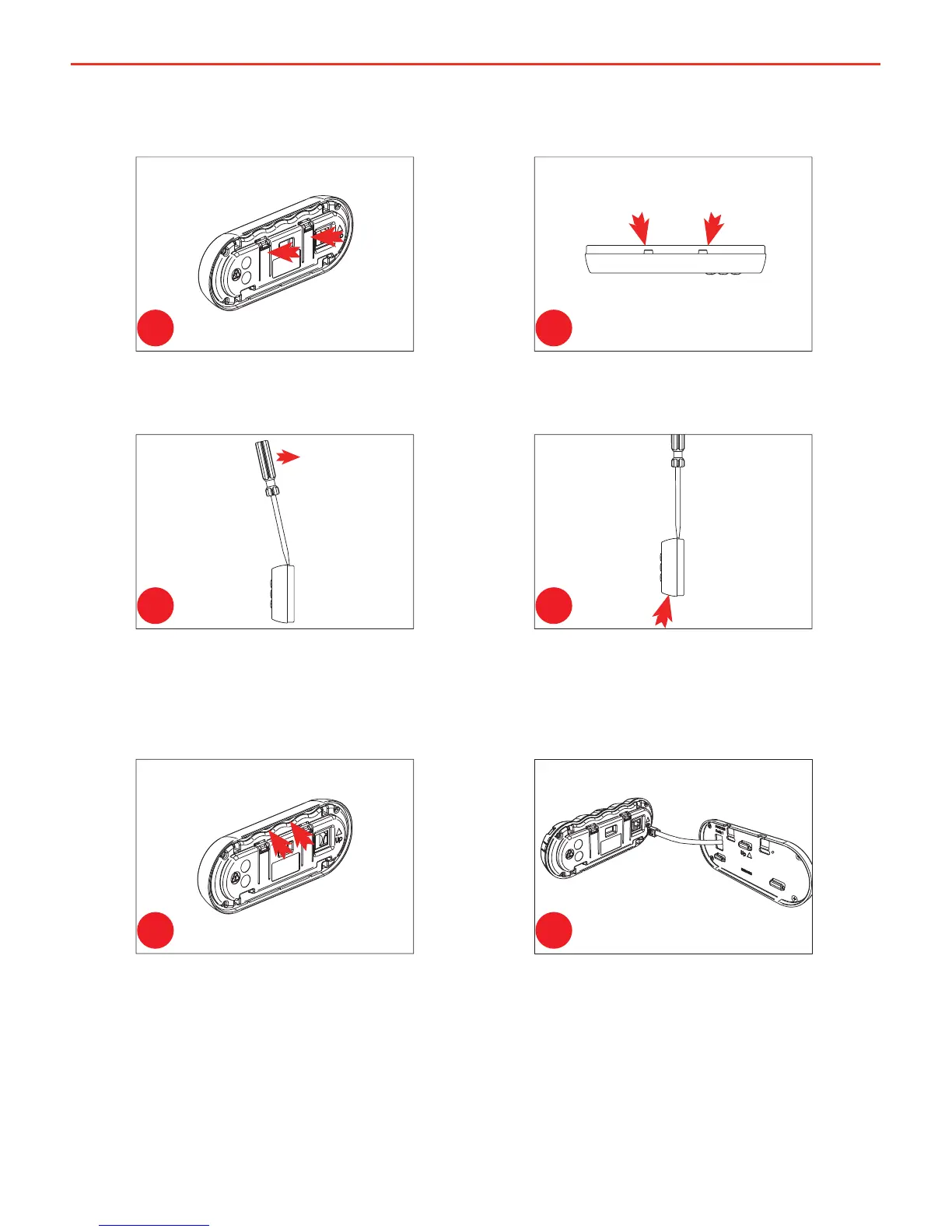

Figure 2.2.2.3 - How to remove the
Remote Monitor.
The locking tabs on the back of the
Inner Assembly need to be unclipped
from the Back Plate.
The locking tabs can be accessed
through holes on the top of the
backing plate when installed.
Slide fi ngers between the Front Face
and the Inner Assembly in positions
marked above and carefully pull
back towards the front of the
Remote Monitor.
Remove the Remote Monitor cable
and the Inner Assembly is removed.
Insert a fl at-head screwdriver at a
slight angle towards the front of the
Remote Monitor and push back to
depress the locking tabs.
1 2
3 4
5 6
When the screwdriver is in a vertical
position, gently push upwards on the
bottom of the Remote Assembly to
unlock tab. Repeat 3 & 4 for 2
nd
tab.
