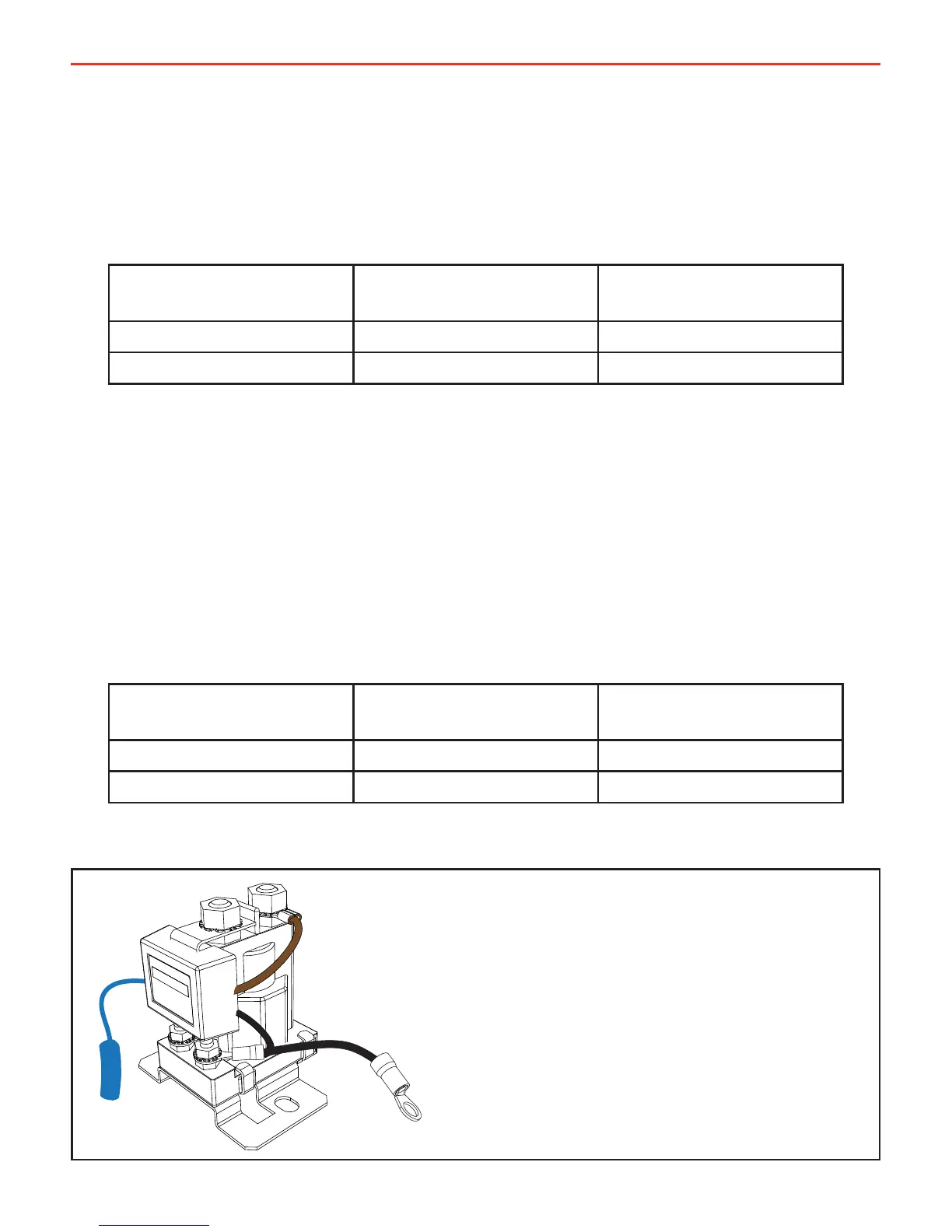

2 INSTALLATION GUIDE
2.3.1 Input Wire Diameter Selection
REDARC recommends the installer use cabling and connections between 8B&S
and 6B&S automotive. REDARC recommends that the input wire be of the size
outlined in Table 2.3.1.
Distance from input vehicle
battery to The Manager30
Recommended Cross
Sectional Area (mm²)
Recommended
Diameter Equivalent
≤3m 8 8 B&S
>3m 10 6 B&S
2.3.2 Output Wire Diameter Selection
REDARC recommends the installer use cabling and connections between 8B&S
and 6B&S automotive. REDARC recommends that the output wire be of the size
outlined in Table 2.3.2. For longer runs using 10mm² is recommended, however
this will lower effi ciency by up to 3% (the recommended maximum length is 5m).
Distance (metres) from The
Manager30 to House battery
Recommended Cross
Sectional Area (mm²)
Recommended
Diameter Equivalent
≤1.5m 8 8 B&S
>1.5m 10 6 B&S
Figure 2.3.2 - Recommended output
cable size
17
Figure 2.3.1 - Recommended input
cable size
REDARC recommend using the SBI12-BLD
as the 12V relay for setting up the Load
Disconnect Feature for Non-Essential Loads.
Similarly, the SBI12-LLD is recommended
for use between the Auxiliary battery and the
Essential Loads in a Lithium Battery setup,
to protect the Lithium battery from excessive
discharge.
