28 | Transporting the GoBlock
RESTRAIN THE GoBlock USING TIE-DOWN STRAPS
Additional anchor points may need to be installed in your vehicle if the standard vehicle anchor
points are inadequately rated. To restrain the GoBlock with tie-down straps, use the following:
 2 × Tie-down straps with a minimum load capacity of 200kg (440lb) each.
Nylon webbing straps are recommended — do not use elasticated straps.
 4 × Anchor points with a minimum load capacity of 200kg (440lb) each.

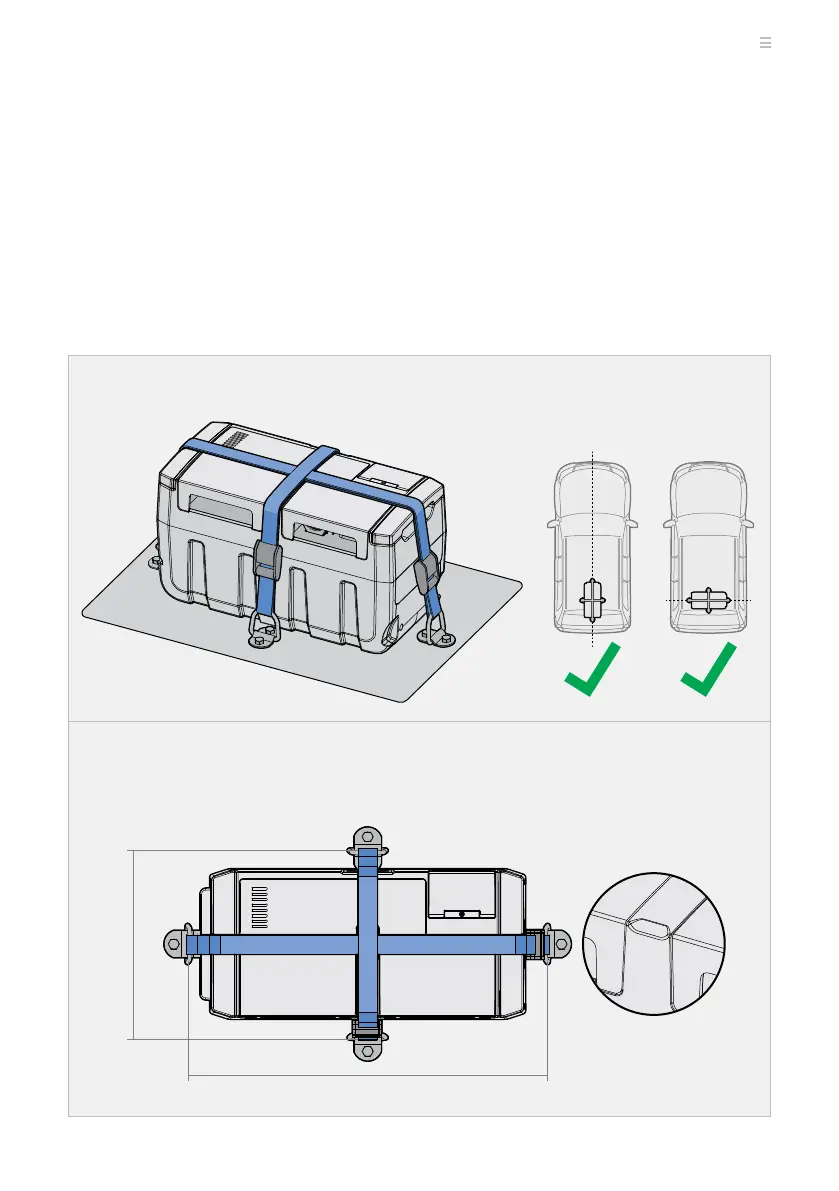

Attach the tie-down straps centrally across the length and width of the GoBlock. Make sure that the
straps are positioned over the Restraint Strap Guides. Anchor to the four anchor points and tighten
the straps until the GoBlock can not move laterally when force is applied.
Secure the GoBlock with tie-down straps for safe vehicle transportation. The GoBlock can be
oriented along or across the vehicle.
Position the tie-down straps centrally along the length and width of the GoBlock.
Anchor point spacings must be equal to or less than the 'Max' dimensions shown (measured
to the centre of the anchor point).
Max: 295 mm / 11.6"
Max: 520 mm / 20.5"
