Redarc RS Series User Manual

23
3 INSTALLATION
3.5 DC Wiring Connections
Before inserting DC cables, remove the bolts with attached washers in the terminal
a. Insert the crimped/terminated DC cable lugs into the input terminals, ensuring that the DC cables are
connected into the correct terminal, positive (+) DC cable into positive terminal and negative (−) DC
cable into the negative terminal.
b. Screw bolts and attached washers in tightly
c. Connect DC cables into an appropriate battery supply or other DC power source and connect to the
DC cables to the correct positive (+) and negative (−) output.
Ring Terminal
Cable
M8 Screw
Washer
Plastic Cover
Spring Washer
Cable
Plastic
Cover
Ring Terminal
M8 Nut

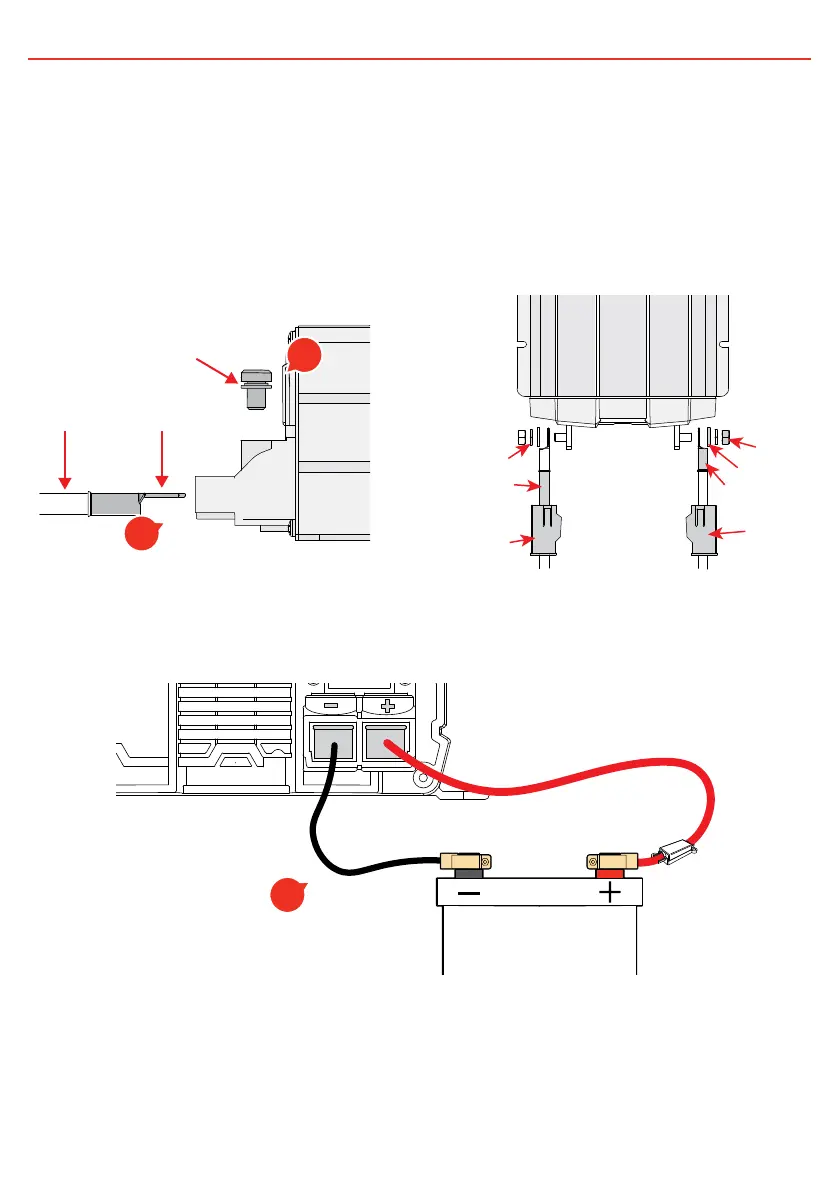

FIGURE 3.5.1: DC Cable Installation for 1000W FIGURE 3.5.2: DC Cable Installation for
1500W /2000W/3000W Model
FIGURE 3.5.3: DC Cable Installation into Battery Source
a
b
c
