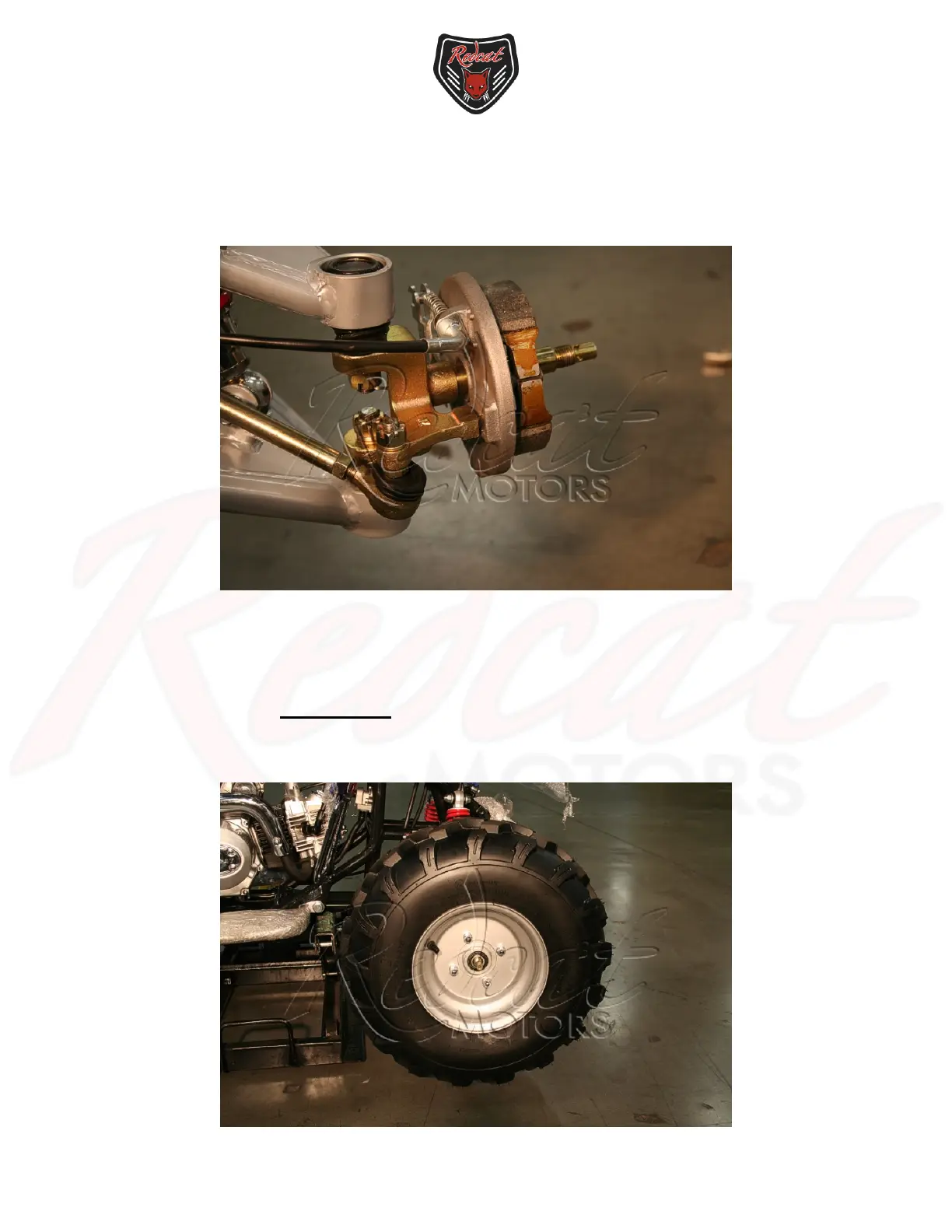

4) Front Brakes

a. Remove blue tie from front brake assembly.

b. Remove 19mm hex castle nut from steering knuckle.

c. Line up slot in brake plate with locating tab on steering knuckle.

d. Slide brake assembly into place.

5) Front Wheels and Tires

a. Slide front wheel onto steering knuckle.

i. IMPORTANT – Ensure wheel spacer is in place.

b. Install and tighten 19mm hex castle nut.

c. Install 1.5” cotter pin.
