Bulletin No. DA10D-A Effective 2018-11-02
Drawing No. LP1077
-2-
1. POWER REQUIREMENTS:
Must use a Class 2 circuit according to National Electrical Code (NEC),
NFPA-70 or Canadian Electrical Code (CEC), Part I, C22.1 or a
Limited Power Supply (LPS) according to IEC 60950-1 or Limited-
energy circuit according to IEC 61010-1.
Power connection via removable three position terminal block.
Supply Voltage: 24 VDC ±20%, Class 2 source
Typical Power: 1.9 W
Max Power: 3.5 W
2. BATTERY: Lithium coin cell. Typical lifetime of 5 years, nominal.
To maintain UL rating, replacement battery must be: Red Lion CRA000
BT3V0 00000, Rayovac BR1225X-BA or Panasonic BR1225A/BN.
3. MEMORY:
On Board User Memory: 512 Mbyte of non-volatile Flash memory.
Memory Card: SD slot accepts standard capacity cards up to 16 GB.
4. COMMUNICATION CAPABILITIES:
USB Device Port: Isolated and adheres to USB specification 2.0 full
speed only using Type B connection.
USB DEVICE PORT IS FOR
SYSTEM SET-UP AND DIAGNOSTICS AND IS NOT INTENDED FOR
PERMANENT CONNECTION.
Serial Ports (2): Ports are individually isolated. Format and Baud
Rates for each port are individually software programmable up to
115,200 baud.
Port to Port Isolation: 1500 Vrms for 1 minute.
Signal Isolation: 500 V.
Ethernet Port: 10 BASE-T / 100 BASE-TX
RJ45 jack is wired as a NIC (Network Interface Card).
Isolation from Ethernet network to operator interface: 1500 Vrms
5. ENVIRONMENTAL CONDITIONS:
Operating Temperature Range: -10 to 50 °C
Storage Temperature Range: -20 to 70 °C
Vibration to IEC 68-2-6: Operational 5-500 Hz, 2 g
Shock to IEC 68-2-27: Operational 30 g
Operating and Storage Humidity: 0 to 85% max. RH non-condensing
Altitude: Up to 2000 meters
Installation Category II, Pollution Degree 2 as defined in IEC/EN 60664-1.
6. CERTIFICATIONS AND COMPLIANCES:
CE Approved
Immunity: IEC/EN 61000-6-2 for Industrial Locations
Emissions: IEC/EN 61000-6-4 for Industrial Locations; CISPR 11 Class A
IEC/EN 61010-1
RoHS Compliant
UL Listed: File #E302106
Rugged IP40 enclosure
7. CONNECTIONS: High compression cage-clamp terminal block
Wire Strip Length: 0.3" (7.5 mm)
Wire Gage Capacity: 12 to 24 AWG (3.31 to 0.20 mm
2
) copper wire
Torque: 4.4-5.3 inch-lbs (0.5-0.6 N-m)
8. CONSTRUCTION: Polycarbonate enclosure with IP40 rating. For
indoor use only.
9. MOUNTING REQUIREMENTS: Snaps onto standard DIN style top hat
(T) profile mounting rails according to EN50022 – 35 x 7.5 mm and
35 x 15 mm.
10. WEIGHT: 6.8 oz (192.78 g)
SPECIFICATIONS
INSTALLINGANDPOWERINGTHEDA10D
MOUNTINGINSTRUCTIONS
DIN rail should be mounted horizontally so that the unit’s ventilation
holes are vertical in relation to cabinet orientation. A minimum clearance
of 1 inch (25.4 mm) should be maintained above and below the unit in
order to ensure proper thermal regulation.

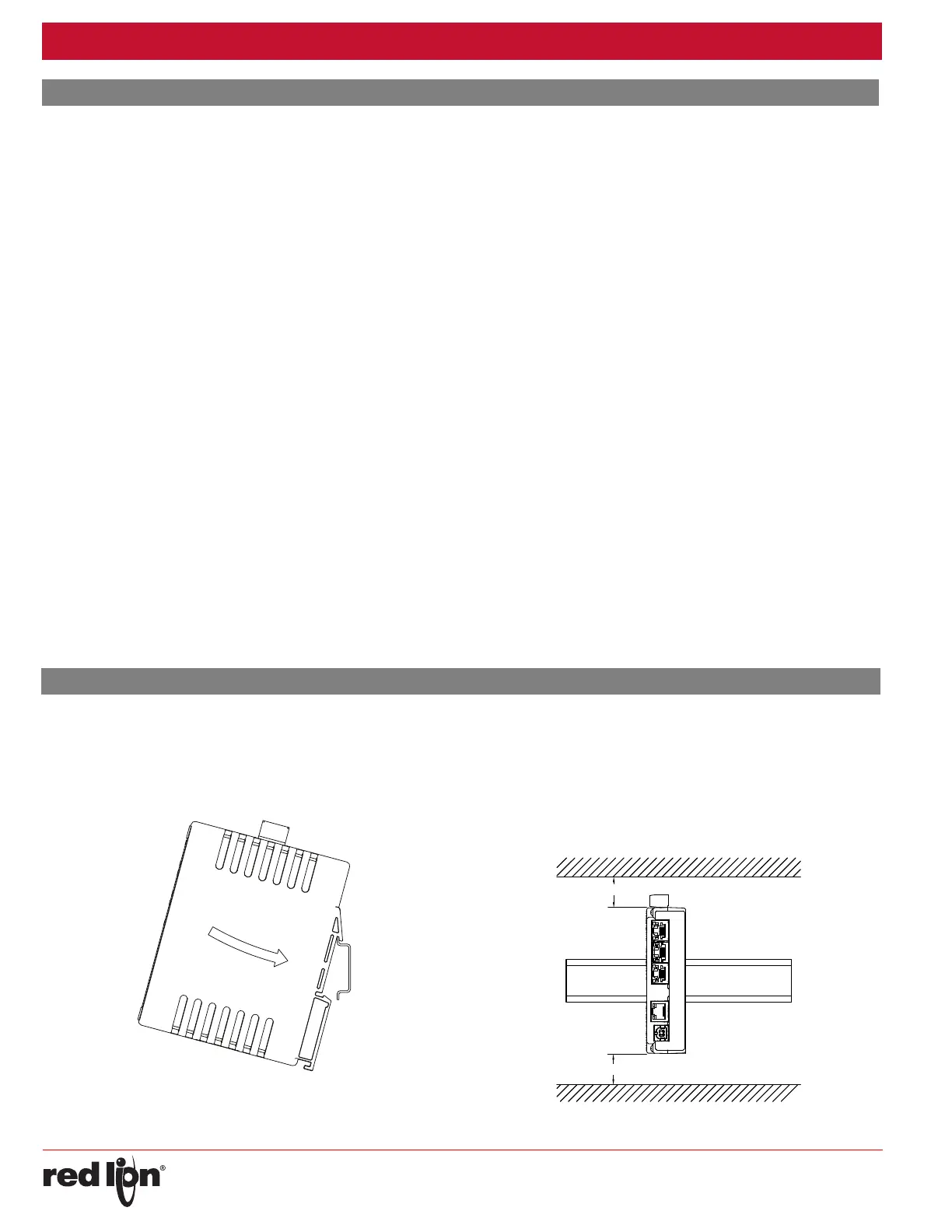

Figure 1 - Attach DAx0D To DIN Rail
The unit shall be installed inside a UL Listed Industrial Control Panel or
similar type of enclosure. A minimum 3.2 mm distance shall be
maintained between the hazardous live parts of the equipment and
accessible parts of the fire/electrical enclosure.
This device is open-type and must be mounted in a suitable dust-tight
end-enclosure in accordance with articles 500 and 502 of the National
Electric Code (NEC).
1.00"
1.00"
min. clearance
min. clearance
TOP
BOTTOM
