6. Set up

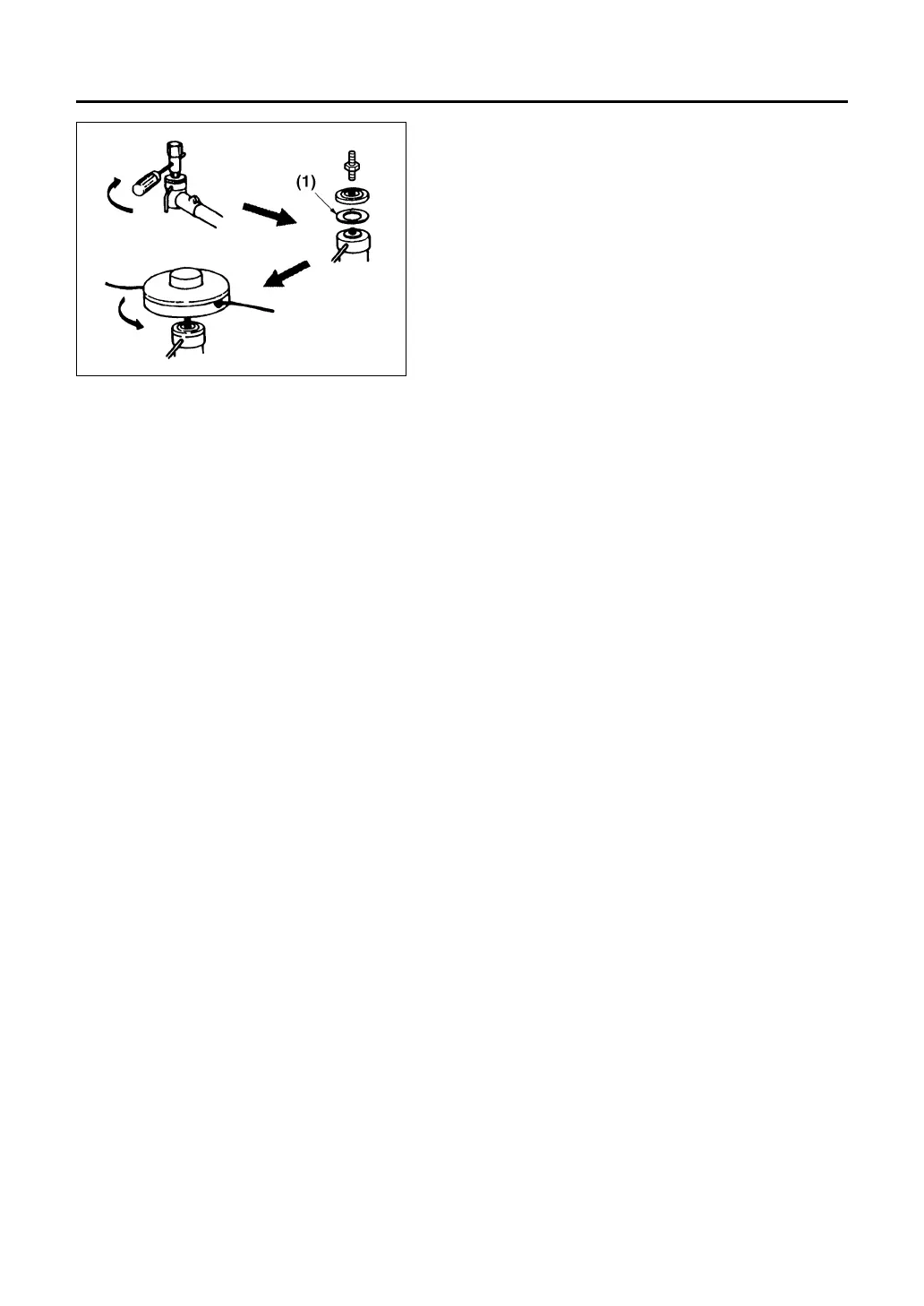

■ INSTALLING CUTTING HEAD (SE6)
1. While locking the gear shaft by inserting the
attached bar into the upper holder and the gear
box, loosen and remove the hexagon bolt(left-
handed)
2. Fit the spacer attached to the head assembly
between the upper and lower holders. Then
screw in the cutting head to the gear shaft over
the holders. Hand-tighten it securely.
(1) Spacer
SE6
