RedMax CHT2250 - Parts Location; Specifications

US-3
CHT2250
U
S

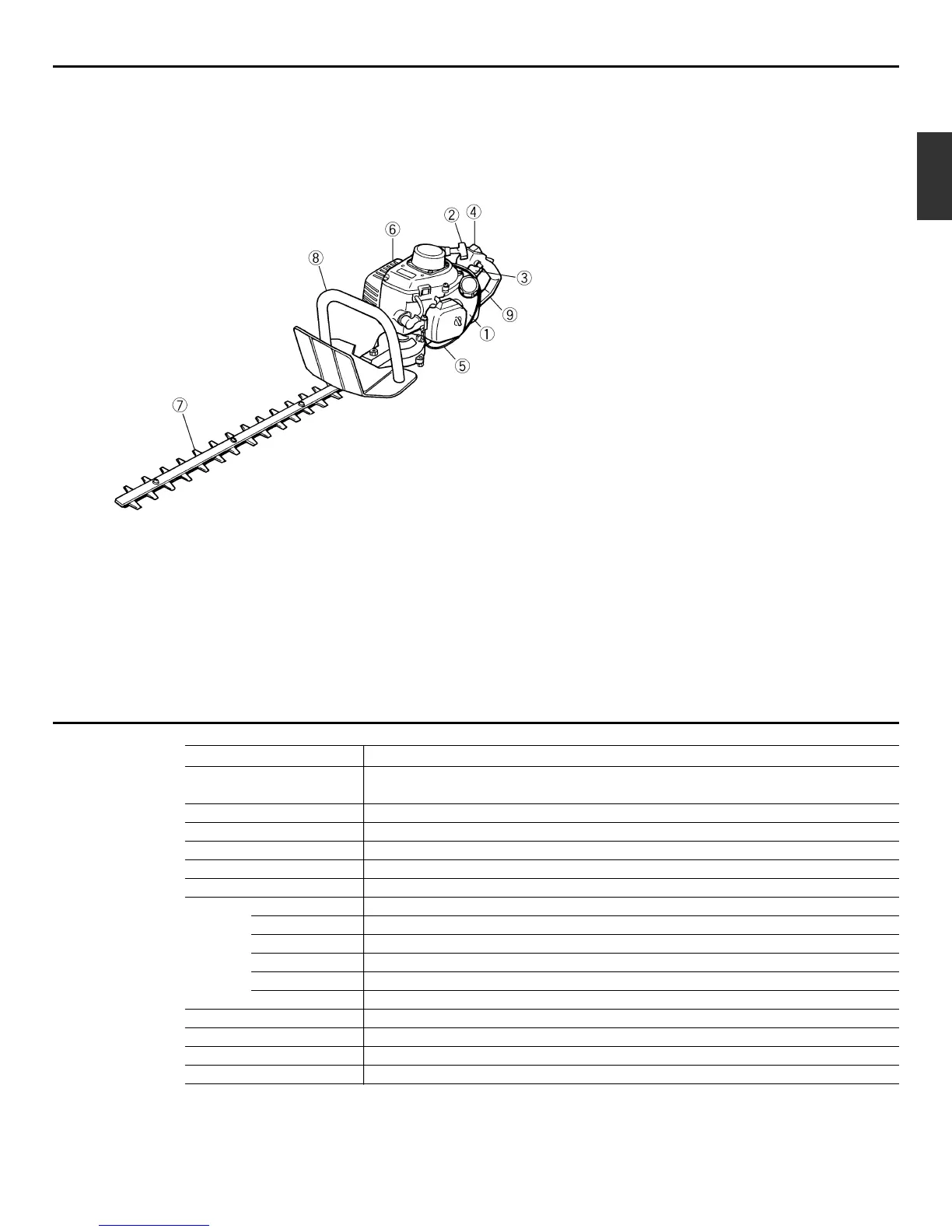

1. Parts location
1. Fuel tank
2. Starter
3. Throttle lever
4. Ignition switch
5. Throttle Cable
6. Muffler
7. Blade
8. Front handle
9. Rear handle
2. Specifications
Model CHT2250
Type Reciprocating
double-sided dual blades
Dry weight 4.6(kg)/10.1(lbs)
Blade size 550(mm)/22(in)
Blade pitch 35(mm)/1.38(in)
Transmission Centrifugal clutch, Cam-crank
Reduction ratio 4.25
Engine Type Air-cooled 2-stroke gasoline
Mode G23LH
Displacement 22.5(cm
3
)/1.37(cu-in)
Max. output 0.68Hp(0.51kW)at 6500/min
-
1
(rpm)
Idle speed 2800
±
200/min
-
1
(rpm)
Fuel mixture(Gasoline 50
:
Oil 1)(when using RedMax/ZENOAH genuine oil)
Carburetor Walbro Diaphragm type
Spark plug CHAMPION RCJ6Y
Fuel tank capacity 0.59(litter)/20.0(fl.oz)
Durability period 50(hrs.)
Specifications are subject to change without notice.
