This operator manual describes the RedMax Zero
Turn Rider. The rider is tted with a four-stroke
overhead valve engine.
Transmission from the engine is made via
belt-driven hydraulic pumps. Using the left and
right steering controls, the ow is regulated and
thereby the direction and speed.

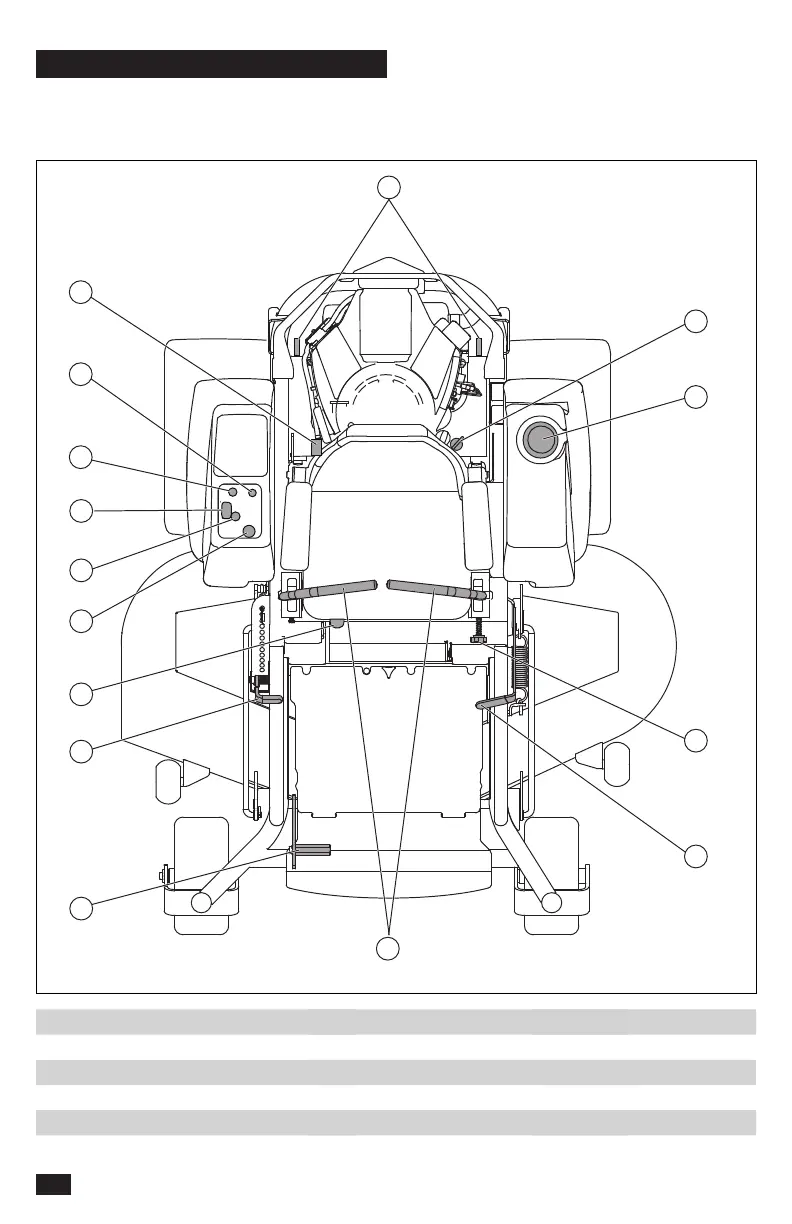

2
3
4
5
15
14
13
12
11
10
9
8
7
1
6
1. Motion control levers
2. Park brake
3. Tracking knob
4. Fuel tank
5. Fuel shut off
6. Hydro release
7. Fuses
8. Choke control
9. Ignition switch
10. Service meter
11. Throttle
12. Blade switch
13. Seat adjustment
14. Deck lift
15. Deck release pedal
12
