RedMax EBZ7100 - Set up

22

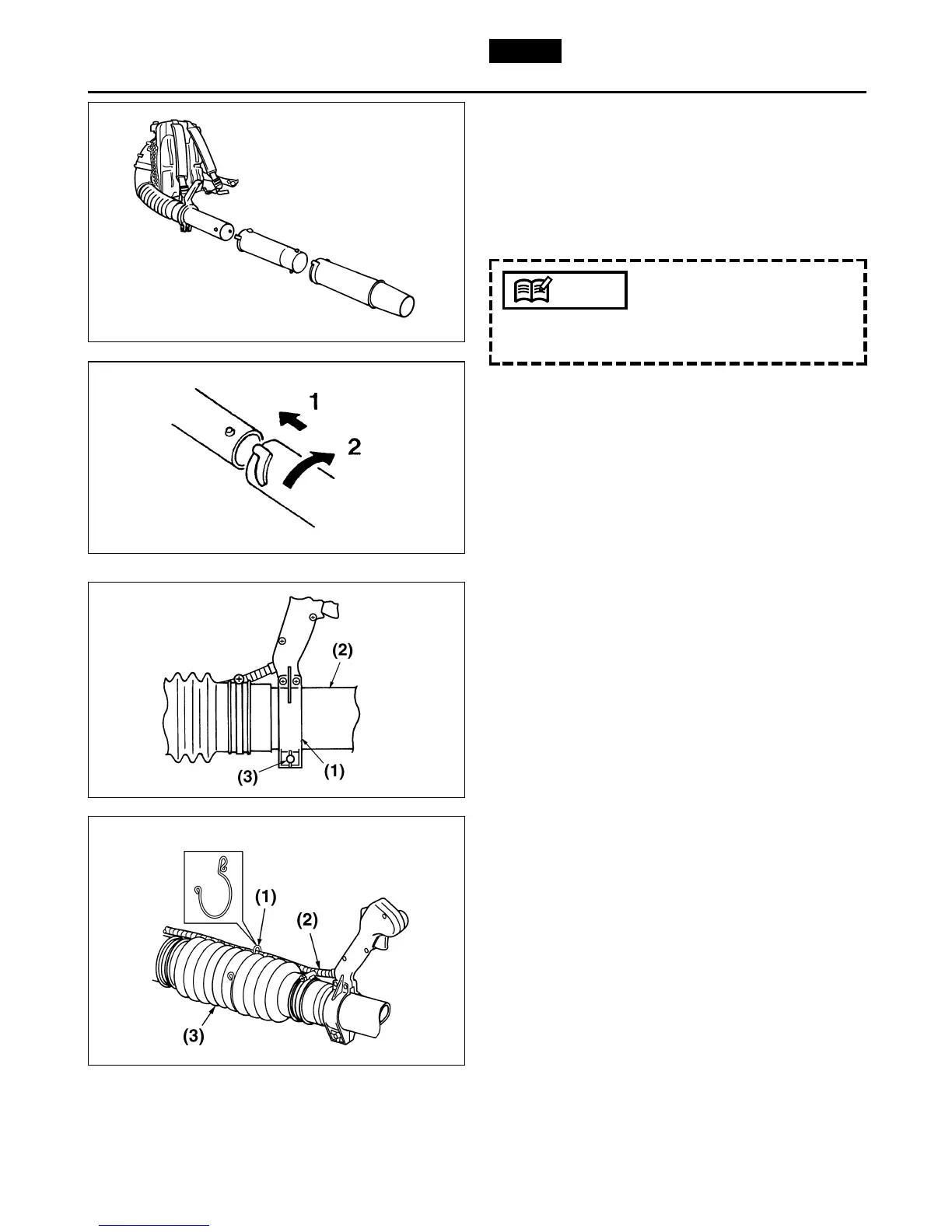

6. Set up
English
■ BLOWER TUBES
1. Connect the blower and swivel joint with flexible
hose. Clamp both ends of the flexible hose securely
with the hardware supplied with the unit.
2. Align the protrusion and the groove provided on the
tube ends and twist the tube until connection is
locked up.
A light lubricant may be used to ease assembly of
flexible pipe to blower elbow.
■ THROTTLE LEVER
[EBZ7100RH] [EBZ7100RH-CA]
• Set up the clamp to the swivel and tighten the screw
on the clamp.
(1) Clamp
(2) Swivel
(3) Screw
■ THROTTLE CABLE
[EBZ7100RH] [EBZ7100RH-CA]
• Use the clamp to fasten the colgate tube containing
the throttle cable and the power cable to the hose.
(1) Clamp
(2) Cable
(3) Hose
NOTE
F1
F2
F3 [EBZ7100RH]
[EBZ7100RH-CA]
F4 [EBZ7100RH] [EBZ7100RH-CA]
