RedMax EBZ7100 - Page 52

52
13. Parts List : EBZ7100/EBZ7100RH/EBZ7100-CA/EBZ7100RH-CA
Key# Part Number Description Q'ty
1 T1108-81450 BODY ASSY 1
2–SCREEN 1
3–VALVE 1
4–SPRING 1
5–SCREW 1
6–PIN 1
7–LEVER 1
8 1850-81490 BODY 1
9 1850-81520 COVER 1
10 1751-81510 PUMP 1
11 5500-81160 WASHER 1
12 1881-81140 SWIVEL 1
13 1751-81130 RING 1
14 4810-81410 GASKET 1
15 1065-81420 DIAPHRAGM 1
16 1850-81470 GASKET 1
17 848-HE0-81K0 DIAPHRAGM 1
18 1752-81110 SCREW 2
Key# Part Number Description Q'ty
19 5500-81120 BRACKET 1
20 1751-81180 NUT 1
21 1918-81170 SCREW 1
22 848-H00-80A0 RING, PACKING 1
23 1850-81530 SCREW 4
24 848-8J1-5700 JET #57 1
25 1751-81240 O-RING 1
26* – BODY 1
27* – VALVE ASSY 1
28 848-H18-0620 GASKET KIT 1
29 848-H18-0630 REBUILD KIT 1
[NOTE]
26*-BODY and 27*-VALVE ASSY are not supplied
as an individual part respectively, but supplied as a
CARBURETOR ASSY (P/NO. 848-H18-8100).

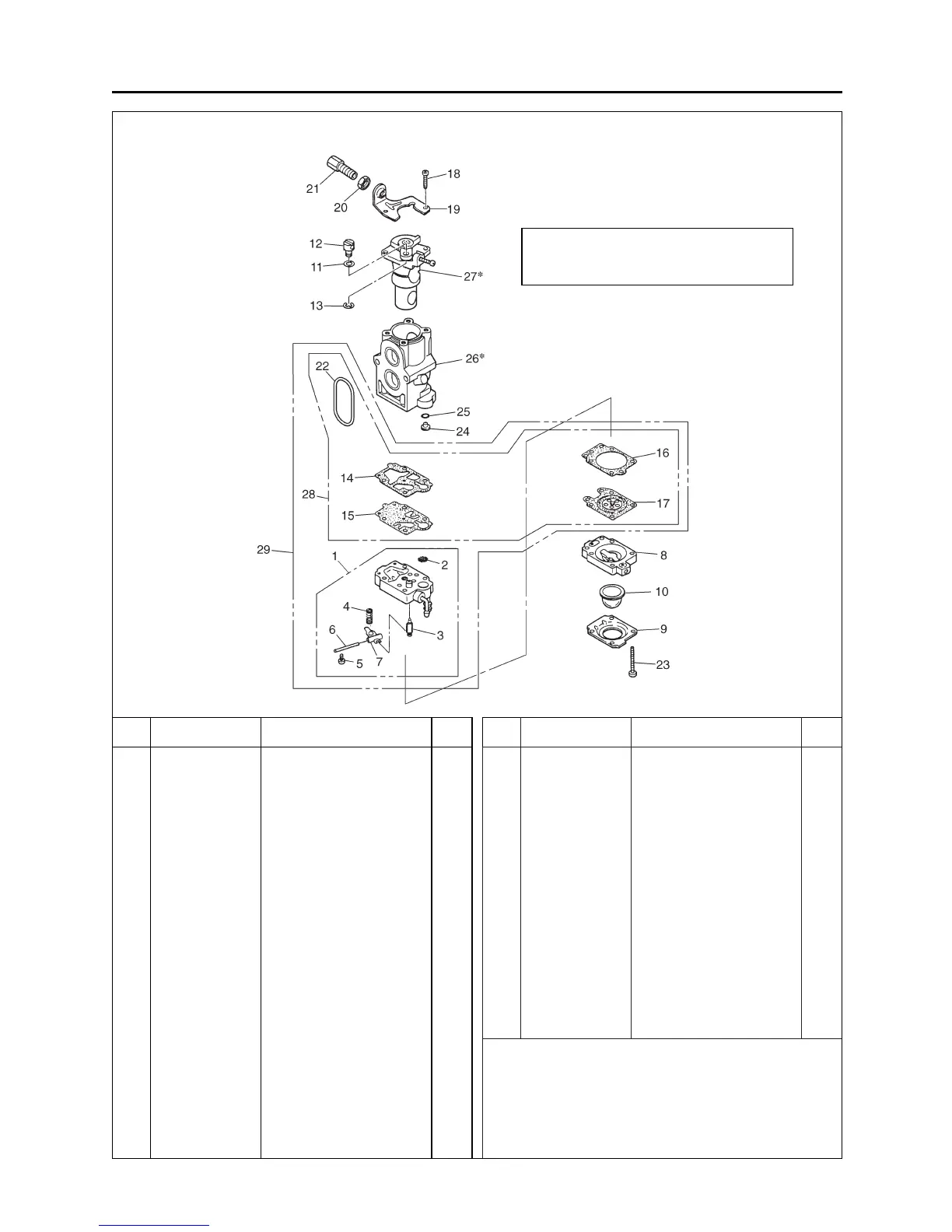

Fig.3 CARBURETOR COMPONENTS (S/N 70800101 and up)
CARBURETOR ASSY (WYA-81)
P/NO. 848-H18-8100
