RedMax EBZ9000 - Handle Adjustment and Assembly; Tube and Handle Assembly (EBZ9000 RH); Handle Position Adjustment

To assemble the tube and handle on
the product (EBZ9000RH)

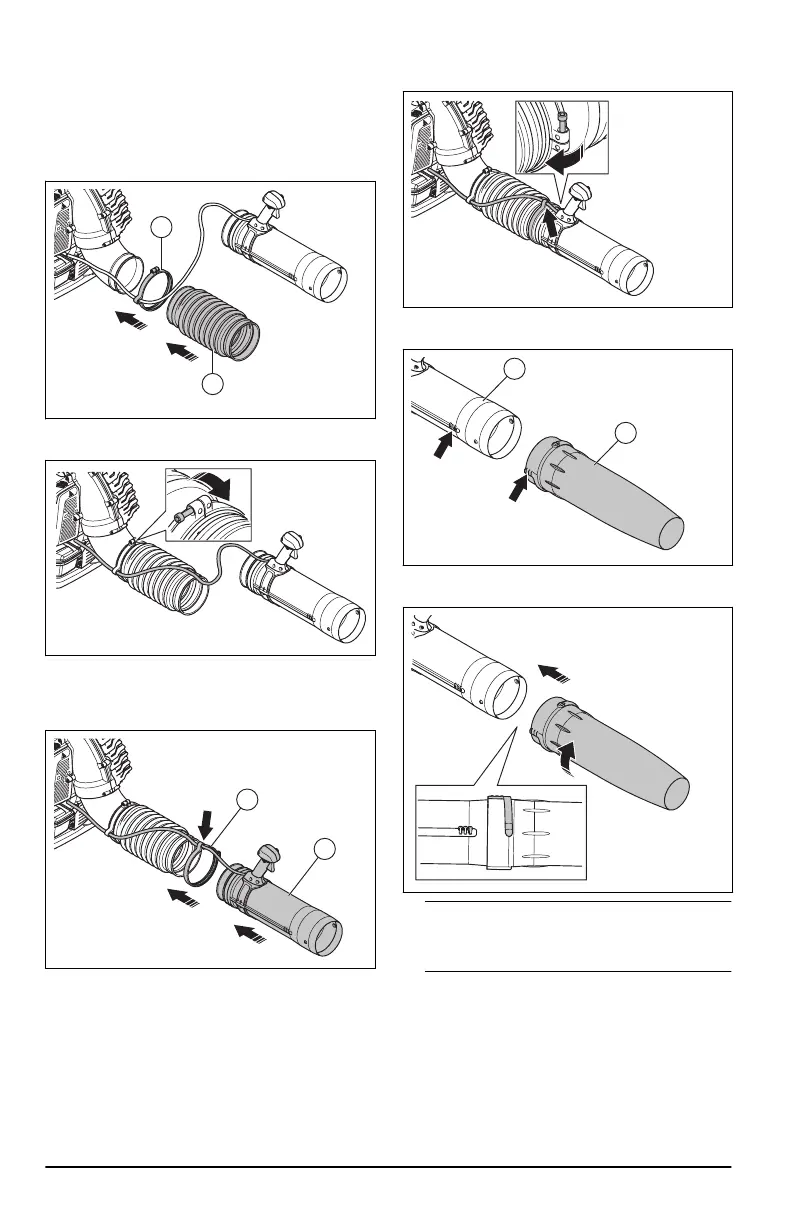

1. Use the clamp (A) to attach the flexible hose (B)
and the throttle cable to the the pipe angle. Make
sure that the throttle cable is placed in the groove
on the inside of the clamp.
A
B
2. Tighten the clamp with the screw. Push the
screw into the clamp when you tighten it.
3. Use the clamp (C) to attach the control pipe (D)
and the throttle cable to the flexible hose. Make
sure that the throttle cable is placed in the groove
on the inside of the clamp.
C
D
4. Tighten the clamp with the screw. Push the
screw into the clamp when you tighten it.
5. Align the marks of the 3 lines on the standard
nozzle (E) and on the control pipe (D).
D
E
6. Push the standard nozzle onto the control pipe.
Turn the standard nozzle to lock it in position.
Note:
You can lubricate the standard nozzle
and the control pipe to make them easier to
assemble.
To adjust the handle position
A correctly adjusted handle and product makes
operation easier.
10
2318 - 002 - 17.11.2023
