RedMax EBZ9000 - Assembly Procedures; Tube and Handle Assembly (EBZ9000)

Assembly
Introduction
WARNING: Read and understand
the safety chapter before you assemble
the product.

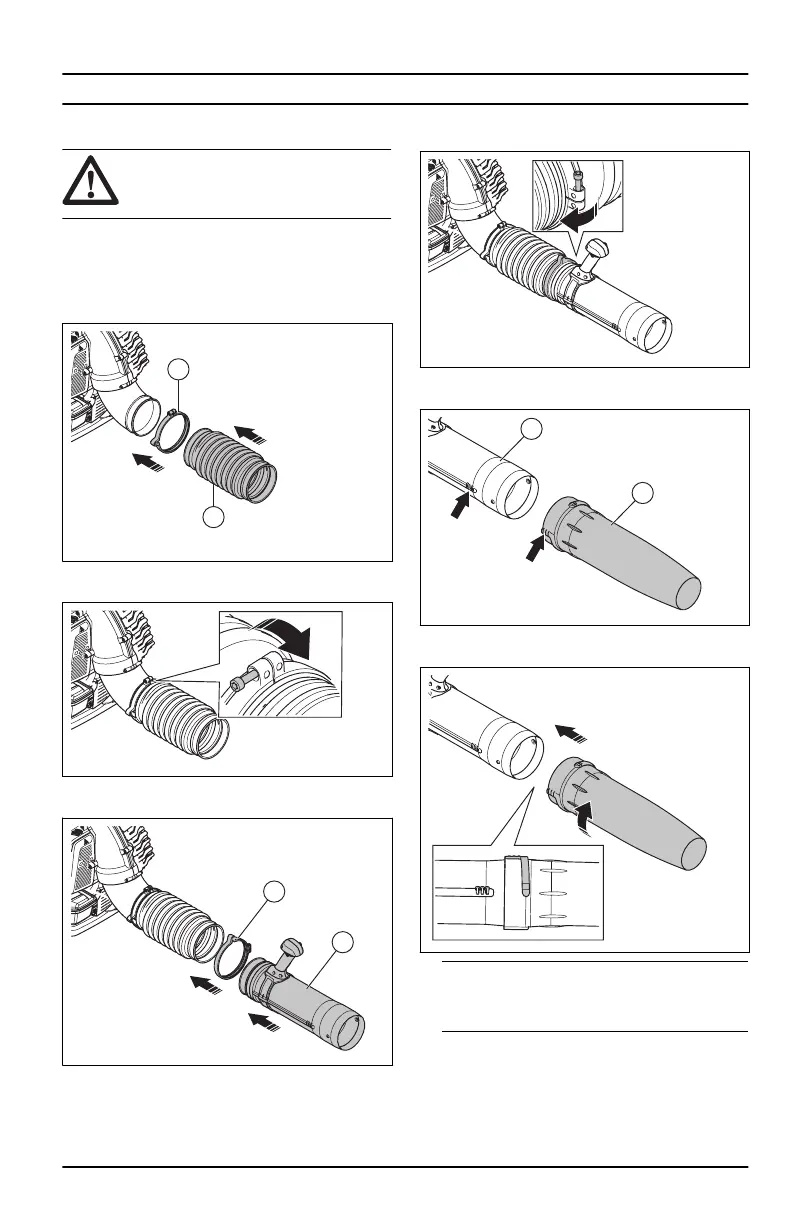

To assemble the tube and handle on
the product (EBZ9000)
1. Use the clamp (A) to attach the flexible hose (B)
to the pipe angle.
A
B
2. Tighten the clamp with the screw. Push the
screw into the clamp when you tighten it.
3. Use the clamp (C) to attach the control pipe (D)
to the flexible hose.
C
D
4. Tighten the clamp with the screw. Push the
screw into the clamp when you tighten it.
5. Align the marks of the 3 lines on the standard
nozzle (E) and on the control pipe (D).
D
E
6. Push the standard nozzle onto the control pipe.
Turn the standard nozzle to lock it in position.
Note:
You can lubricate the standard nozzle
and the control pipe to make them easier to
assemble.
2318 - 002 - 17.11.2023 9
