RedMax G3100T - Parts Location; Specifications

4

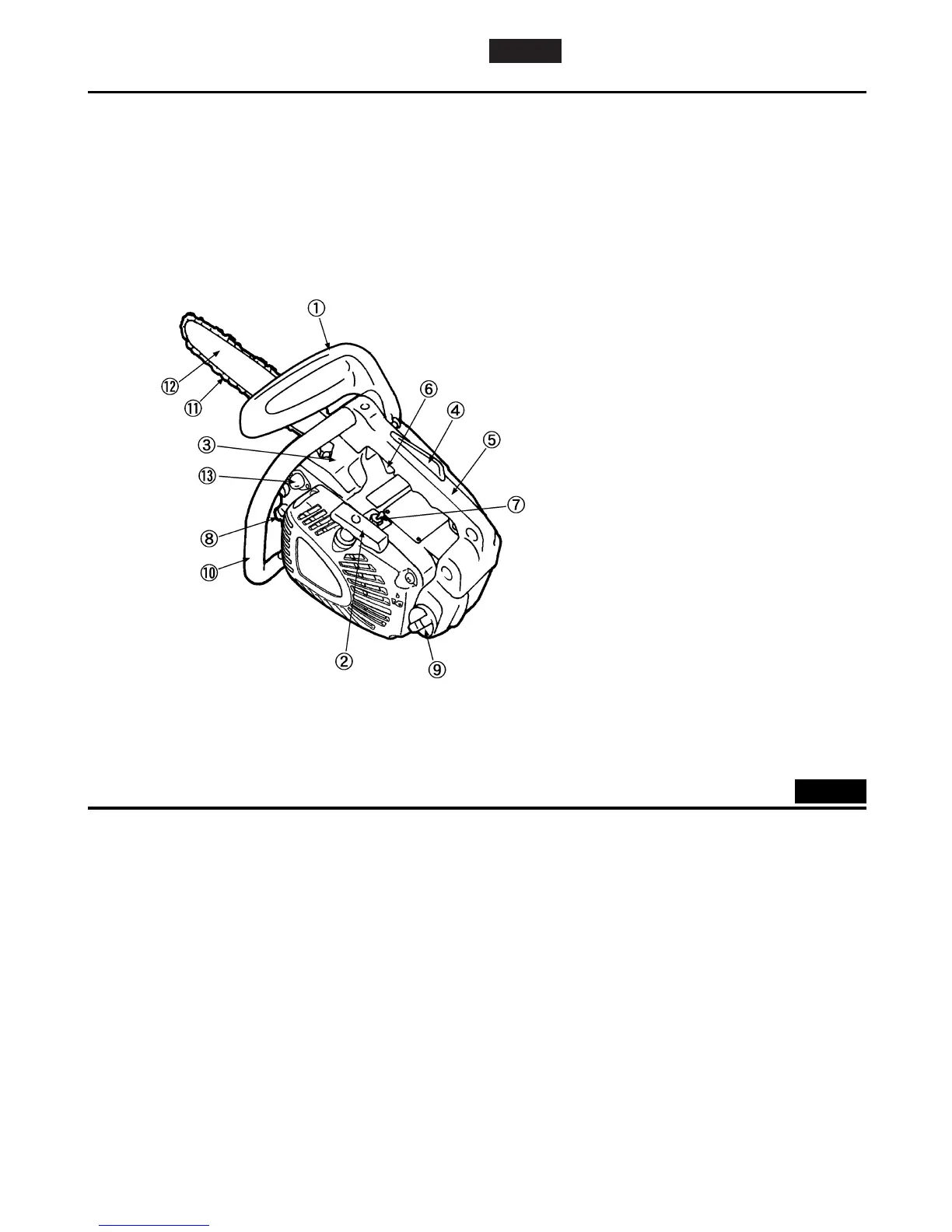

1. Parts location
English
English
1. Front guard
2. Starter knob
3. Air cleaner
4. Throttle interlock
5. Right handle
6. Throttle lever
7. Ignition switch
8. Fuel tank
9. Oil tank
10. Left handle
11. Saw chain
12. Guide Bar
13. Primer Bulb
2. Specifications
■ G3100T
Power unit :
Displacement ················································································································ 30.1(1.9) cc(cu. in.)
Fuel ··································································································· Mixture(Gasoline 50 : Two-cycle oil 1)
(when using RedMax/ZENOAH genuine oil)
Fuel tank capacity ·········································································································· 220(0.46) cc(pints)
Chain oil ·················································································································· Motor oil SAE #10W-30
Oil tank capacity ············································································································· 130(0.27) cc(pints)
Carburetor ·························································································································· Diaphragm type
Ignition system ···························································································································· Solid-state
Spark plug ····················································································································· Champion RCJ-8Y
Oil feeding system ··········································································································· Mechanical pump
Sprocket Teeth x Pitch ····························································································· 7T x 9.38(3/8) mm(in.)
Dimensions (L x W x H)······························································· 265 x 245 x 230(10.6 x 9.8 x 9.2) mm(in.)
Dry weight : Power unit only ································································································ 3.5(7.8) kg(lbs)
Cutting head :
Guide bar : Type-Size ················································································ Sprocket nose – 35(14) cm(in.)
Saw chain : Type – Pitch – Gauge ···································· Oregon 91SG – 9.375(3/8) –1.25(.050) mm(in.)
Specifications are subject to change without notice.
