RedMax G621AVS - Page 28

Q'TY
Key# PART NUMBER DESCRIPTION NOTE
/UNIT
1 3369-81000 Carburetor assy 1
2 3306-81380 Screen 1
3 3350-81130 Cover 1
4 3350-81140 Cover 1
5 3366-81151 Shaft assy 1
6 3366-81340 Valve 1
7 3356-81171 Shaft assy 1
8 2629-81180 Valve 1
9 1488-81190 Stop 1
10 3356-81310 Valve 1
11 3350-81220 Ball 1
12 3350-81230 Gasket 1 K2
13 3350-81240 Gasket 1 K2
14 3350-81250 Lever 1
15 2618-81260 Diaphragm 1 K3
16 3350-81270 Diaphragm 1 K3
17 2880-81470 Screw 3
18 3310-81240 Screw 1
19 1491-81130 Screw 1
20 3310-81250 Pin 1
21 2670-81430 Screw 1
22 3310-81351 Screw assy 4
23 3350-81350 Spring 1
24 3415-81490 Cap limiter 2
25 3350-81370 Spring 1
26 3350-81380 Spring 1
27 3350-81391 Spring 1
28 3369-81410 Needle (H) 1
29 3369-81420 Needle (L) 1
30 1480-81420 Plug 1
31 3356-81430 Plug 1
Q'TY
Key# PART NUMBER DESCRIPTION NOTE
/UNIT
1 3320-91140 Wrench 1
2 2670-91150 Screwdriver 1
3 3356-97110 Bar protector 1 OP, 18”
4 3665-97110 Bar protector 1 OP, 20” & 24”
5 3369-93110 Owners manual 1

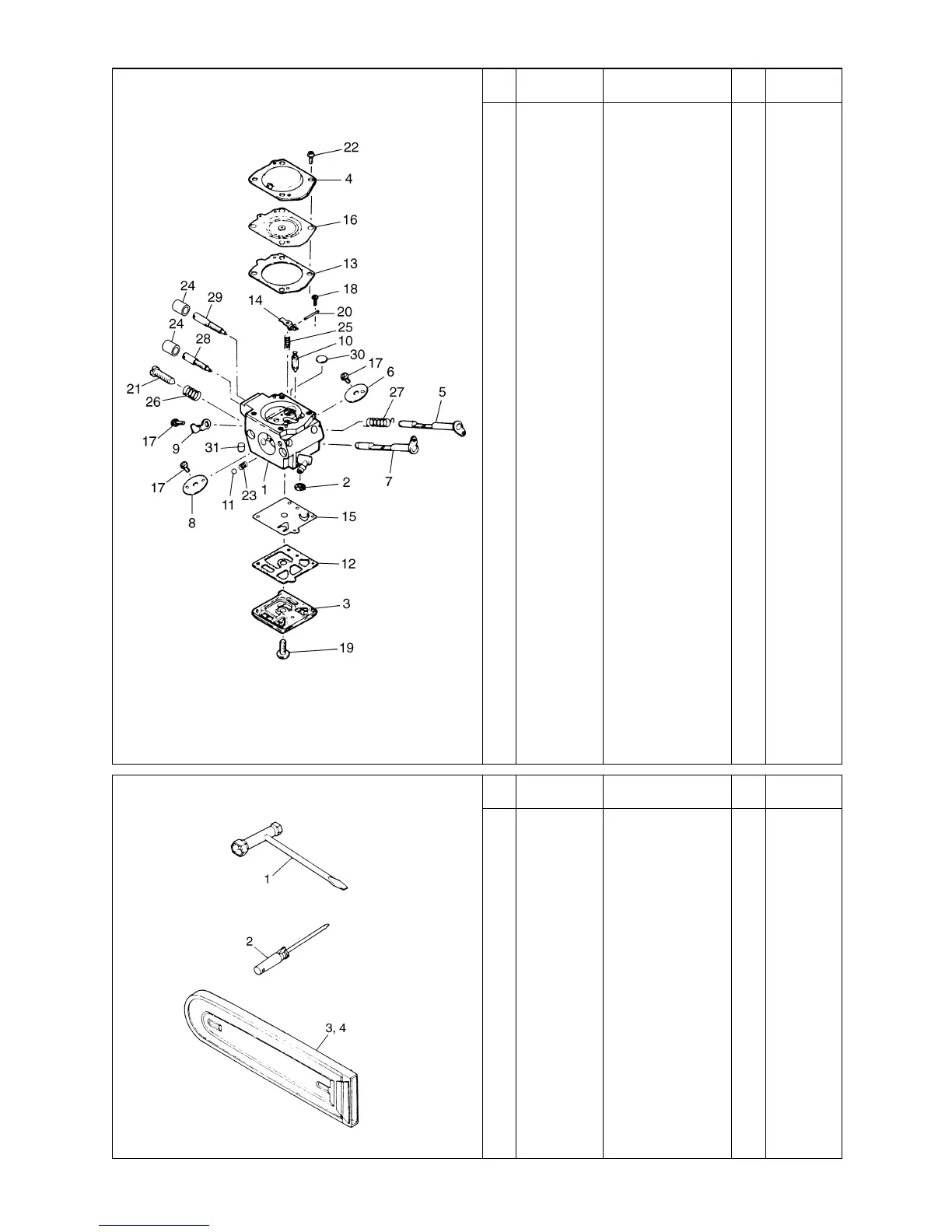

Fig.B CARBBURETOR
Fig.C ACCESSORIES
 28 
G621AVS
