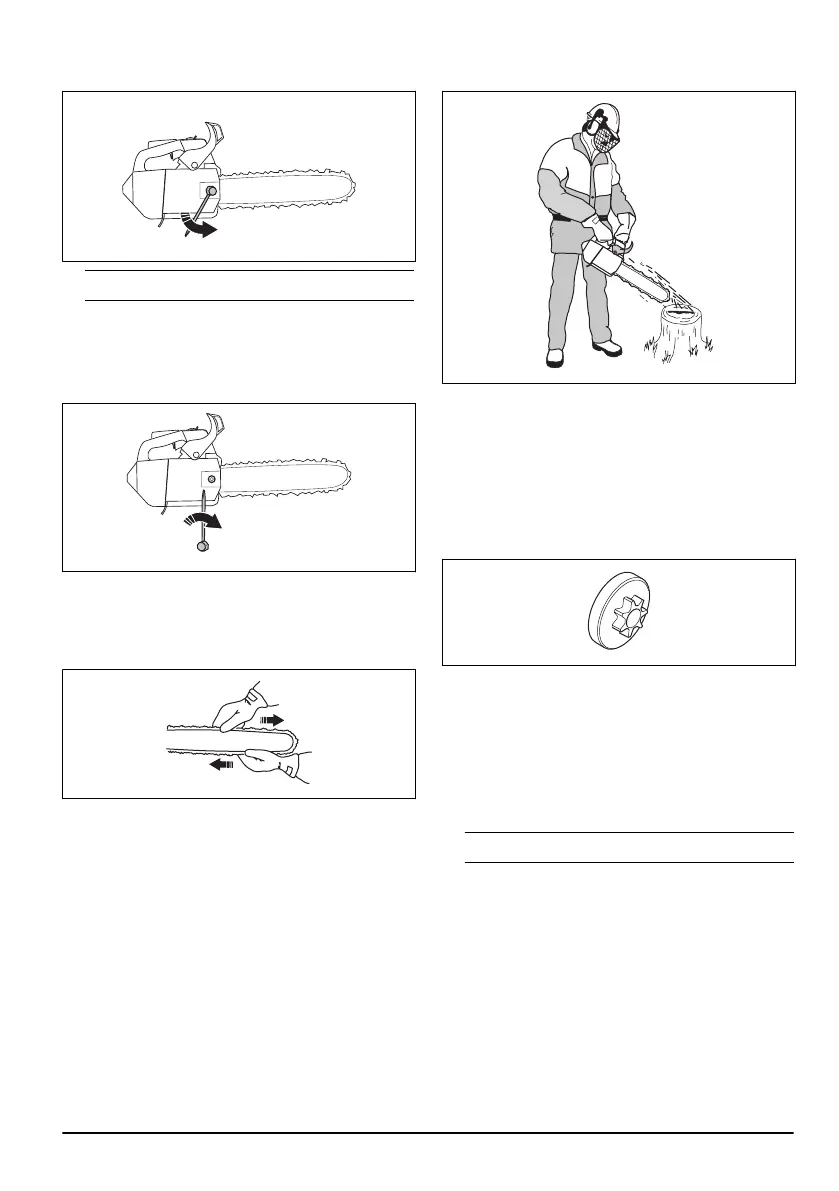

1. Loosen the bar nuts that hold the clutch cover/chain
brake. Use a wrench.
Note: Some models have only one bar nut.
2. Tighten the bar nuts by hand as tightly as you can.
3. Lift the front of the guide bar and turn the chain
tensioning screw. Use a wrench.
4. Tighten the saw chain until it is tight against the
guide bar but still can move easily.
5. Tighten the bar nuts using the wrench and lift the
front of the guide bar at the same time.
6. Make sure you can pull the saw chain around freely
by hand and that it does not hang from the guide
bar.
Refer to
Product overview on page 2
for the position of
the chain tensioning screw on your product.
To do a check of the saw chain
lubrication
1. Start the product and let it operate at ¾ throttle.
2. Hold the guide bar approximately 20 cm/8 in above a
surface of light color.
3. If the saw chain lubrication is correct, you see a clear
line of oil on the surface after 1 minute.
4. If the saw chain lubrication does not operate
correctly, do a check of the guide bar. Refer to
To do
a check of the guide bar on page 26
for
instructions. Speak to your servicing dealer if the
maintenance steps does not help.
To do a check of the spur sprocket
The clutch drum has a spur sprocket that is welded on
the clutch drum.
• Regularly do a visual check of the degree of wear on
the spur sprocket. Replace the clutch drum with the
spur sprocket if there is too much wear.
To lubricate the needle bearing
1. Pull the front hand guard rearward to disengage the
chain brake.
2. Loosen the bar nuts and remove the clutch cover.
Note:
Some models have only one bar nut.
3. Put the product on a stable surface with the clutch
drum up.
995 - 003 - 30.01.2019
25
