14 
Attach the adequate accessories, respectively for
blower operation and dust-collecting operation.
• Use the gloves during operation.
• In adjustment of the blower/dust collector or in
other types of operation, be sure to stop the
engine and detach the spark plug cap.
• Never start operation unless this machine is
completely assembled.

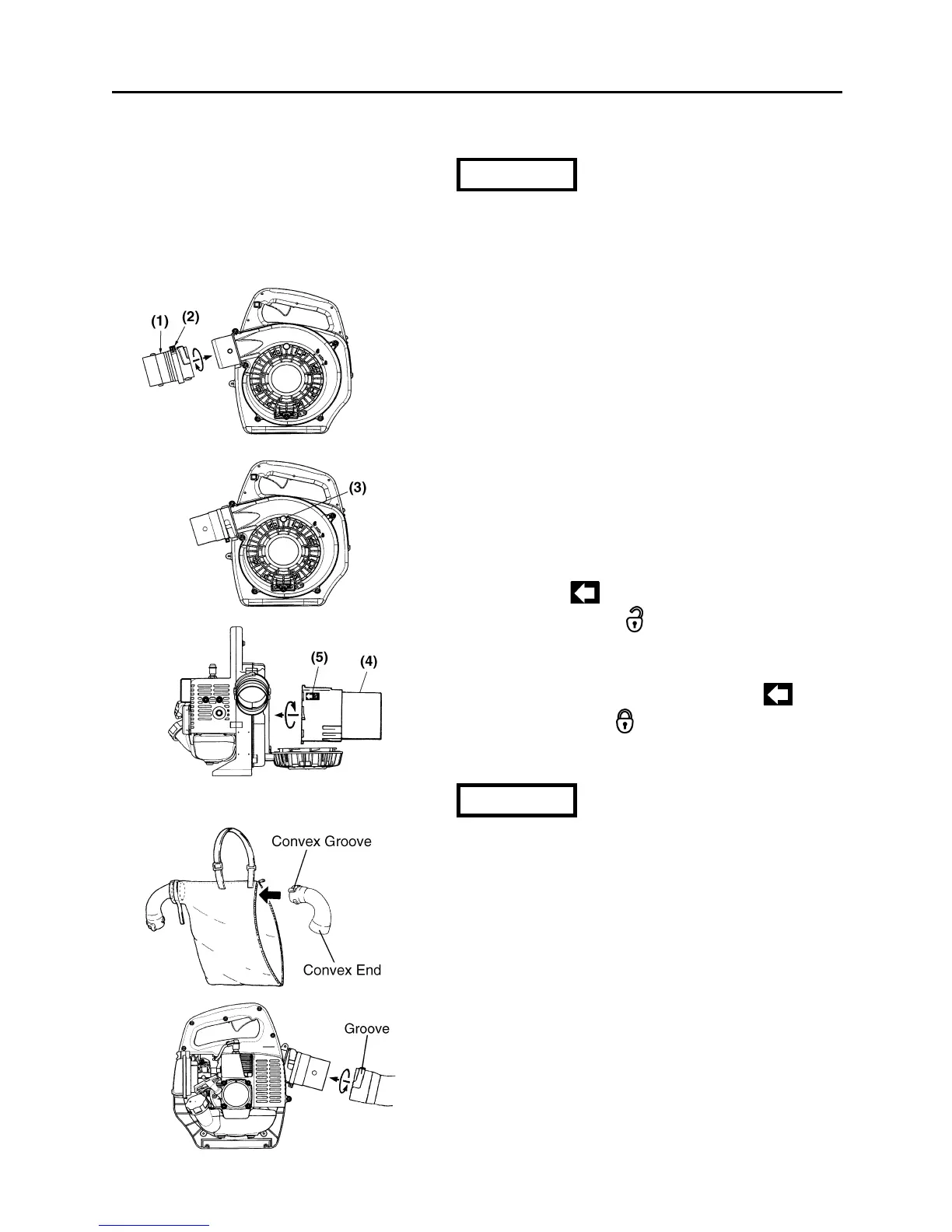

■ MOUNTING THE DUST-COLLECTING KIT
1)
1. Fit the extension pipe (1) groove with main unit
port projection, turn to mount the pipe to the
main unit.
2. Tighten the clamp screw (2) securely.
2) Installing Vacuum pipe (nozzle)
1. Loosen the screw (3), and open the suction
port cover.
2. Align the (5) indicated on the vacuum
pipe (4) with the indicated on the blower.
Then insert the vacuum pipe (4) into the
blower.
3. Turn the vacuum pipe (4) until the (5) is
aligned with the indicated on the blower to
lock the vacuum pipe.
Hold the bottom of the vacuum pipe when
turning the vacuum pipe to install or remove it.
3) Installing Elbow and Dust Bag
1. Open the fastener of the dust bag.
2. Insert the elbow convex groove into the dust
bag elbow opening.
Continue to push the elbow convex groove until
the convex hits against the dust bag opening.
Close the dust bag fastener.
3. Fit the elbow groove with discharge port
projection, turn the elbow and mount the dust
bag to the main unit.
IMPORTANT
NOTE
Optional vacuum kit usage (Preparing for use)
