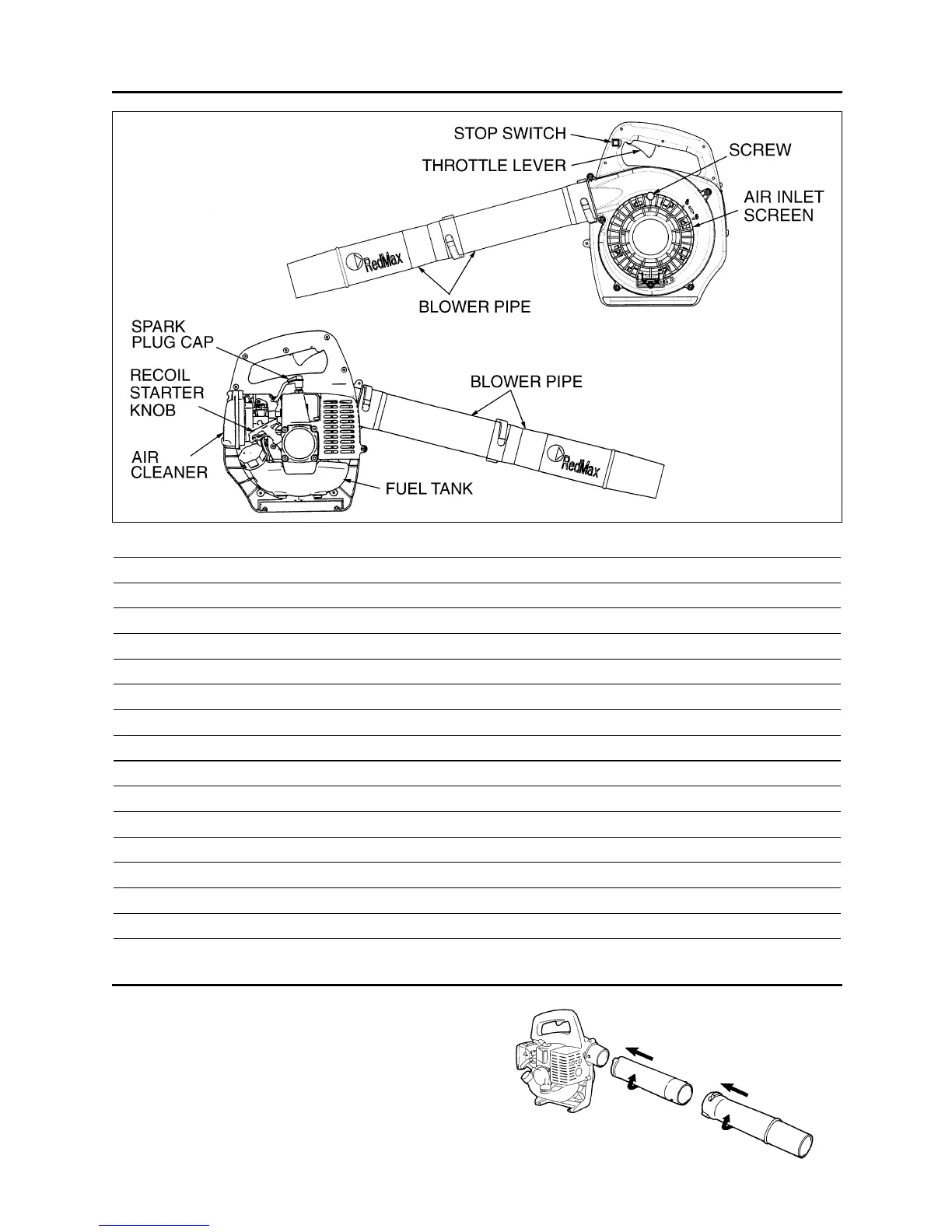

Parts Location & Specifications
Assembly
■ BLOWER PIPE
• Align groove in blower pipe with projection
on blower housing (or another blower pipe)
and slide the pipe onto the blower housing
(or another blower pipe).
Rotate the pipe clockwise to lock it into
place.
MODEL HBZ2600
Dimensions ( L x W x H ) mm ( in ) 327 x 268 x 360 (12.9 x 10.5 x 14.2)
Dry Weight (without tube and nozzle) kg ( ibs ) 3.8 (8.4)
Fuel Tank Capacity liter ( fl. oz ) 0.65 (22.0)
Engine Type Air cooled 2-cycle gasoline engine
Piston Displacement cm
3
( cu. in ) 25.4 (1.60)
Durability Period 300h
Carburetor Walbro Diaphragm type
Ignition System CDI
Spark Plug NGK CMR7A
Muffler Spark arrester equipped
Operating Engine Speed rpm 2.800 ~ 7.890
Idle Speed rpm 2.800
Max. Air Volume cu. m/min ( cfm ) 10.4 (367)
Max. Air Velocity m/sec ( mph ) 70 (157)
Noise Level (ANSI B175.2-2000) db ( A ) 69
