FR-3
HEZ230S
F
R

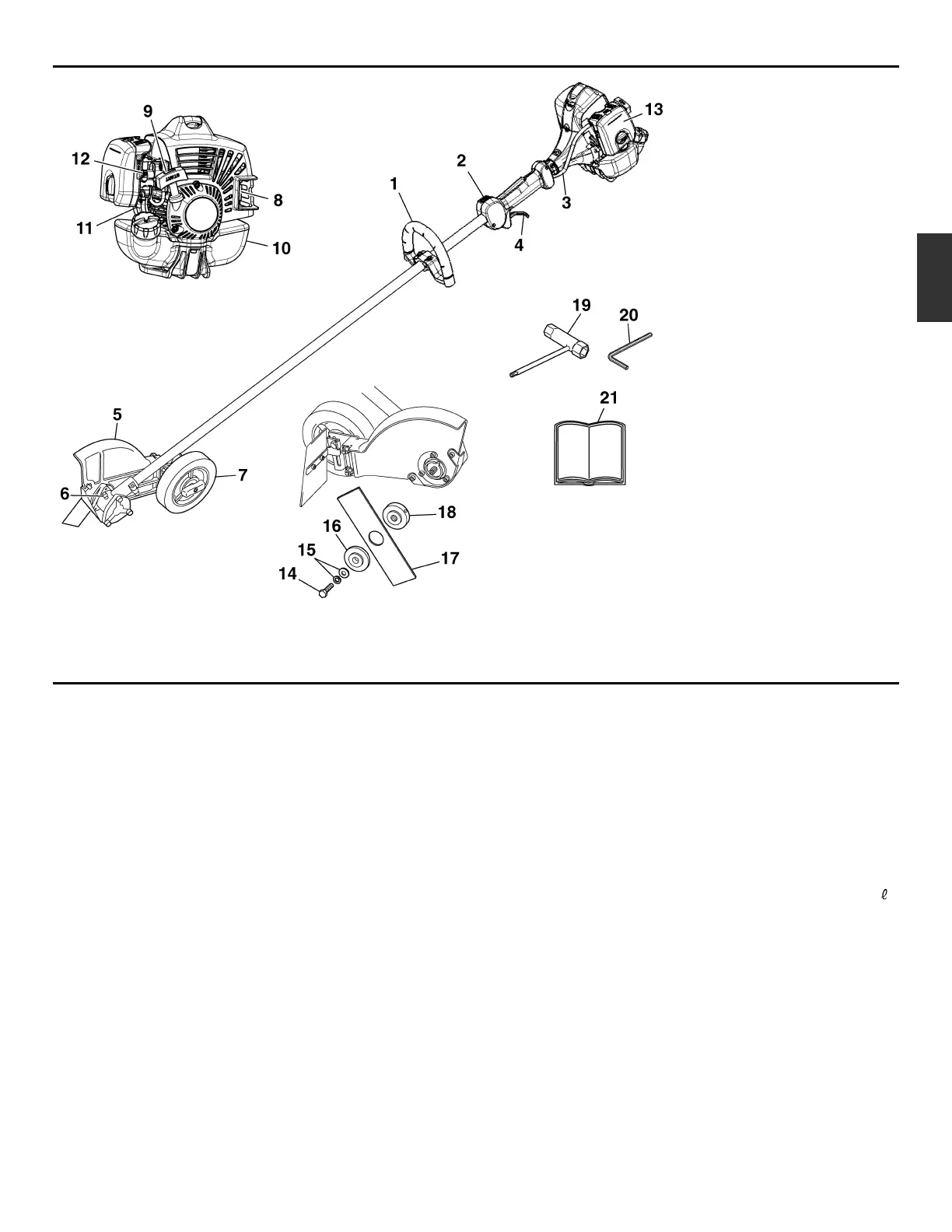

1. Emplacement des pieces
2. Fiche technique
1. Poignée
2. Interrupteur d’arrêt
3. Câble d’accélérateur
4. Manette d’accélérateur
5. Garde-lame
6. Bouchon du trou de
graissage
7. Roues
8. Pare-étincelles
9. Poignée de démarrage
10. Réservoir de carburant
11. Vidange d’air
12. Levier d’étrangleur
13. Capot du filtre à air
14. Vis de blocage
15. Rondelle
16. Flasque d’appui
17. Lame
18. Rondelle d’entraînement
19. Clé combinée
20. Clé allen
21. Mode d'emploi
■ HEZ230S
Dimensions totales (L x L x H) ································································································· 1759 x 231 x 315 mm
Poids à sec sans acc. ······································································································································6,36 kg
Moteur Type········································································································· 2 temps à essence refroidi par air
Modèle ··············································································································································· GZ22S
Cylindrée ··········································································································································22,5 cm
3
Puissance maximale······················································································· 1,0 CV (0,75kW) à 8000 t/mn
Vitesse de ralenti··················································································································· 3000±200 t/mn
Carburant ····································································································· Mélange (essence 50 : huile 1)
(Lors de l’utilisation de la véritable huile RedMax)
Carburateur················································································································· Walbro à diaphragme
Bougie d’allumage ················································································································· NGK BPMR8Y
Contenance du réservoir de carburant ············································································································· 0,64
Transmission················· Embrayage centrifuge, arbre de transmission rigide, engrenage conique (angle : 90 deg.)
Rapport de réduction····························································································································· 2,538 (33,13)
Sens de rotation de la tête de coupe············································ Sens des aiguilles d’une montre (Vue de la lame)
Période de durabilité································································································································· 300 heures
Longueur de lame···········································································································································200 mm
Utiliser pour ··············································································································Couper les bordures de pelouse
Standard Accessories
Lunettes de sécurité ······························································································································ 1 pc.
Trousse à outils ····································································································································· 1 pc.
Ces spécifications peuvent être modifiées sans préavis.
