1. Parts location
■ TRZ230S
Overall size(LxWxH) ······················································································70.9(1802)x9.3(237)x13.7(348) in(mm)
Dry weight·························· 9.8 lbs (4.4kg) (11.1 lbs (5.0 kg) Including trimmer head and cutting attachment guard)
Engine Type·················································································································· Air-cooled 2-stroke gasoline
Model ················································································································································· GZ22S
Displacement ·················································································································· 1.4 cu-in (22.5cm
3
)
Max. output ··························································································· 1.0 Hp (0.75 kW)at 8500/min
-1
(rpm)
Idle speed····················································································································3000 ± 200/min
-1
(rpm)
Fuel ·················································································································· Mixture (Gasoline 50 : Oil 1)
(when using RedMax genuine oil)
Carburetor ································································································································ Butterfly type
Spark plug ····························································································································· NGK BPMR8Y
Fuel tank capacity··························································································································· 21.6 fl.oz (0.64 )
Transmission········································································································ Centrifugal clutch, Rigid driveshaft
Reduction ratio··················································································································································· 1.462
Cutting head rotating direction·············································································· Counter-clockwise(Operator view)
Standard Accessories
Trimmer head (PT104plus) ··················································································································· 1 pc.
Cutting attachment guard ······················································································································ 1 pc.
Drive disc··············································································································································· 1 pc.
Spacer ··················································································································································· 1 pc.
Locking pin ············································································································································ 1 pc.
Combination spanner ···························································································································· 1 pc.
Screw ···················································································································································· 2 pc.
Operator's manual································································································································· 1 pc.
Specifications are subject to change without notice.
1
2
3
4
13
15
5
9
7
6
8
20
22
18
21
19
9
7
8
16
17
12
10
11
14

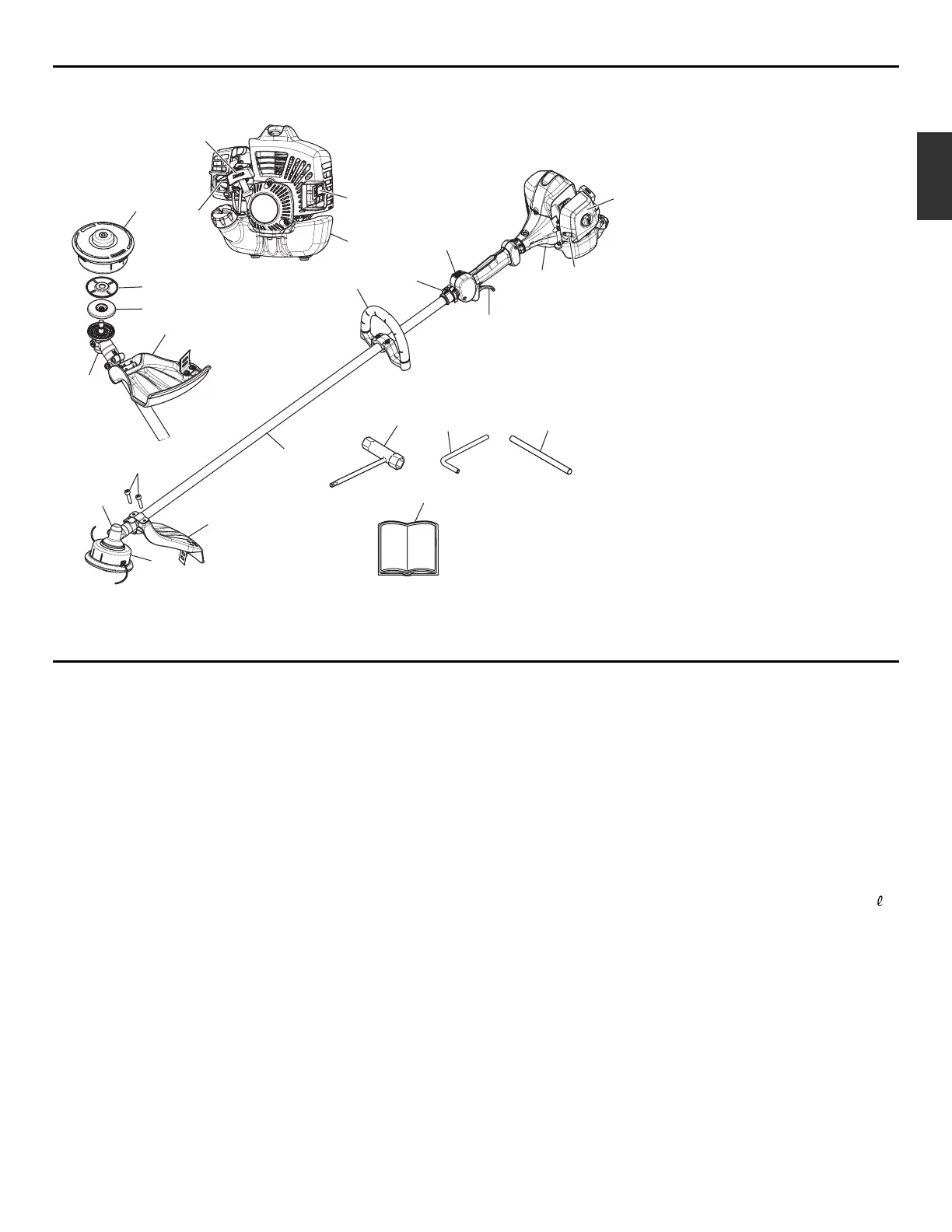

1. Loop handle
2. Suspention point
3. Stop switch
4. Throttle cable
5. Throttle trigger
6. Shaft tube
7. Cutting attachment guard
8. Trimmer head
9. Bevel gear
10. Spark arrester
11. Starter knob
12. Fuel tank
13. Air purge
14. Choke lever
15. Air cleaner cover
16. Drive disc
17. Spacer
18. Combination spanner
19. Allen key
20. Locking pin
21. Screws
22. Operator's manual
