These can result from toilets being flushed or
taps being turned on and off.
When this happens your showering
temperature will be held within a controlled
band, provided that the minimum pressure
required by the shower is maintained (page.4)
If the water pressure falls below the minimum
pressure required, it is likely that the pressure
switch will turn off the power to the heating
elements, resulting in a cold shower.
DO NOT
place items such as soap, shampoo
or other such bottles on top of the unit.
Liquid could leak through the joint between
the cover and backplate, and possibly damage
the sealing rubber.
WARNING:
ALL WIRING AND INSTALLATION
MUST BE SUPERVISED BY A
SUITABLY QUALIFIED PERSON.
DO NOT INSTALL THIS SHOWER
WHERE IT MAY BE SUBJECTED TO
FREEZING CONDITIONS.
We recommend that the installation is done in
the following sequence.
a. Fixing the shower to the wall
b. Electrical connections
c. Plumbing

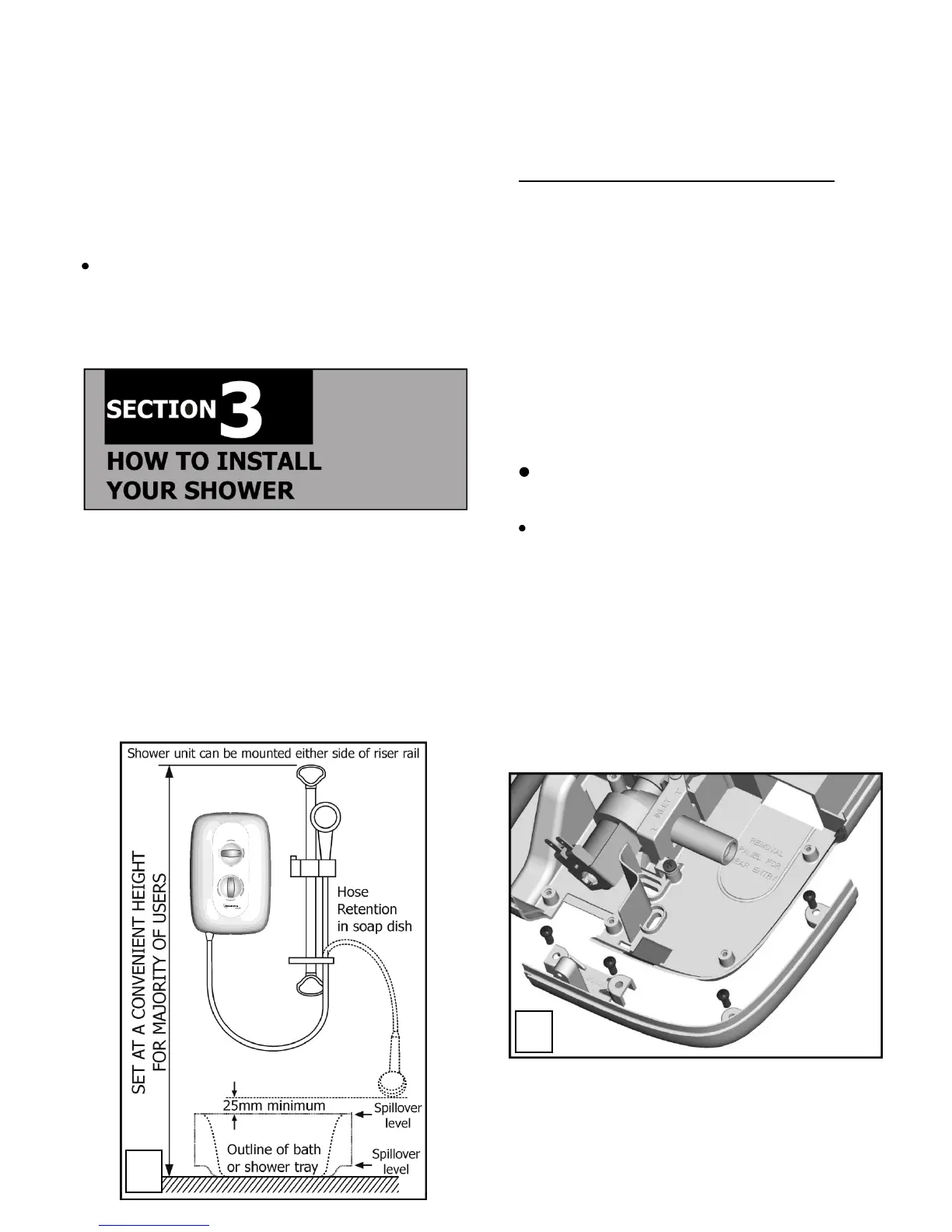

a. FIXING THE SHOWER TO THE WALL
1. Position the riser rail at a convenient height
for majority of users (fig.1) and mark its
position (see fig.9 for accessory details).
2. Position the heater so that the showerhead
cannot be immersed in the bath or shower
tray when hanging down.
Choose a flat piece of wall to avoid the
possibility of distorting the backplate thus
making the front cover a poor fit.
3. Adjust the position to get the most
convenient arrangement taking the following
into account.
DO NOT MOUNT THE UNIT IN
THE DIRECT HANDSET SPRAY.
The handset must not be able to come into
contact with used water in the cubicle, bath
or basin. If it can, even after the hose has
been retained by the soap-dish (fig.9),
a vacuum breaker must be fitted.
4. Fix the riser rail with screws provided (fig.9)
5. Remove the front cover by undoing the
retaining screws at the top and bottom of
the unit and lifting the cover off.
6. Remove the detachable corner section by
undoing the 4 x fixing screws (fig.2).
7. Decide the position of the electrical cable
and cold water pipe into the unit.
If bottom or side pipe entry are chosen, cut
away the walls in the detachable corner
section and backplate if applicable (fig.3 &
4a/b).
