Operation Instructions Assemble the unit
Note: Ensure that the handheld vacuum cleaner is not connected to the charger
before assembling the Metal tube.
1. take out of handheld vacuum
cleaner, metal tube and floor brush.
2.Connect the floor brush with the
extended tube.
Please insert the extended tube into the
floor brush, You will hear the“click”when
the extended tube is assembled rightly.
3.Connect the floor brush with the
extended tube.
Please insert the extended tube into the
floor brush,You will hear the“click”when
the extended tube is assembled rightly.
Use the handheld vacuum cleaner
Note: Please take out of the charger before using the vacuum cleaner. If the
vacuum
cleaner is charging or low battery status, the vacuum cleaner will not work.
1.The handheld vacuum cleaner can be used directly. The combined crevice nozzle
can be used with the handheld vacuum cleaner directly. If you have the connec-
tion converter, it can be connected with your other suitable brush.

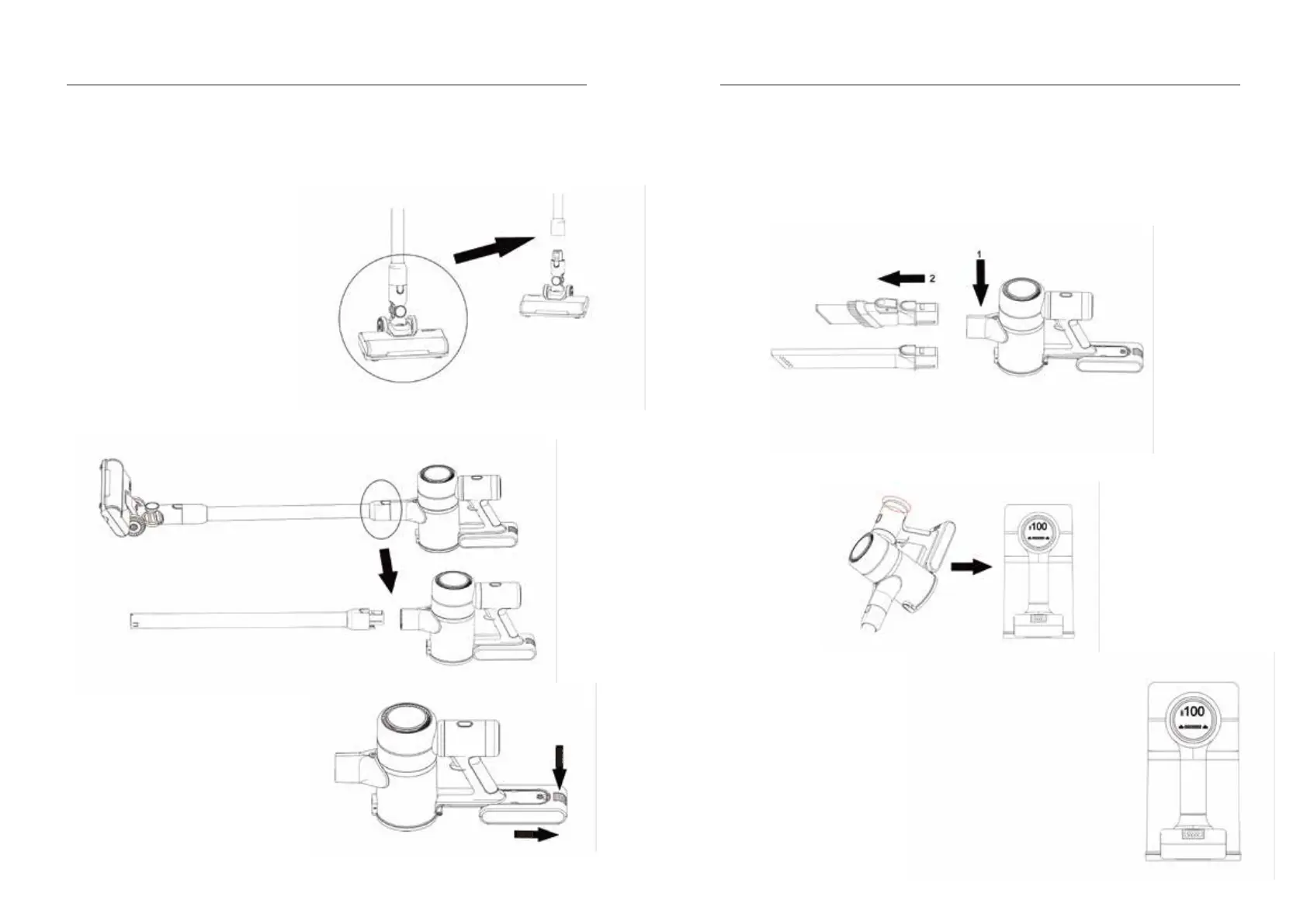

Assemble the battery
How to install and remove the battery as
shown in the picture.It is necessary to
align the buckle on the battery pack with
the vacuum cleaner. After the groove on
the corresponding position, push the
electric motor inward. The battery pack
is installed when you hear a click. When
taking out the battery pack, press and
hold the button parallel to the outside
Pull to remove the battery pack easily.
Assemble the battery Battery status indicator
2. Press the speed control button to change the speed of the vacuum.the vacuum
degree will be automatically adjusted according to the size of particles in AUTO
mode. the vacuum cleaner has three speed adjustment modes-------Auto mode
,Low speed mode and High speed mode.
Color of light with different battery electric
quantity while charging :
0-39% shows red;
40%-74% shows purple;
75%-100% shows blue;
The light goes off while it is fully charged;
Color of light with different battery electric
quantity while working:
100%-75% shows blue;
74%-40% shows purple;
39%-0 shows red;
Note:The light shows flashing red while the
battery electric quantity is less 10%
