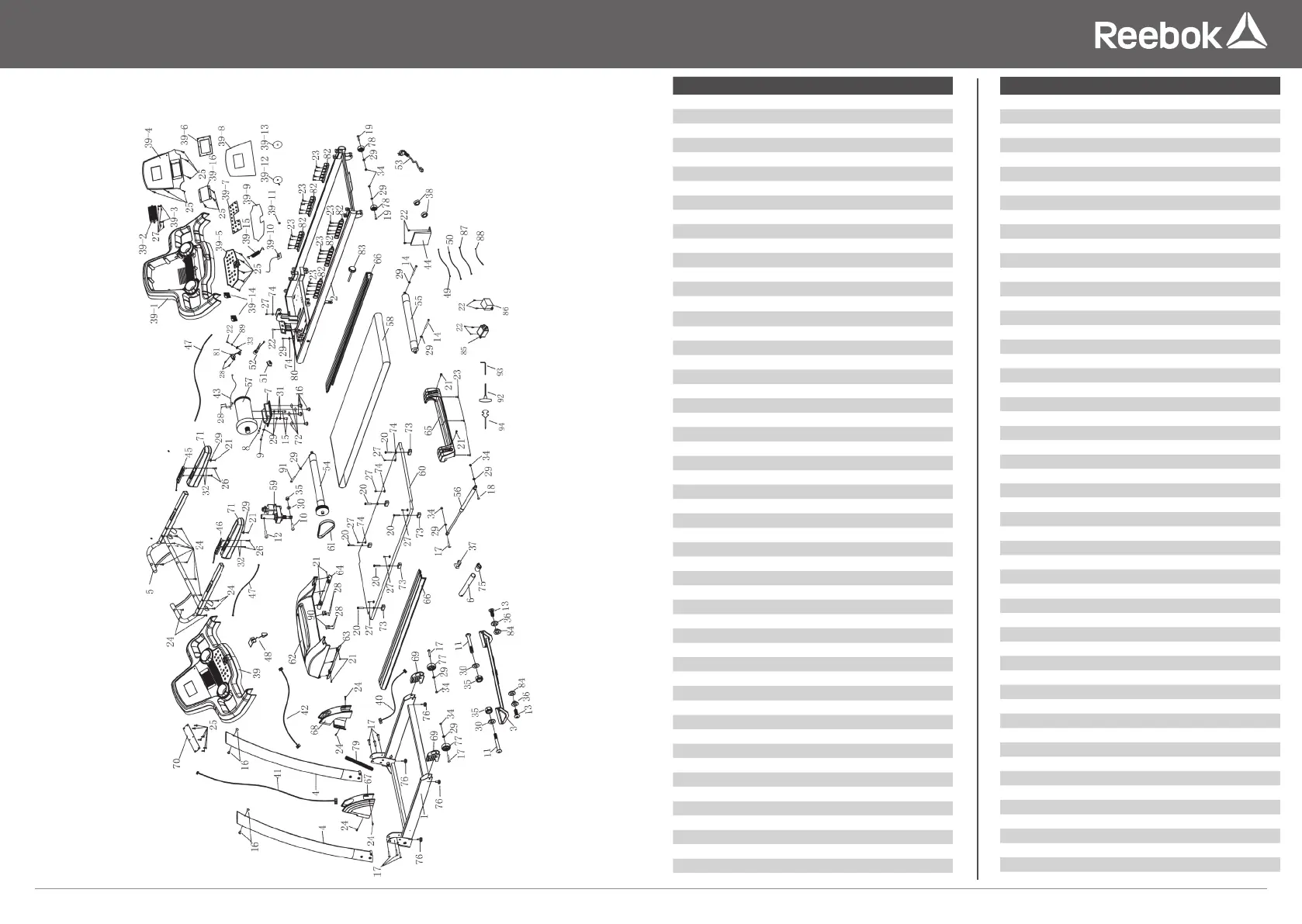

SPARE PARTS LIST
ITEM DESCRIPTION QTY.
1 Base Frame 1
2 Main Frame 1
3 Incline Frame 1
4 Upright Post 2
5 Computer Frame 1
6 Soft Drop Linking Parts 1
7 Motor Frame 1
8 Bolt Welding - M8 x 65 1
9 HEX Full Thread Screw - M8x75 1
10 Allen Socket Half Thread Screw - M10x45x20 1
11 Allen Socket Half Thread Screw - M10x95x20 2
12 Allen Socket Half Thread Screw - M10x35x20 1
13 Allen Socket Full Thread Screw - M10x25 2
14 Allen Socket Full Thread Screw - M8x75 2
15 Allen Socket Full Thread Screw - M8x15 2
16 Allen Socket Full Thread Screw - M8x15 8
17 Allen Socket Half Thread Screw - M8x50x20 9
18 Allen Socket Half Thread Screw - M8x30x20 1
19 Allen Socket Half Thread Screw - M8x40x20 2
20 Allen Full Thread Screw - M6x55xØ16 6
21 Phillips C.K.S. Full Thread Screw - M5x10 8
22 Philips C.K.S. Full Thread Screw - M4x10 9
23 Philips C.K.S. Full Thread Screw - ST4x16 29
24 Philips C.K.S. Full Thread Screw - ST4x20 16
25 Philips C.K.S. Full Thread Screw - ST4x12 28
26 Philips C.K.S. Full Thread Screw - ST4x35 4
27 Philips Self-Tapping Screw - ST4x15 10
28 Philips Self-Tapping Screw - ST3x10 16
29 Flat Washer - Ø8 10
30 Flat Washer - Ø10 3
31 Elastic Washer - Ø8 2
32 Flat Washer - Ø12xØ4.5xt1.0 8
33 Washer - Ø5 3
34 HEX Self-Locking Nut - M8 6
35 Hex Self-Locking Nut - M10 3
36 Incline Shaft Sleeve - Ø25xØ17xØ10x5.5x2.5 2
37 Shrapnel t0.5x20.5x47 1
38 Ring Incline Shaft Sleeve - Ø35xØ22xt15.0 2
39 Console Set 1
39-1 Console Housing 1
39-2 Wind Hole 1
39-3 Press Plate 2
39-4 Board (Display) 1
39-5 Board (Key) 1
39-6 PCB (Display) 1
39-7 PCB (Key) 1
39-8 Console Overlay (Display) 1
39-9 Console Overlay (Key) 1
39-10 Microswitch 1
39-11 Safety Lock Thimble 1
39-12 Safety Lock Plate 1
39-13 Safety Key Sticker 1
39-14 Speaker 2
39-15 MP3 Wire L-300mm 1
39-16 Wind Hole Fixed Plate 1
ITEM DESCRIPTION QTY.
40 Wire - L-1200mm 1
41 Wire - L-600mm 1
42 Wire L-800mm 1
43 Speed Sensor 1
44 Controller 1
45 Speed Handle Pulse Set 1
46 Handle Pulse Set 1
47 Handle Pulse Wire 2
48 Safety Key 1
49 Power Cord (Red) 2
50 Power Cord (Black) 1
51 Switch 1
52 Fuseholder 1
53 Power Cord 1
54 Front Roller - Ø88xØ46xØ15x495 1
55 Rear Roller - Ø46xØ15x475x515 1
56 Hydraulic - 532x232xØ10xØ8.2x450N 1
57 Motor 1
58 Running Belt 1
59 Incline Motor 1
60 Running Deck 1
61 Motor Belt 1
62 Motor Cover 1
63 Plate for Motor Cover (Left) 1
64 Plate for Motor Cover (Right) 1
65 Rear Pad 1
66 Side Rail 2
67 Foot Cover (Left) 1
68 Foot Cover (Right) 1
69 End Cap 2
70 Console Back Cover 1
71 Handle Bar Cover 2
72 Square Cushion - 35x35xt3.0xØ9 4
73 Square Cushion - 20x40xt18 6
74 Round Side Rail Guider - Ø25xØ5x4.5 8
75 End Cap - Ø33xØ23x48 1
76 Foot Pad - Ø28xØ23xt11xM8x20 4
77 Wheel - Ø62xØ8.0xt22 2
78 Wheel - Ø46xØ8.0xt18.5 2
79 Wire Protector - Ø20x420 1
80 Binder 2
81 Socket 1
82 Cushion - 157.6x30x38xt7.0 6
83 Ezfit tension knob - Ø50xM8x60 1
84 Incline Shaft Sleeve - Ø25xØ17xØ10x6x1.0 2
85 Filter 1
86 Choke 1
87 Power Cord - L-300mm 1
88 Wire (Black) - L-150mm 1
89 Elastic Washer - Ø5 3
90 Motor Cover Piece 2
91 Allen Socket Full Thread Screw - M8x50 1
92 T Type Wrench - 6x80 1
93 L Type Wrench - 6x35x80 1
94 Cross Open Spanner - 14x17x75 1
