Reebok RX 820 - Page 28

Extension Leg Screw (34)–2
3/8” x 2" Bolt (43)–4
1/2" Screw (59)–2
1/4” x 1” Bolt (23)–4
Flange Nut (82)–2
3/8" Washer (35)–4
3/8” Nut (34)–4
1 1/4” Screw (20)–4
Handrail Bolt (101)–2
Star Washer (113)–6
Upright Bolt (66)–2
Console Bolt (42)–4
Post Bolt (44)–4
Foot Housing Screw (105)–4
Latch Screw (36)–2
1/2" Screw (51)–14
3/4” Screw (65)–12
3/4” Screw (12)–12
Foot Screw (65)–4
1/4” Washer (125)–4
Foot Rail Washer (96)–10
Handrail Spacer (43)–2
Base Leg Bolt (77)–4
Base Leg Nut (70)–4
Base Leg Bolt (77)–4
Thick Base Pad (75)–2
Thin Base Pad (103)–2
Foot Rail Screw (97)–10
Handrail Star Washer (44)–4

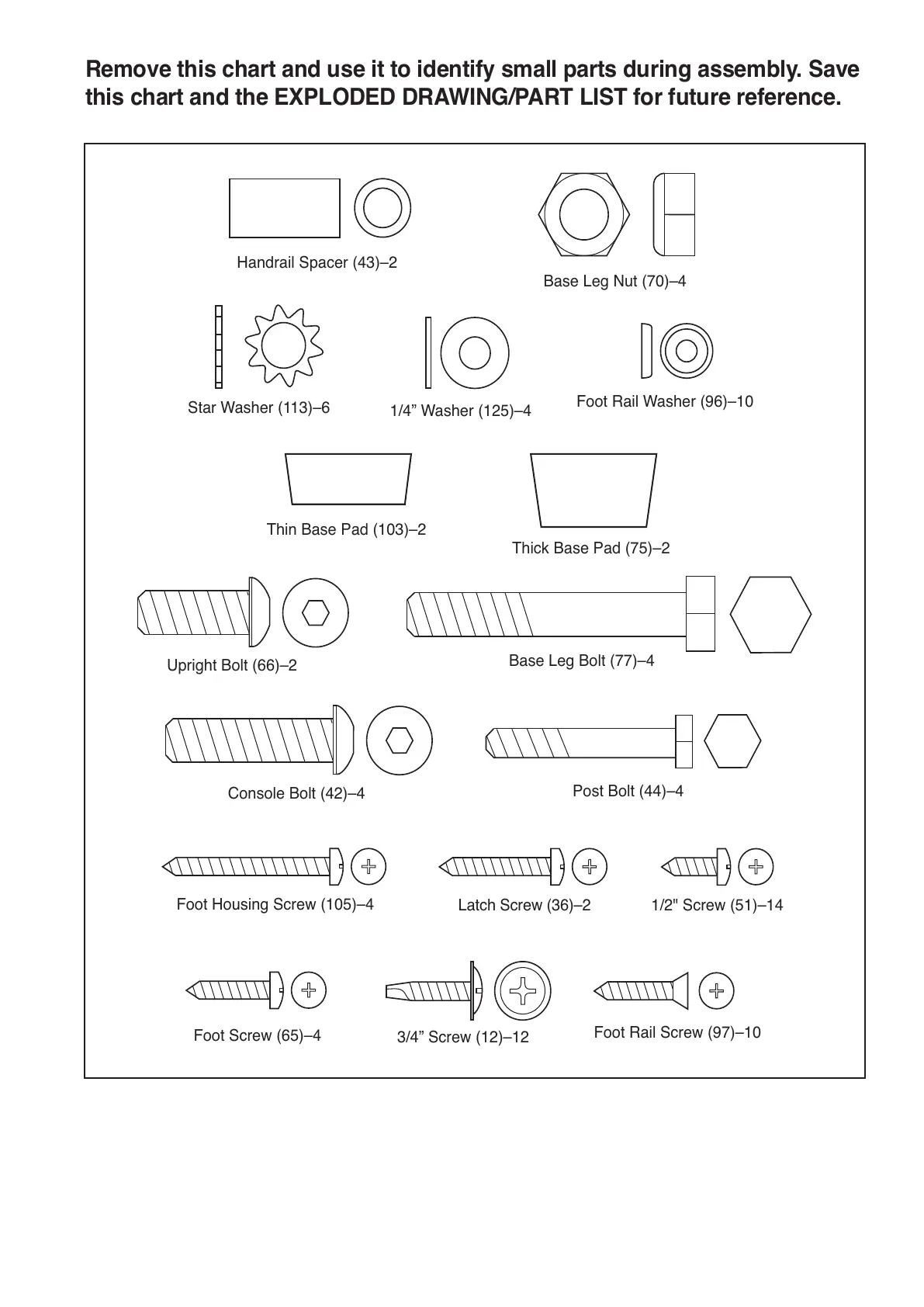

Remove this chart and use it to identify small parts during assembly. Save
this chart and the EXPLODED DRAWING/PART LIST for future reference.
