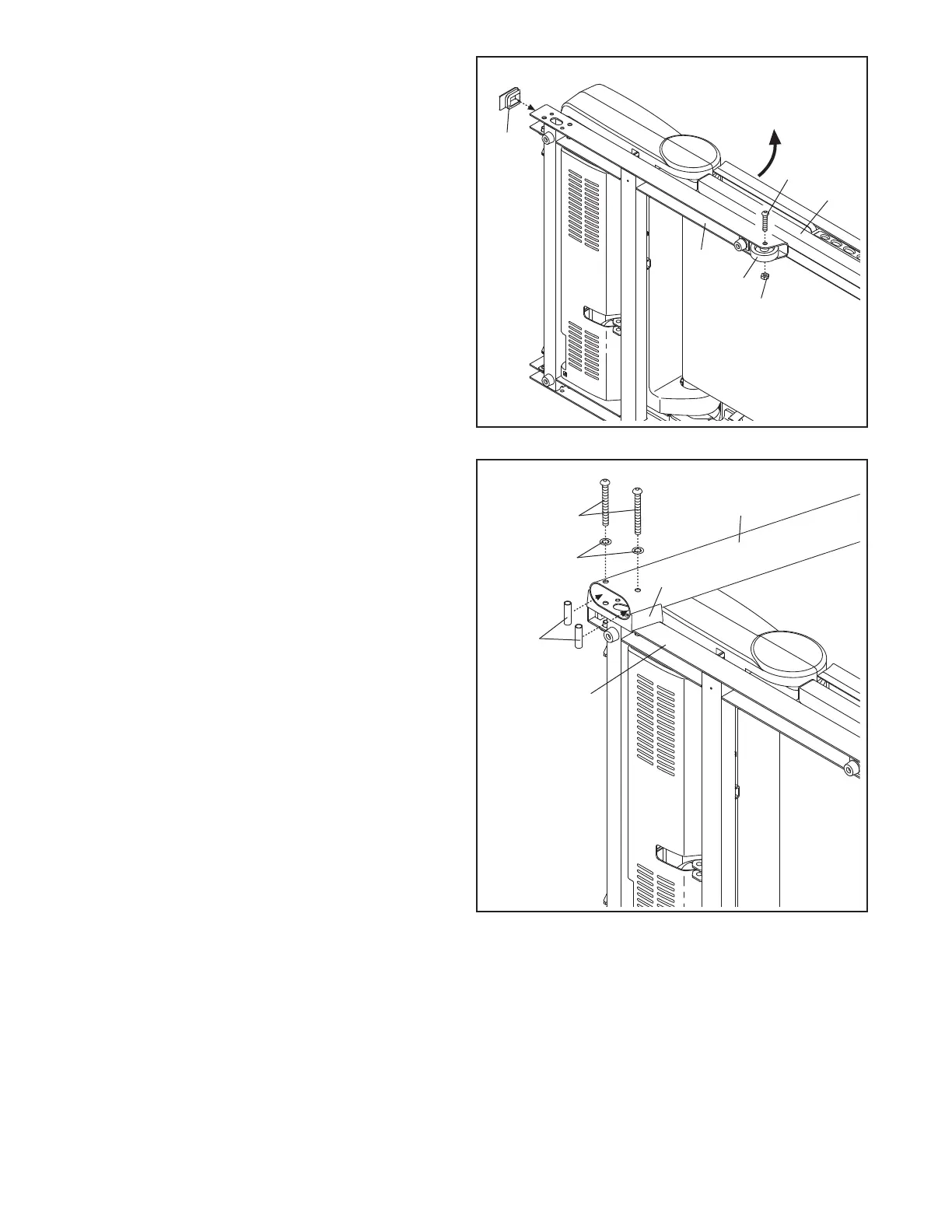

6. Hold a Bolt Spacer (14) inside the lower end of
the Left Upright (84). Insert a 3/8" x 4" Bolt (7)
with a 3/8" Star Washer (11) into the Left
Upright and the Bolt Spacer. Repeat this step
with a second Bolt Spacer (14), 3/8" x 4" Bolt
(7), and 3/8" Star Washer (11).
Hold the Left Upright Spacer (88) and the Left
Upright (84) against the Base (95). See inset
drawings B and C in step 3. Make sure that the
Left Upright Spacer sits flush against the
Base. If necessary, turn the Left Upright
Spacer and try again. Tighten the 3/8" x 4"
Bolts (7) until the heads of the Bolts touch the
Left Upright; do not fully tighten the Bolts yet.
With the help of a second person, tip the tread-
mill so that the Base (95) is flat on the floor.
88
84
7
95
14
11
6
9
5. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (55) so that the treadmill is more stable;
d
o not fully fold the Frame yet.
A
ttach a Wheel (96) to the Base (95) with a 3/8"
x 2" Bolt (8) and a 3/8" Nut (10). Do not over-
tighten the Nut; the Wheel must turn freely.
Press a Base Cap (89) into the Base (95).
5
8
55
10
95
8
9
96
