MIZU
BLOC WALL TOP ASSEMBLIES
Plumbers, please ensure a copy of the installation
instructions is left with the end user for future reference
INSTALLATION INSTRUCTIONS
1. Check the breech is between 0-20mm from the finished wall.
2. Check seats in recess tap bodies are in good condition and free of foreign materials. Re-seat if required.
3. Separate locknut (9) and fibre washer (10) from cartridge.
4. Grip the cartridge on the hexagonal flats and install cartridge fully into breech untill it comes to a firm stop. Do not tighten car-
tridge into position by rotating spindle.
5. Turn spindle to off position and turn on water at mains. Check that cartridge has fully seated. If dripping occurs then gentle
tighten cartridge further until dripping stops.
6. Firmly tighten cartridge locknut (9) and fibre washer (10) into positon.
7. Place dress ring (8) & seal into position by screwing wall flange (5) onto lock nut (9) until it is tight against the wall.
8. Turn cartridge spindles to the fully OFF position and assemble handle.

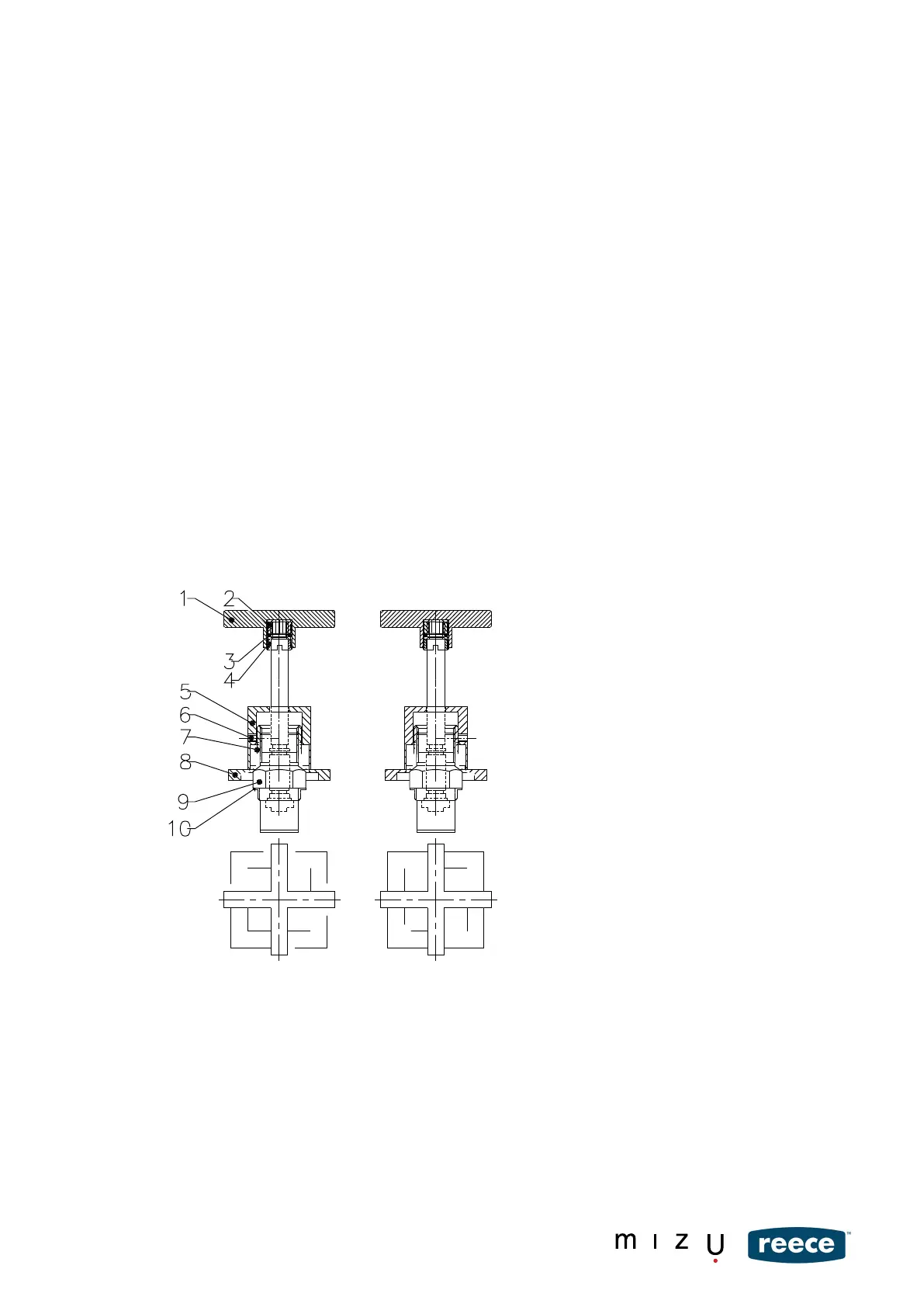

Exploded View
Item Description
1 Handle
2 Lock Nut
3 Circlip
4 Lock Nut
5 Wall Flange
6 Bolt
7 Nut
8 Handle
9 Lock Nut
10 Fibre Washer
O RING
重量
数量
比例
图 样 标 记
第 张共 张
DR BRASS (ALLOY486)
AERATOR ADAPTOR
DR BRASS (ALLOY486)
16x OUTLET
PLASTIC AERATOR
DELRIN 500P NC010
DR BRASS (ALLOY486)
INSERTS
DR BRASS (ALLOY486)
BASIN RECESS BODY
DR BRASS (ALLOY486)
DR BRASS (ALLOY486)
BRASS (ALLOY370)
LOCK NUT
HANDLE
NYLON OLIVE
WASHER
EPDM 70
TOP ASSEMBLIES
FIBRE WASHER
BASE FLANGE
NUT
QUADRATE FLANGE
BRASS (ALLOY370)
LOCK NUT
LOCK NUT
BRASS (ALLOY370)
BRASS (ALLOY370)
CIRCLIP
STAINLESS STEEL
周莲群
签 字
标准化
日 期
审 定
批 准
标记
设 计
处数
校 对
工 艺
更改文件号
日 期审 核
陈 波
描 图
描 校
借通用件登记
旧底图总号
版本
签字
日期
日 期
周莲群
签 字
标准化
审 定
批 准
标记
设 计
处数
校 对
工 艺
更改文件号
日 期
审 核
重量数量 比例图 样 标 记
第 张共 张
NO PRODUCT NAME QTY
MATERIAL
1
2
3
4
5
6
7
8
9
2
2
2
2
2
2
2
2
2
MIZU BLOC WALL
TOP ASSEMBLIES
WASHER
EPDM 70
"T" PIECE COPPER
WASHER
PLASTIC LOCK NUT ABS
EPDM 70
QUADRATE
FLANGE
BOLT
STAINLESS STEEL
DR BRASS (ALLOY486)
COMPRESSTION NUT
DR BRASS (ALLOY486)
210
HANDLE
LOCK NUT
CIRCLIP
LOCK NUT
BRASS (ALLOY370)
STAINLESS STEEL
BRASS (ALLOY370)
BRASS (ALLOY370)
QUADRATE
FLANGE
BRASS (ALLOY370)
BOLT
STAINLESS STEEL
NUT
BASE FLANGE
BRASS (ALLOY370)
BRASS (ALLOY370)
FIBRE WASHER
CT4100
MIZU BLOC BASIN SET
CT4203
BRASS (ALLOY370)
TOP ASSEMBLIES
CT9505802
CT9505803
方管子
