2. Tonearm mounting:
a) Mount the tonearm onto a turntable
using mounting drawing, template
and protractor.
b) On the turntable mark three tonearm
base mounting holes and center hole
using Reed 5T mounting drawing and
check the position with Reed 5T
template [1] (Figure 2).

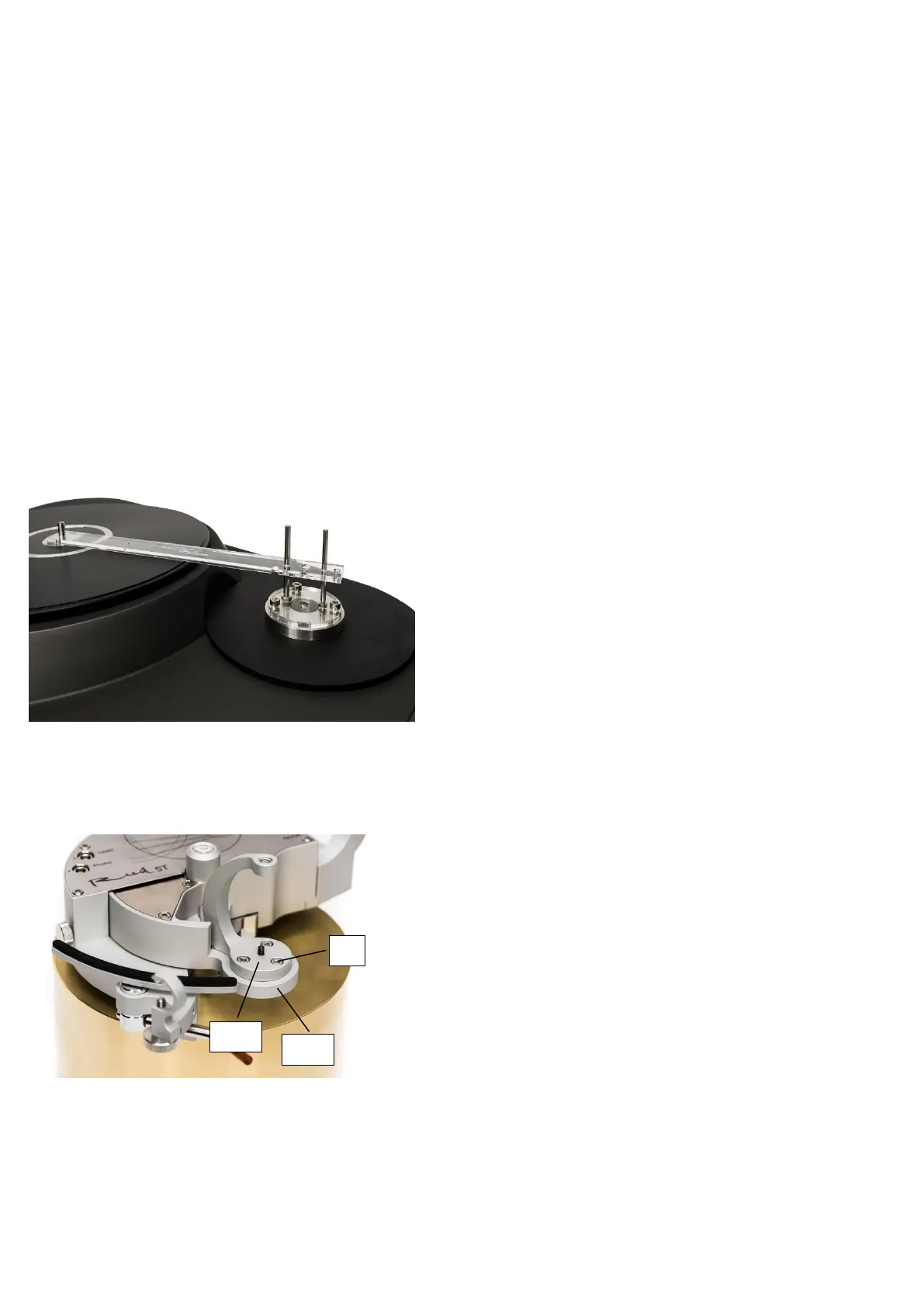

Figure 4
c) Drill three 4.2 mm holes and thread
them with M5 thread. Fix the
armboard in a designated place using
a template (Figure 4).
Figure 5
d) Fix armwand base [2b] to armwand
base pad [3b] using three M3 screws
[1] (Figure 5).
1
2b
3b
