REED 5T - Page 4

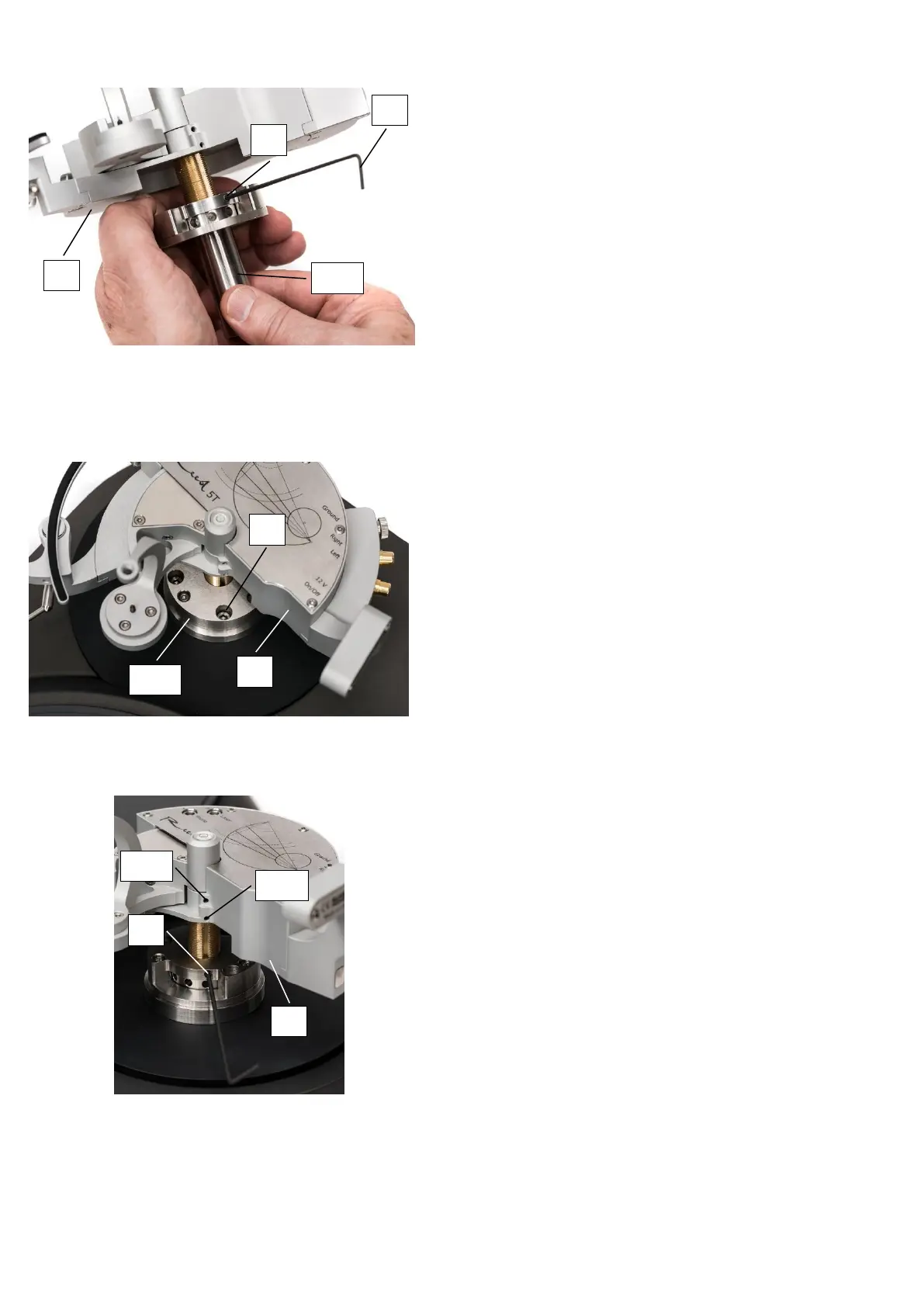

Figure 6
e) Using s=2 mm Allen key [1] release
fixing screw of VTA adjuster [2] by
rotating it half-turn counter-
clockwise.
While holding a tonearm, unscrew its
base [3a] counter-clockwise and lift
off the tonearm body [3] until it
stops. Do not use excessive force
(Figure 6).
Fully release the fixing screw of VTA
adjuster [2] by rotating it another
three counter-clockwise full-turns.
Figure 7
f) Place the tonearm on a turntable and
match all three mounting holes (there
is only one matching position).
Carefully turn a tonearm base [3a]
around its axis to see if mounting
holes match. Tonearm body [3]
should be freely rotating around
tonearm base [3a] as well (Figure 7).
Fix the tonearm onto a turntable
using three M5 screws [5].
Figure 8
g) Set tonearm body [3] in a position,
that fixing screw of VTA adjuster [1]
would be in the same line with two
body fixing screws [4a] and [4b]
(Figure 8).
Tighten the fixing screw of VTA
adjuster [1].
1
2
3a
3
3a
3
3
1
4a
4b
5
