h) Take out the pivoted armwand [2a]
(Figure 3) from its packaging and
place it on the armwand base [2b].

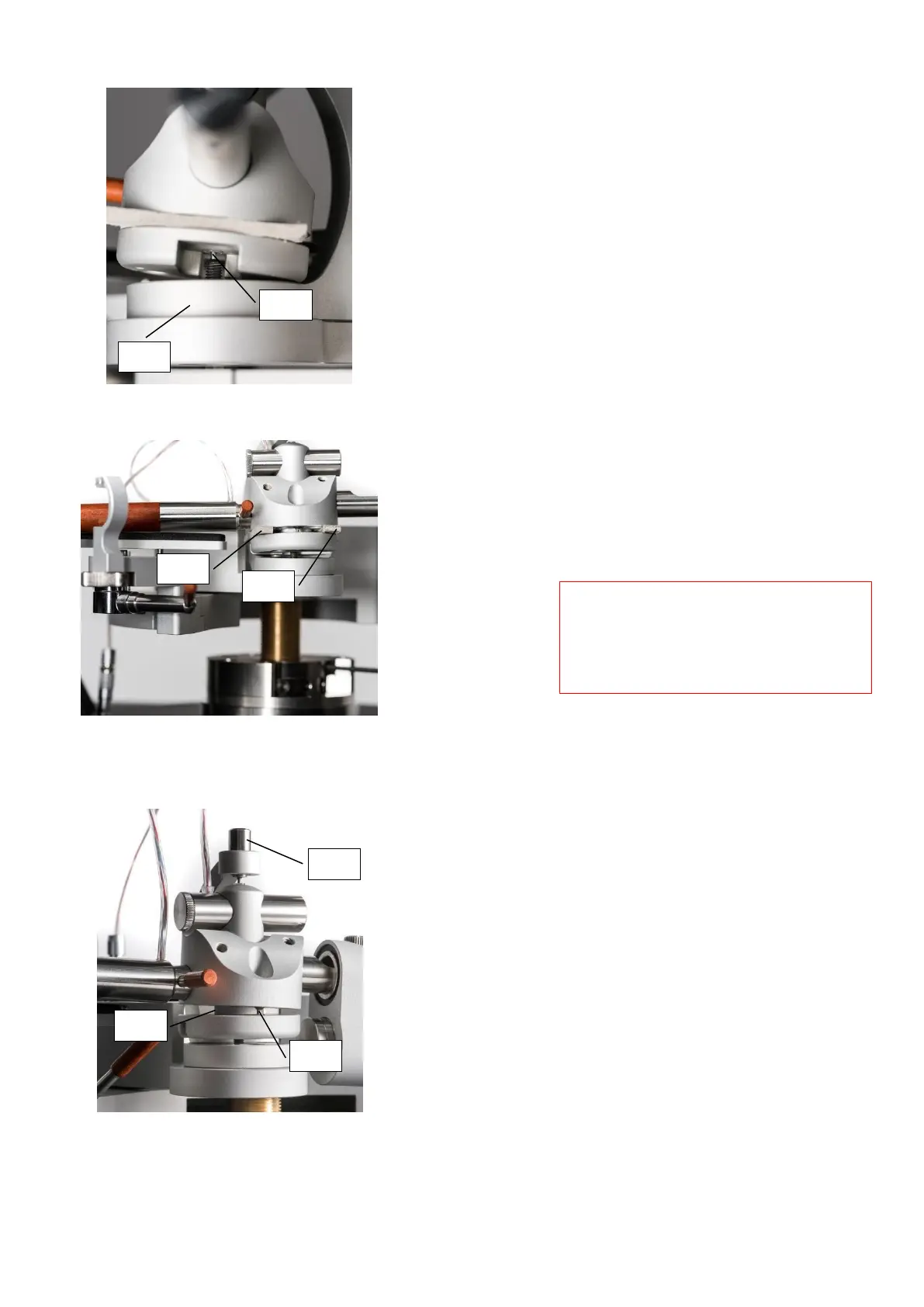

Make sure that the bottom bearing of
a vertical axis [1a] is in the right
position (Figure 9).
i) Remove bearings protection strips
[1a] and [1b] (Figure 10) from the
armwand and check if horizontal axis
bearings [1c] and [1d] are in a
correct position (Figure 11).
j) Screw out the top bearing of vertical
axis from bearing protection. Take
the hex (allen) key s=2,5 mm and
screw bearing in place [1b]. Needle of
the bearing must be embed in
sapphire V cup. Bearing should be
screwed in tight, however do not
apply excessive force (Figure 11).
Bearings protection strips [1a] and
[1b] (Figure 10) must be placed
back while transporting tonearm.
Otherwise the bearings may be
damaged.
