Instruction manual
2-way and 4-way digital manifolds
DIGIMON-SE
DIGIMON4

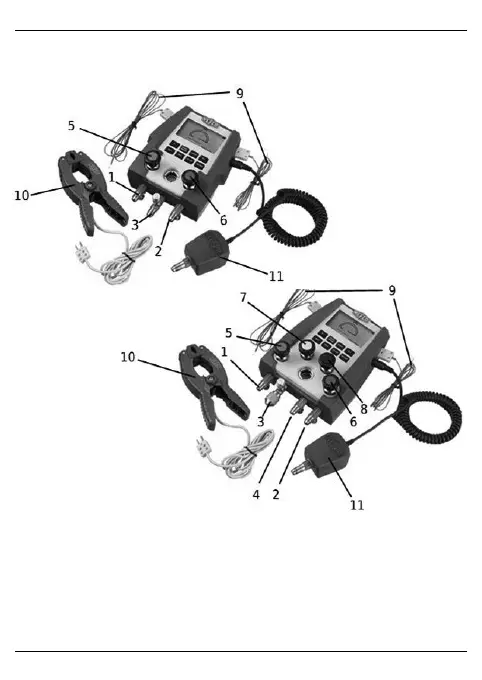

1. Low pressure anchor ¼“ SAE
2. High pressure anchor ¼“ SAE
3. Vacuum anchor ¼“ SAE or 3/8“
4. Refrigerants anchor ¼“ SAE
5. Low pressure valve (blue)
6. High pressure valve (red)
7. Vacuum valve (yellow)
8. Refrigerants valve (black)
9. 2 external K-type thermocouples
10. Clamp thermocouple K-type (optional) P/N 4681466
11. External vacuum sensor DIGIMON-VAC (optional) P/N 4686713
