Instruction manual Gobi II English
5

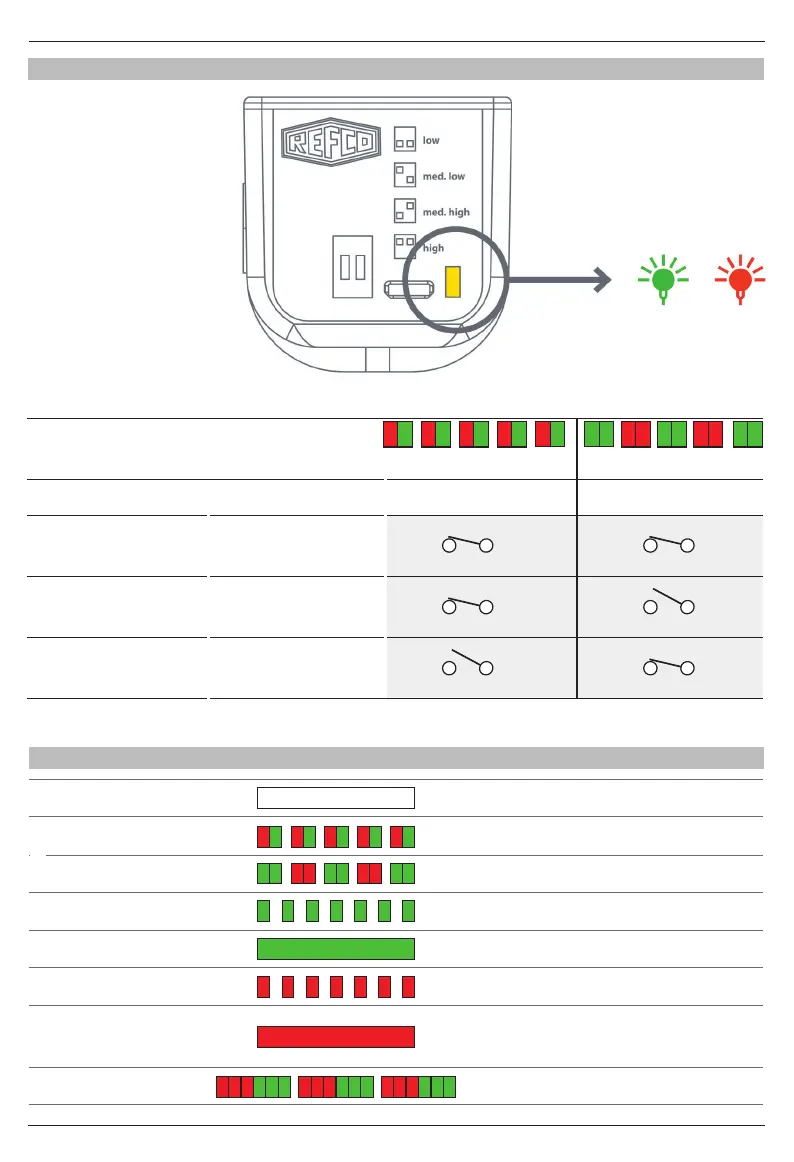

LED alarm relay indications
LED indications in operation
No power
Pump is miswired or no incoming voltage. Problem
with A/C system or alarm is miswired.
Start up LED sequence
(default mode)
Alternating red/ green fl ashes 5x only then stops
and goes to standby mode.
Start up LED sequence
(peripheral mode)
Alternating red/ green fl ashes 5x only then stops
and goes to standby mode.
Standby mode –
waiting for water
Blinking green continuously.
Pumping water
Solid green. Running in low, med low, med high, or
high power confi g. normal operation.
High water level mode Blinking red. Running above high water level.
Alarm mode –
relay activated
Solid red. Pump cannot keep up with water input.
To prevent water overfl ow break power to A/C until
water level
reduces.
Reconfi gure code
Pump has had 3 extra long run cycles, reconfi gure
dip- switches for more capacity.
Or
❋ Alarm relay operation is user confi gurable see page 9 ❋
Start up sequence
Pump status Condensate level Default operation Peripheral Mode
Not powered N/A
Powered Below alarm level
Powered Alarm-activated
(normally closed) (normally open)
LED alarm relay operation table
NC COM
NC COM
NC COM
NC COM
NC COM NC COM
NC COM
NC COM
NC COM
NC COM
