Page 2
HARDWARE CONFIGURATIONS

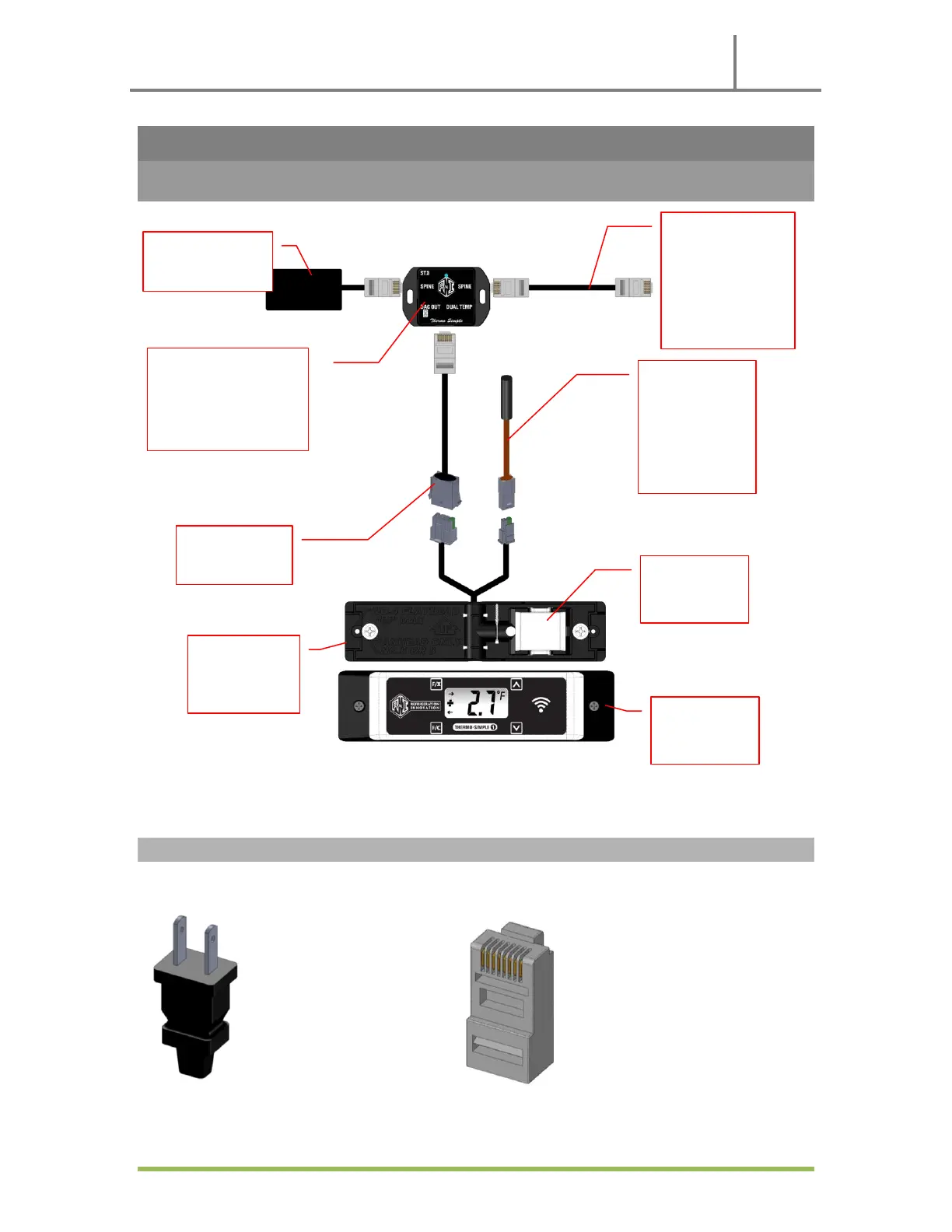

MULTI-NODE (SPINE) CONFIGURATIONS
This configuration allows a single power supply to power up to 6 Thermo-Simple 1 and/or 2.
Power Supply for Multi-Node
The power supply for Multi-Node Configuration is not interchangeable with Single Node power supply. This is due to different load
requirements.
INPUT
Plug type: NEMA 1-15p
Voltage: 100-240 Vac(50-60 Hz)
Current: 0.2 A
OUTPUT
Plug type: RJ45 (8 Positions 8 Contacts)
Voltage: 12 Vdc
Current: 1.5 A
Power Harness
PN: H2-S
Power Supply
PN: PS-S-1
Sensor – 6 feet
PN: H3-6
Sensor – 13 feet
PN: H3-13
Sensor – 25 feet
PN: H3-25
Spine Cable – 6 feet
PN: Spine-6
Spine Cable – 13 feet
PN: Spine-13
Spine Cable – 25 feet
PN: Spine-25
Junction Box (Single Temp.)
PN: ST-3
Display Unit
PN: TS1-DS
Mounting
Harness
PN: TS1-MP
Contact Cover
PN: TS1-PC
