Connections of the External Stop Signal (DRM 0)

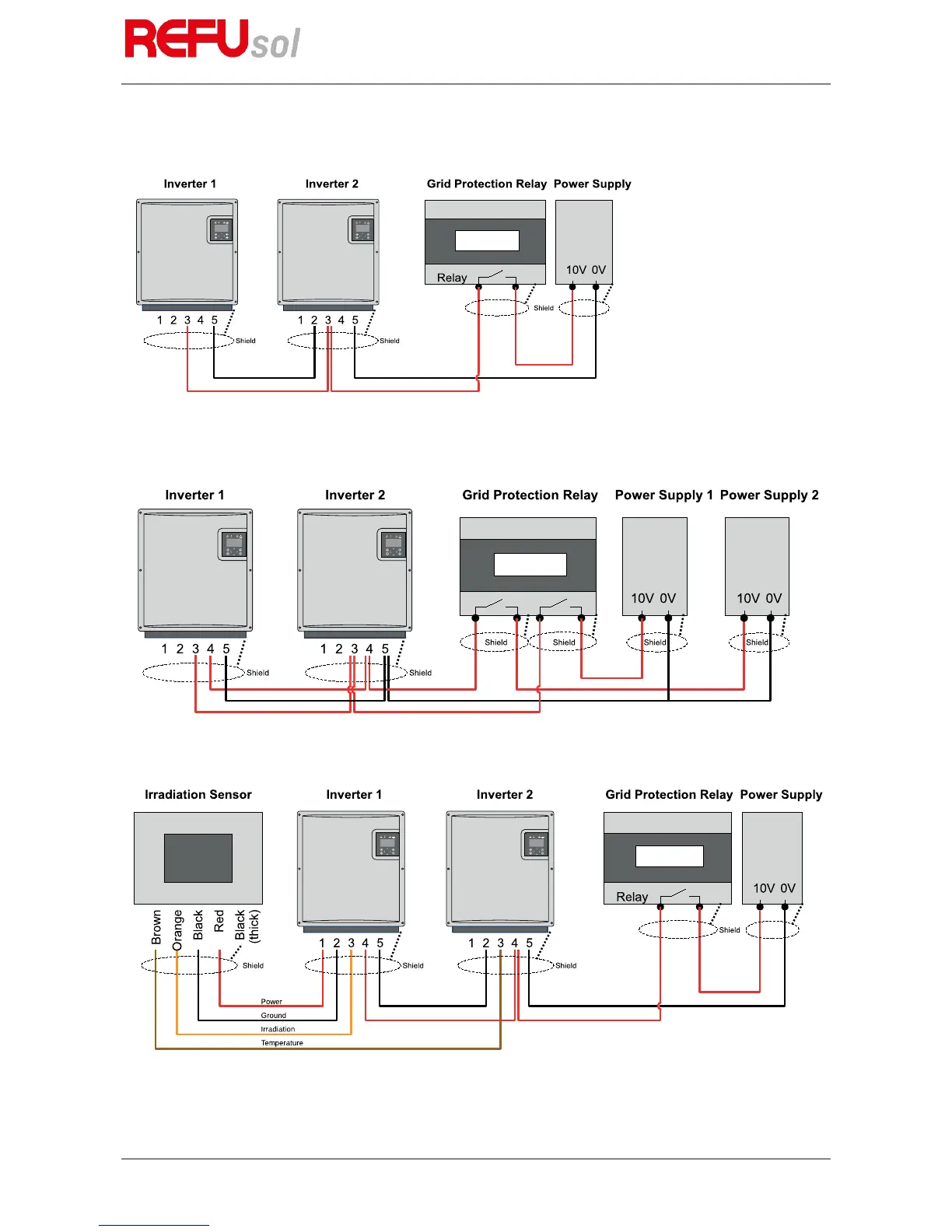

Fig. 29: Single external stop signal
Fig. 30: Redundant external stop signal (does not apply to AFCI variant)
Fig. 31: Single external stop signal with sensor connected (does not apply to AFCI variant)
