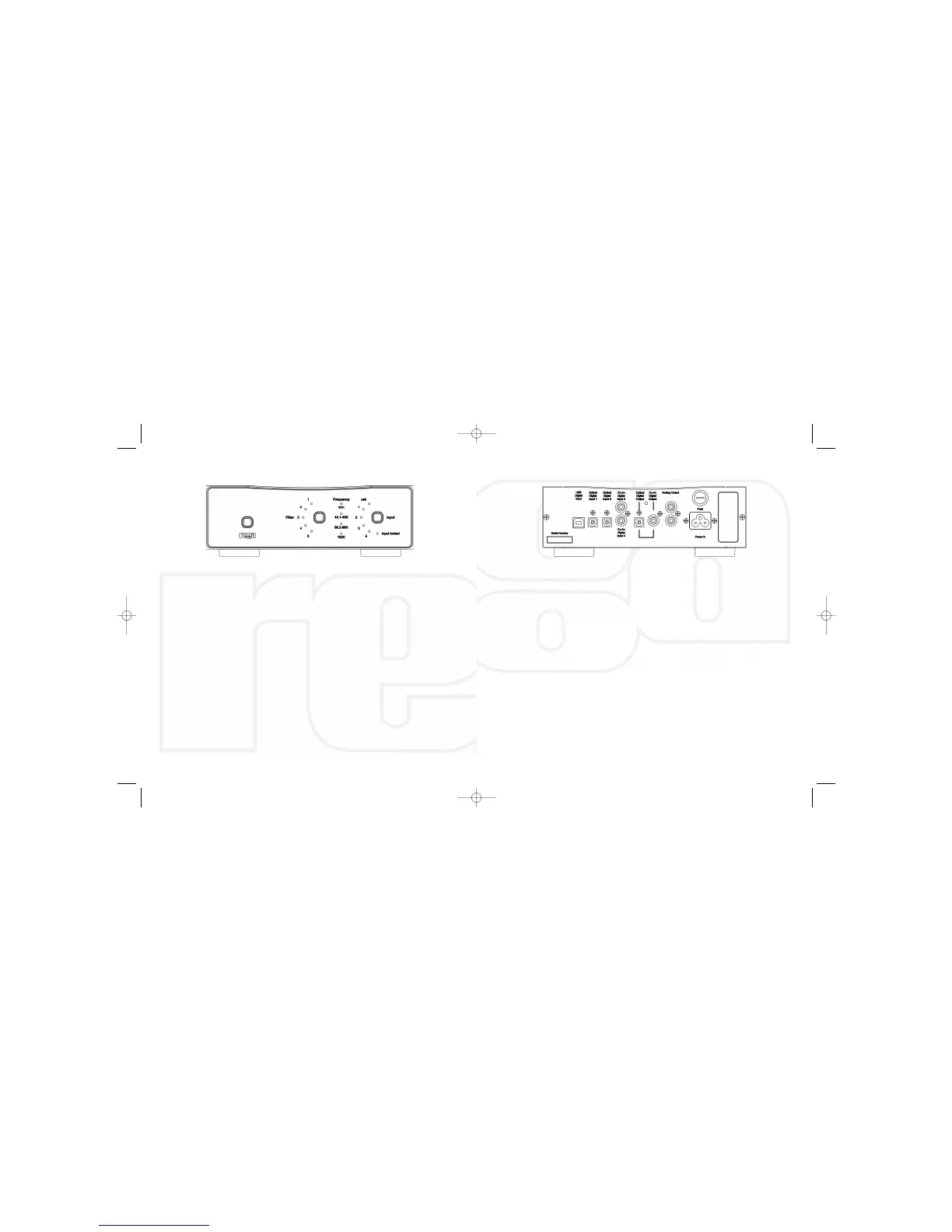

BACK PANEL
Digital Inputs
USB - type B connector/Isolated
Optical Digital Input 1 - Optical/Toslink
Optical Digital Input 2 - Optical /Toslink
Co-Ax Digital Input 3 - Isolated 75Ω Co-axial Phono
Co-Ax Digital Input 4 - Isolated 75Ω Co-axial Phono
Digital output (via receiver & PLL) -SPDIF
Optical Toslink
Co-axial/Phono Isolated 75Ω
Analogue Output Left and Right Phono
Power Mains/line input IEC C5 type
Fuse Fuse holder
3
FRONT PANEL INDICATORS AND CONTROLS
Power on/off (button above Rega logo) When the power button is pressed
the Rega logo illuminates to indicate power is on.
Input Locked indicator This indicates the digital input signal is valid and the
PLL in the receiver is locked. When the Input Locked LED is off the soft mute is
activated.
Input This button selects the 5 available digital inputs. Push to advance to the
next input as follows:
USB Optical 1 Optical 2 Co-axial 3 Co-axial 4
Sample rate LED’s (only valid when Input Locked is on)
32K – Indicates the incoming sample rate is 32kHz
44.1/48K – Indicates the incoming sample rate is 44.1 or 48kHz
88.2/96K – Indicates the incoming sample rate is 88.2 or 96kHz
192K – Indicates the incoming sample rate is 176.4 or 192kHz
