Regal 2300 - Page 332

G) Water Tank Filling Point
E) Oil Tank Emptying Point
F) Water Tank
L) Fire Extinguisher
B) Fuel Tank Filling Point
J) Seacocks
A) Fuel Tank
P) Life Raft Stowage
K) Through-Hull Fittings
N) Escape Hatch
Key
H) Holding Tank
O) Fire Escapes
I) Holding Tank Emptying Point
M) Carbon Monoxide Detector
C) Oil Tank
D) Oil Tank Filling Point
REGAL MARINE INDUSTRIES
MANUAL DRAWING
REGAL 2300
P
F
A
L
K
B
G

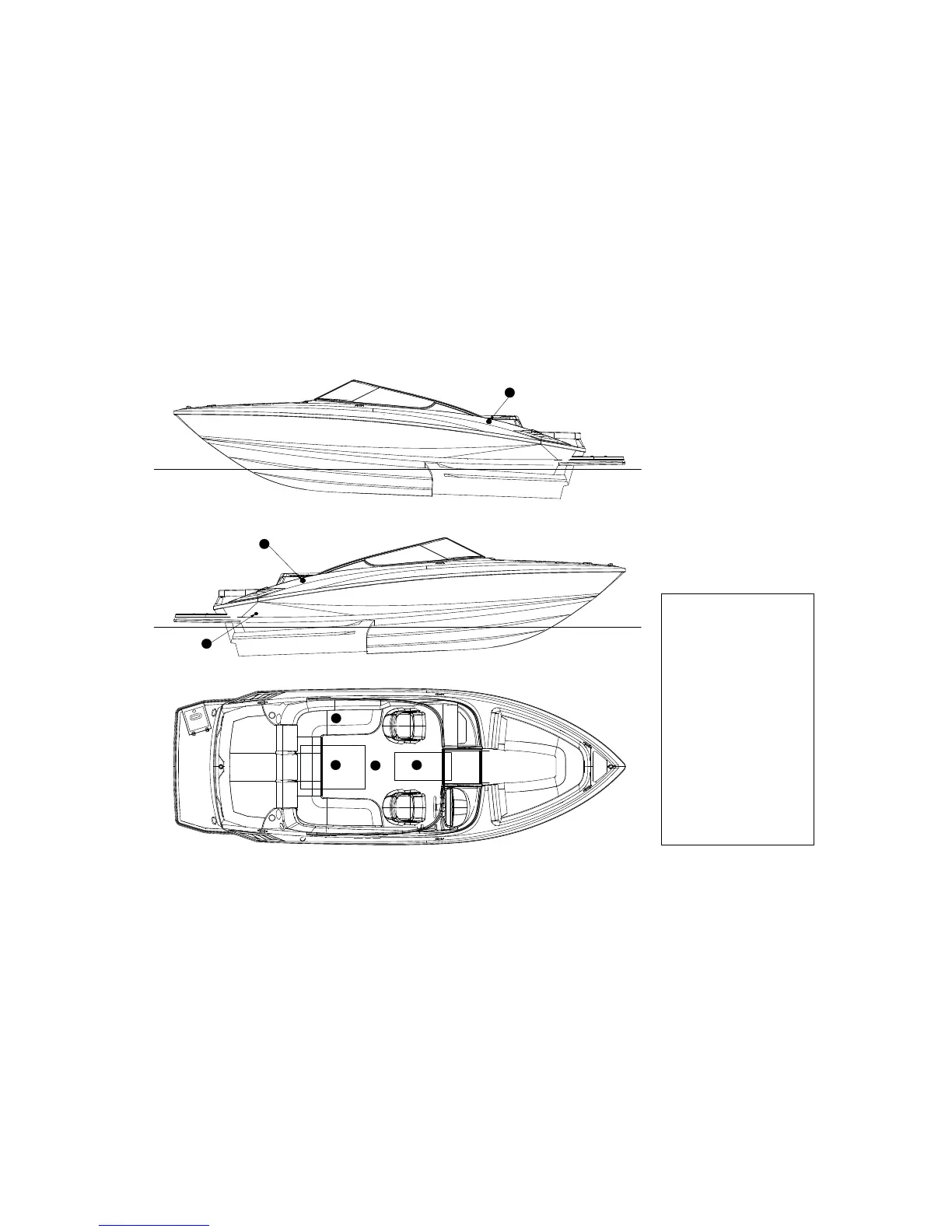

2300 CE EQUIPMENT LOCATION
12-13
