Chapter 4

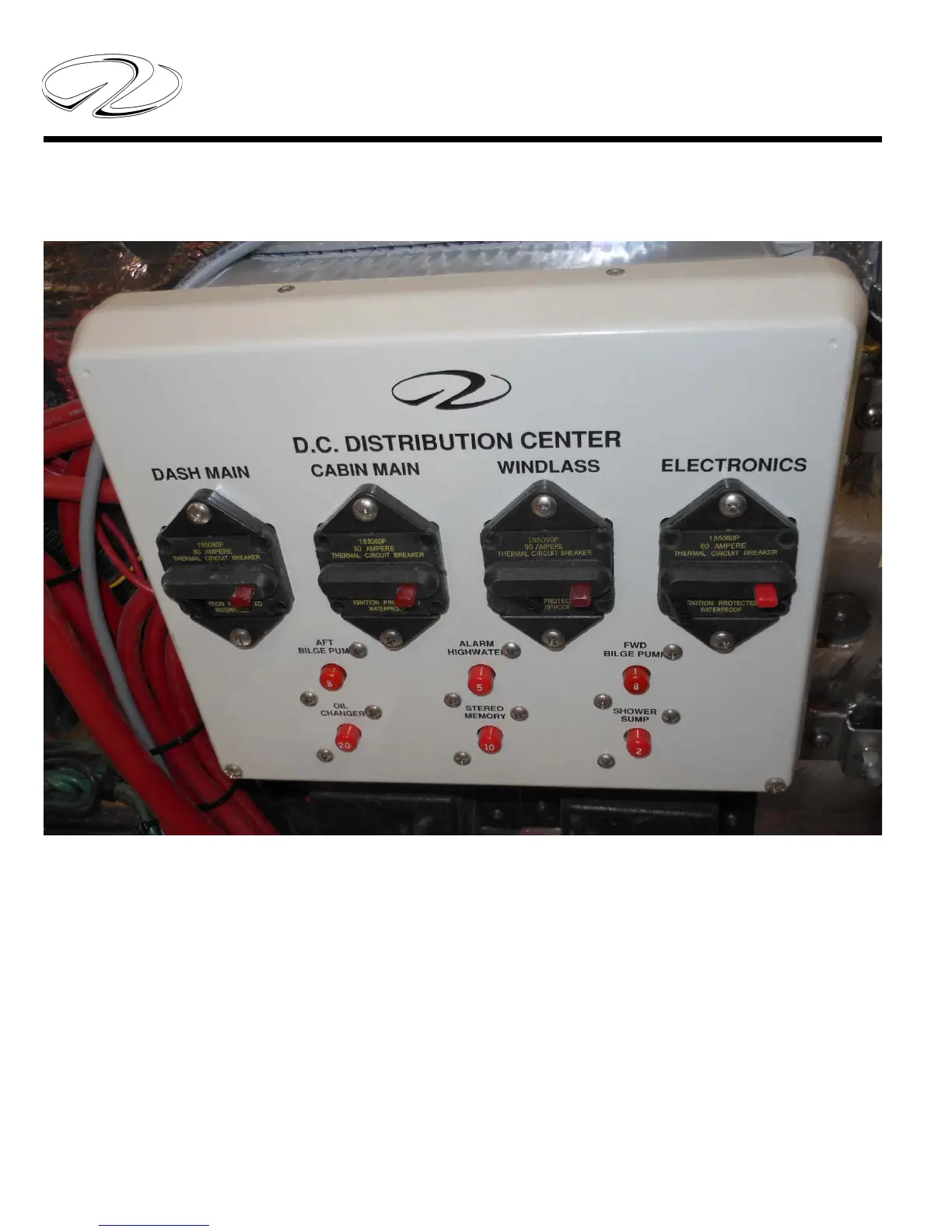

TYPICAL D.C. DISTRIBUTION CENTER-OVERVIEW
The D.C. distribution center is located inside the engine
room is normally mounted on the forward fi rewalll bulk-
head. It provides circuit protection for major D.C.groups
such as the dash, cabin, windlass, and electronics.
In addition, specifi c component circuits are protected.
Following is a listing of each component and the reset-
table breaker size.
COMPONENT BREAKER SIZE
Dash Main 80 Amps
Cabin Main 80 Amps
Windlass 90 Amps
Electronics 60 Amps
Aft Bilge Pump 8 Amps
Oil Changer 20 Amps
Alarm-Highwater 5 Amps
Stereo Memory 10 Amps
Fwd, Bilge Pump 8 Amps
Shower Sump Pump 2 Amps
