Regal LS9 - Page 242

240
Arch Hinge Part No. 201119
Receiver; Assembly for 221590 W/ SS Washers, Nut and Plug Part No. 221592
Pop-up Ski Tow Pylon Part No.13319
Brake Light Part No, 6539 Brake Light Plug Part No. 18939
Speaker: Signature Chrome w/ Light w/SPP
Part No. 957635
Fuel Fill Cap
Part No. 351702 (Steel)
or
Deckplate; Gas Fill/Vent
Part No. 67224
or
Deckplate; Gas Fill-EPA
Part No. 67228
Pop-Up Nav Light
Cover: White Arch Hole Part No. 240000
4" Deck Vent Part No. 221614
Hinge: 5" x 5" SS Reversible Part No. 681229
Brake Light Part No. 6539 Brake Light Plug Part No. 18939
Light; Blue LED Rect. LT Down,
Courtesy ILLIUM SS BZ
Part No. 211525
Actuator: Hatch 18" Linak
Part No. 48537
Actuator Bracket: S/S For Arch
Part No. 12618
Receiver; Assembly for 221590 W/ SS Washers, Nut and Plug Part No. 221592
Emblem: Power Tower Chrome Part No. 201303
4" Deck Vent Part No. 221614
Drinkholder SS Flush Mount
Part No. 48626
SS Grab Handle 26 FD Part No. 262731
8" Cleat Part No. 211314
Sink Waste: 3/4 90 Deg Part No. 10130
8" Cleat
Part No. 211314
Water Fill Cap: Part No. 211729 or Water Fill/Vent Part No. 1274
8" Cleat
Part No. 211314
8" Cleat Part No. 211314
Drinkholder SS Flush Mount Part No. 48626
SS Grab Handle 26 FD
Part No. 262731
Ski Tow with Light Pylon Part No. 200144
CVL
REVISION:
DRAWING TITLE: DATE:
2300 JETPORT DRIVE ORLANDO, FLORIDA 32809 TEL (407) 851-4360
REGAL MARINE INDUSTRIES
ALL RIGHTS RESERVED
DWG. NO.:
Spencer M.
LS6 (MH) Deck Hardware
PAGE:
APPROVED BY:DRAWN BY:
PROPRIETARY AND CONFIDENTIAL: THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF REGAL MARINE INDUSTRIES. ANY REPRODUCTION IN PART OR AS WHOLE WITHOUT THE WRITTEN PERMISSION OF REGAL MARINE INDUSTRIES IS PROHIBITED.
1 OF 4
1/24/2018
-
31

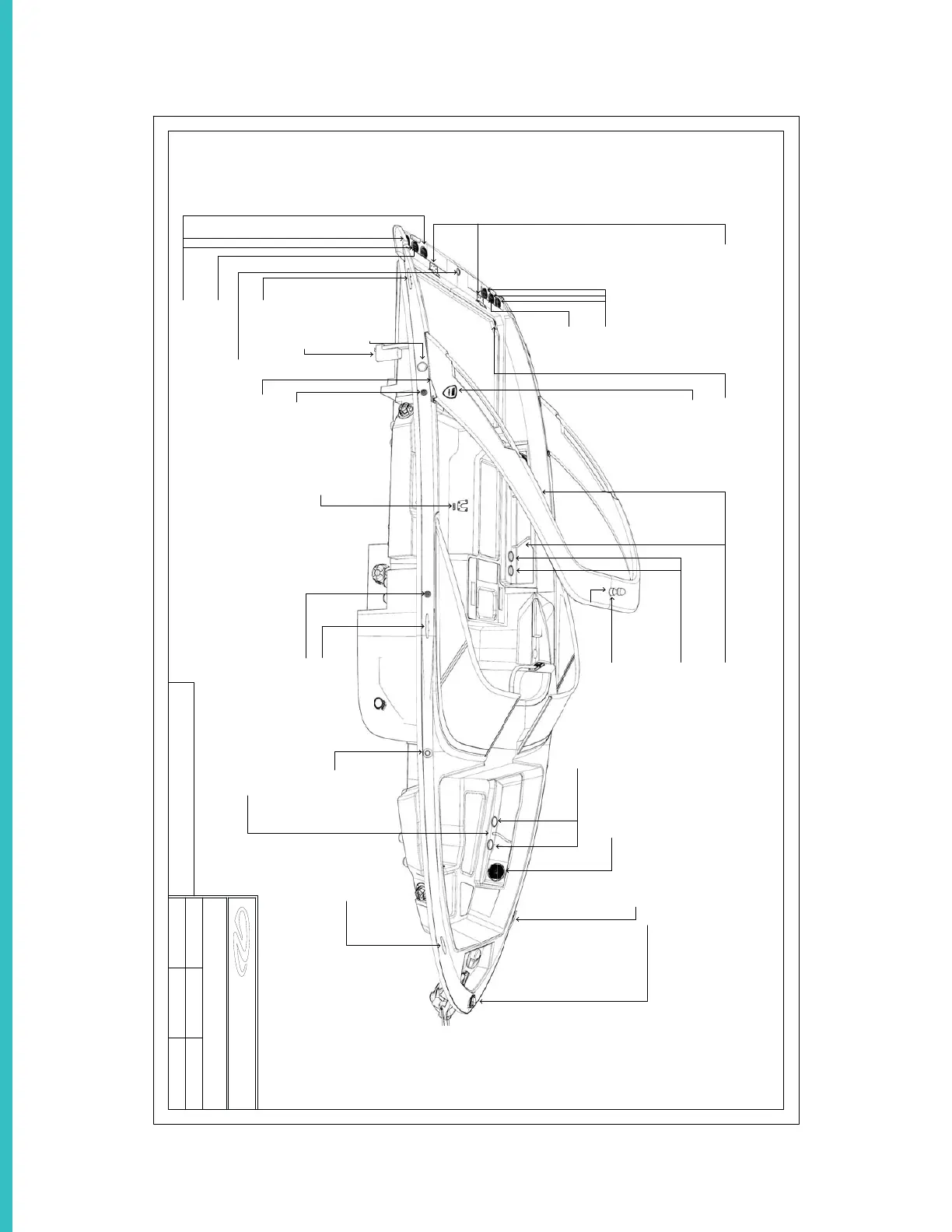

TYPICAL LS SERIES DECK HARDWARE LS6 SHOWN
