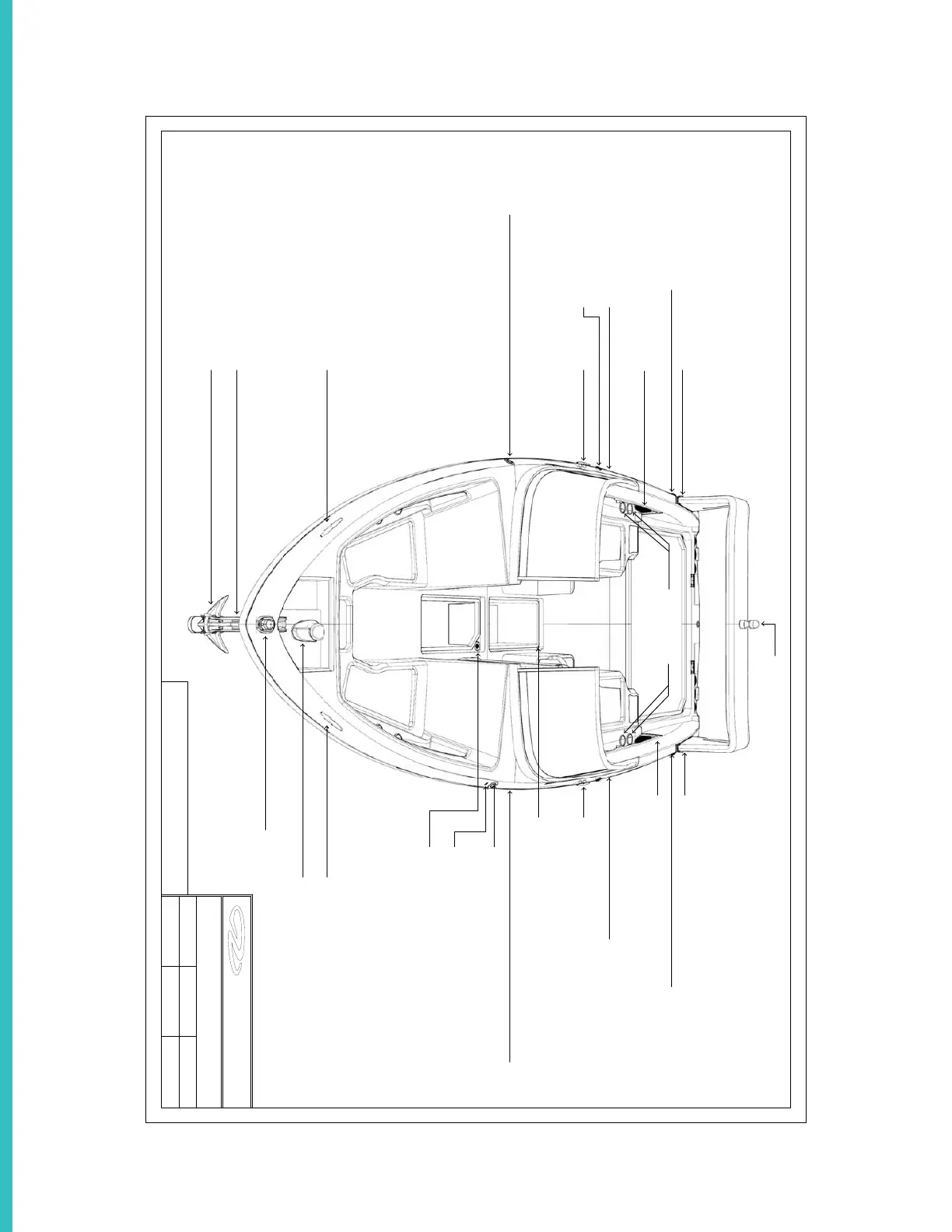

TYPICAL LS SERIES DECK HARDWARE LS6 SHOWN
8" Cleat
Part No. 211314
Receiver; Assembly for 221590
W/ SS Washers, Nut and Plug
Part No. 221592
Elbow; 90deg 3/4Mx3/4B Plastic Part No. 151710
Water Tank Vent Vent; Straight, SS, Recessed Fuel Part No. 127401
Waste Vent Straight Gas Vent Part No. 1274
Ski Tow with Light Pylon Part No. 200144
8" Cleat
Part No. 211314
8" Cleat Part No. 211314
Sink Waste: 3/4 90 Deg Part No. 10130 Locker Vent Cover 2&1/2" Round Chrome PKG 100 Part No. 12661
Roller; Bow for Manta- Anchor
Part No. 271220
Water Fill Cap: Part No. 211729 or Water Fill/Vent Part No. 1274
Speaker: Signature Chrome w/ Light Part No. 957635
Waste Pump-Out Cap Part No. 211776
Receiver; Assembly for 221590
W/ SS Washers, Nut and Plug
Part No. 221592
Receiver; Assembly for 221590 W/ SS Washers, Nut and Plug Part No. 221592
Pop-Up Nav Light
Water Fill Cap:
Part No. 211729
or
Water Fill/Vent
Part No. 1274
Arch Hinge Part No. 201119
Water Tank Vent
Vent; Straight, SS, Recessed Fuel
Part No. 127401
Drinkholder SS Flush Mount Part No. 48626
Arch Hinge
Part No. 201119
Windlass V700 Part No. 48413
8" Cleat Part No. 211314
Speaker: Signature Chrome w/ Light
Part No. 957635
Anchor, SS, Manta with Swivel
Part No. 271221
33
LS6 (MH) Deck Hardware
