Empirbus
Breaker
Windlass
Breaker
Bow Thruster SwitchBattery Switches
There are four 12 volt direct current, group 31
batteries on your vessel.
There are two dedicated port and starboard engine
starter batteries located in the hull on the starboard
bow side. When you start your engines, the starter
batteries provide the engines with enough power to
begin the combustion cycle. Flip up the starboard
bow seat cushion to access the batteries.
There are two house batteries located in the hull
on the mid port side. The house batteries control
all direct current electrical equipment on the boat.
Flip up the port side cockpit seat cushion to access
the house batteries
LX9 Batteries
Flip up the port cockpit seat cushion to access the
Battery Management Box. The two red switches on
the front of the box labeled “Engine” and “House”
control your two engine and two house batteries
respectively. Turn the switches to the “On” position
to turn on your batteries. Battery alignment on
the LX9 is controlled automatically by the EGIS
system. Refer to the “EGIS” section of the Ultimate
Trim manual included in your welcome packet for
more information on the EGIS system, Automatic
Charge Relays, and battery alignment.
The third red switch controls the power flow to your
bow thruster. Turn the switch to the “On” position
to turn the bow thruster on.
Battery Management Box
The Windlass breaker (see “Anchor Windlass”
pg. 116), the house electronics breaker and
the Automatic Charge Relays (see above) are
located inside the Battery Management Box on the
backside of the door.
When a breaker inside the box trips, the yellow
switch will flip to the ‘off’ position. To reset a
breaker, flip the switch back to the ‘on’ position.

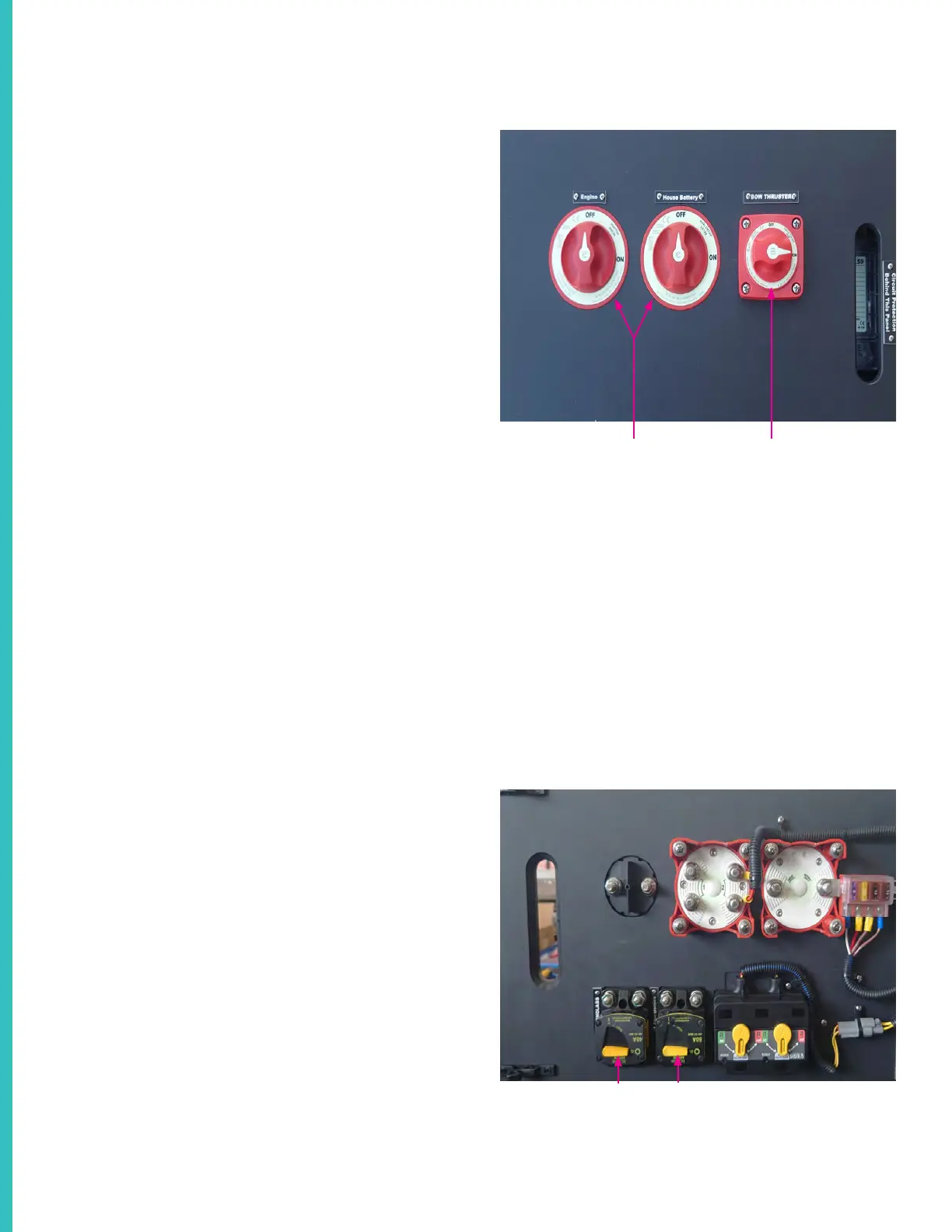

Battery Management Box Exterior
Battery Management Box Interior
Note: Battery management layouts may vary
