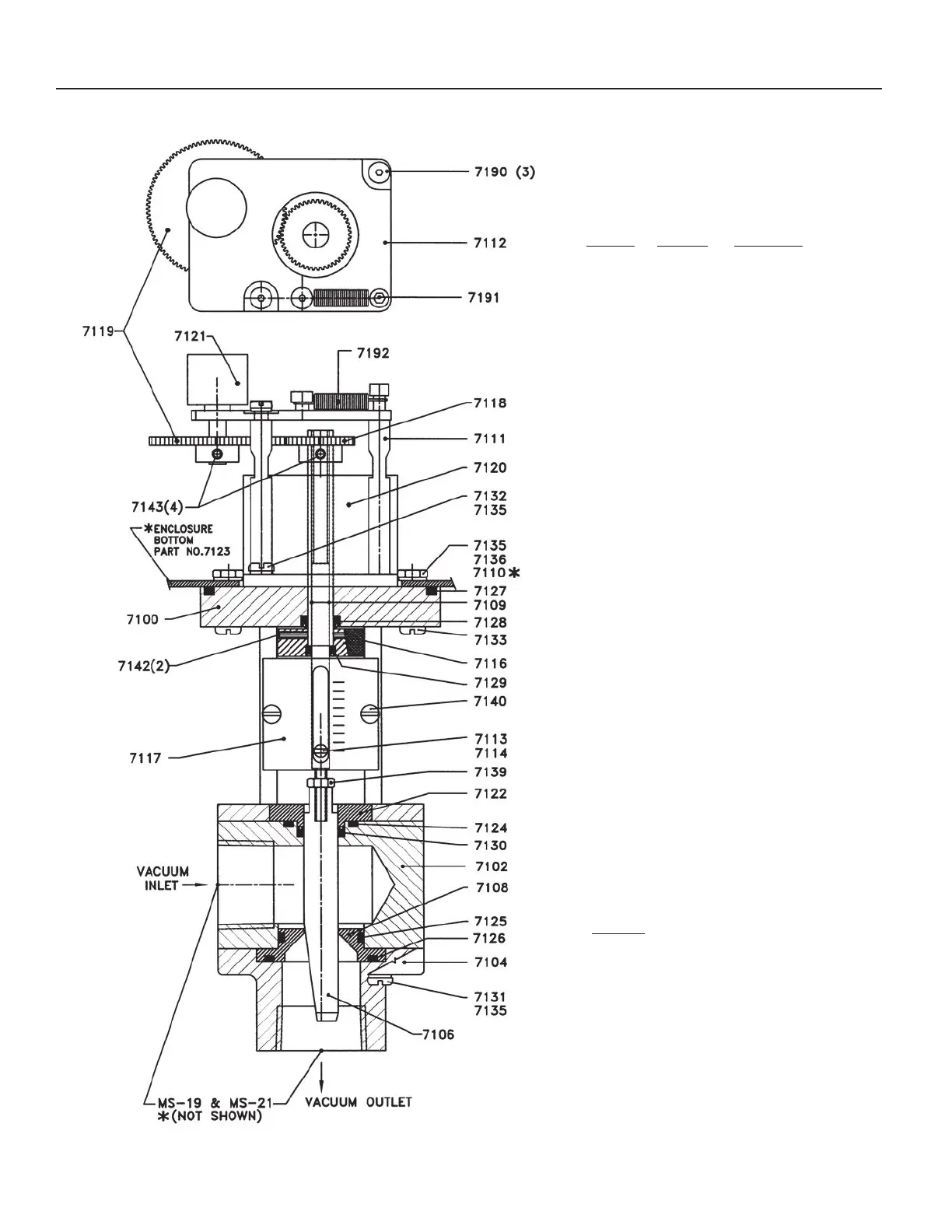

DRAWING NO. 13 — CONTROL VALVE ASSEMBLY
for 1000/2000 PPD (Part Number 7004)
Part No. Quantity Description
7100 1 Yoke
7102 1 Top Body
7104 1 Bottom Body
7106 1 Valve Plug
7108 1 Valve Seat
7109 1 Lead Screw
7110
*
1 Nut Plate
7111 3 Standoff
7112 1 Mounting Plate
7113 1 Indicator Screw
7114 1 Indicator Nut
7116 1 Knob/Knurled
7117 1 Indicator Plate
7118 1 Driver Gear
7119 1 Follower Gear
7120 1 Stepper Motor
7121 1 Potentiometer
7122 1 Guide/Retainer
7124 1 S-405 “O” Ring
7125 1 S-415 “O” Ring
7126 1 S-407 “O” Ring
7127 1 S-414 “O” Ring
7128 1 Seal
7129 1 Seal
7130 1 Seal
7131 4 Screw-#10-24 X 2 1/2
7132 1 Screw-#10-24 X 1/2
7133 4 Screw-#10-32 X 1
with “O” Ring
7135 5 #10 Lock Washer
7136 3 #10-32 Nut
7139 1 #8-32 Nut
7140 2 Screw-#6-32 X 1/4
7142 2 #6-32 Set Screw X 3/8
7143 4 #6-32 Set Screw X 1/4
7190 3 Shoulder Screw
7191 1 Cap Screw
7192 1 Spring
MS19
*
2 1" NPT Union
MS21
*
2 1" NPT Close Nipple
*NOTES:
1. P/N 7110 not shown.
1/8 x 7/16 x 2 1/4
2. Partial View of the mounting section
of the bottom enclosure (P/N 7123).
Not part of this assembly.
3. MS19 and MS21 fittings not shown.
30
