U39-12 ULTIMATE™ Freestanding Gas Stove | 19
installation

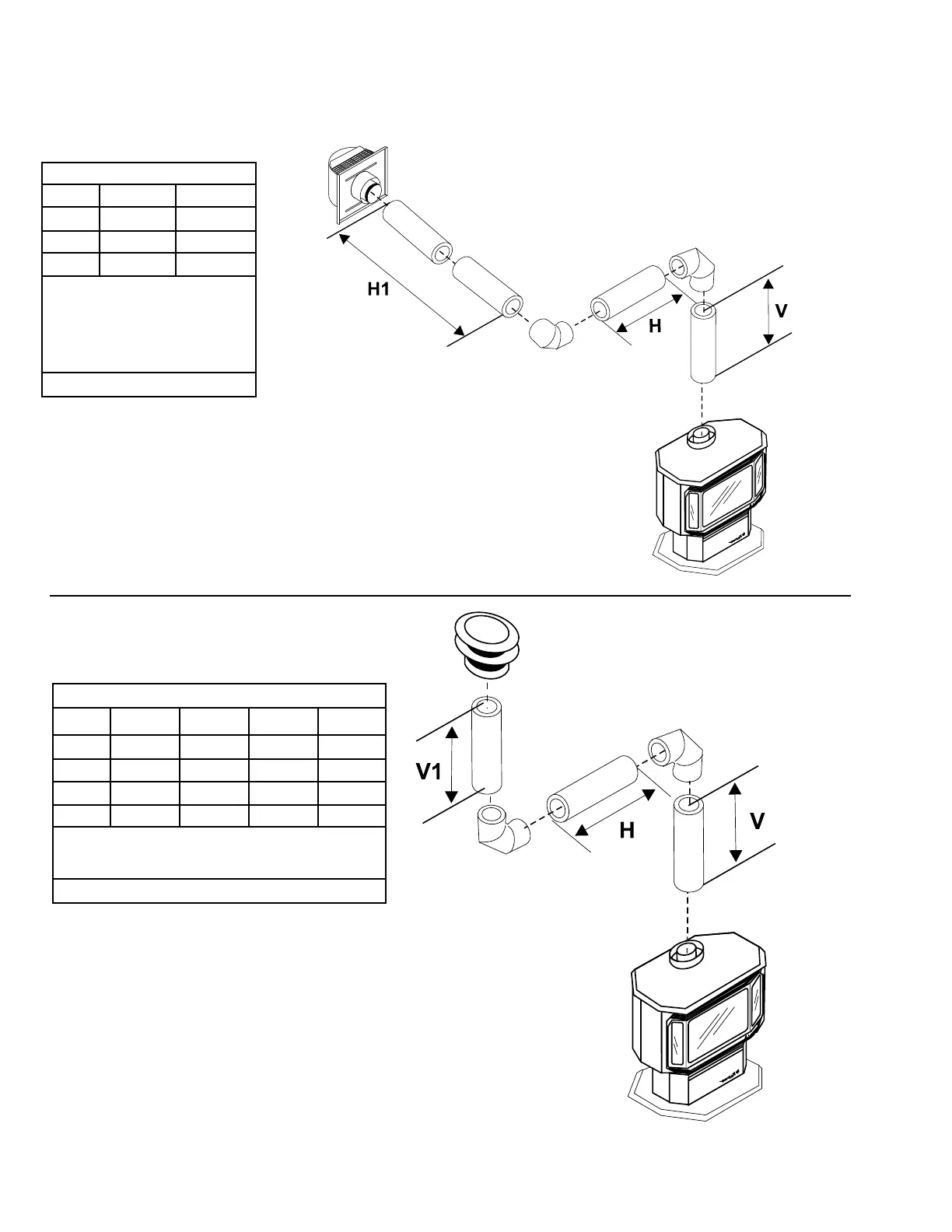

Horizontal Venting with Two (2) 90
o
Elbows
Vertical Venting with Two (2) 90
o
Elbows
One 90
o
elbow = Two 45
o
elbows
Option V H + H1
A) 3' Min. 2' Max.
B) 5' Min. 3' Max.
C) 8' Min. 4' Max.
With these options, maximum total
pipe length is 30 feet with minimum
of 8 feet total vertical and maximum
4 feet total horizontal.
Please note minimum 1 foot
between 90
o
elbows is required.
Lengths do not include elbow indicated
One 90
o
elbow = Two 45
o
elbows
Option V H V1 V + V1
A) 1' Min. 1' Max. 1' Min. 2' Min.
B) 1' Min. 2' Max. 2' Min. 3' Min.
C) 2' Min. 3' Max. 2' Min. 4' Min.
D) 2' Min. 4' Max. 2' Min. 4' Min.
With these options, max. total pipe length is 30 feet with
min. of 4 feet total vertical and max. 4 feet total horizontal.
Please note min. 1 foot between 90
o
elbows is required.
Lengths do not include elbow indicated
.
