Regency Fireplace Products Ultimate U39 - Main Assembly

50 | Regency
®
U39-12 ULTIMATE™ Freestanding Gas Stove
parts list
31. 730-019 Rear Panel
32. 730-565 Firebox Baffle
33. 630-520 False Top Assembly
35. 923R Starter Collar
36. 936-194 Gasket-Starter Collar/Air Passage
37. 936-197 Gasket-Flue Collar/Starter Collar
38. 820-058 Pedestal Base Cover
39. * Gasket - Air Passage
910-073 Spark Generator Battery Holder
910-074 Spark Generator Switch c/w Wire
948-223 Logo Plate
920-135 Manual
*Not available as a replacement part.
1. 732-929 Safety Screen
2. 560-921 Louver Assy - Brush Nickel
560-922 Louver Assy - Black
9. 732-513 Relief Door Assembly
10. 732-022 Mounting Plate Gasket
11. 730-517/P Fan Assembly
910-331/P Fan Motor (120 Volt)
12. 910-813 Power Cord (120 Volt)
15. * Pedestal Assembly
16. 730-039 Pedestal Door
17. 904-257 Pedestal Door Magnet
18. 732-084 Pedestal Back
20. 730-531 Short Side Panel Door Assy
21. 560-031 Hinge for Side Panel
23. 904-258 Side Panel Door Magnet
24. 948-255 Door Latch c/w Hook
25. * Flex Pipe 3" ID
26. * Hose Clamp
27. 910-233 Thermodisc - Fan Auto/On/Off
28. * Mounting Bracket - Thermodisc
30. 630-021 Fan Access Panel

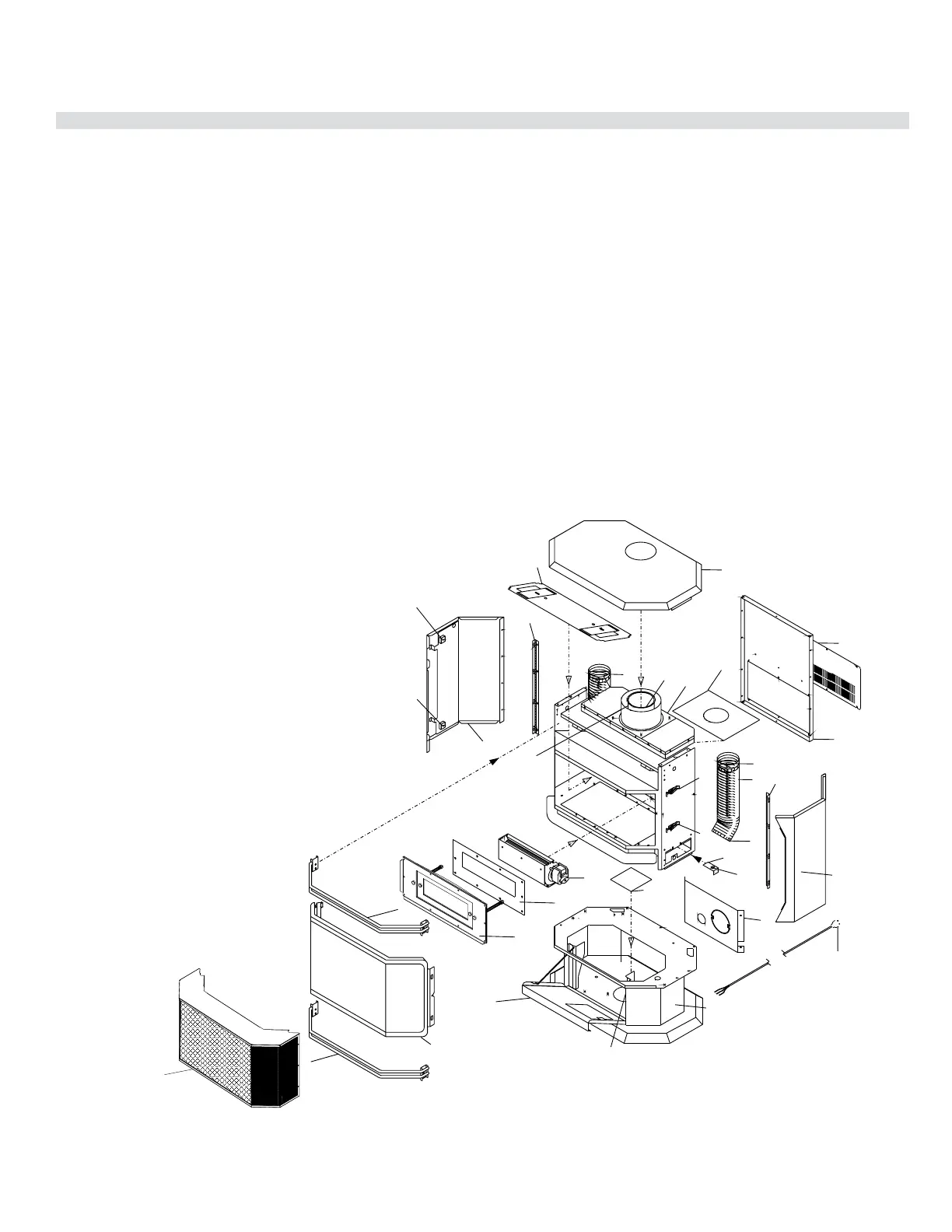

Main Assembly
Part # Description Part # Description
28
11
27
16
33
31
10
9
15
18
17
30
25
21
26
26
21
26
12
38
37
36
39
23
23
20
20
24
24
32
2
2
(SEPARATE ILLUSTRATION ON
GLASS DOOR FRONTS)
1
35
