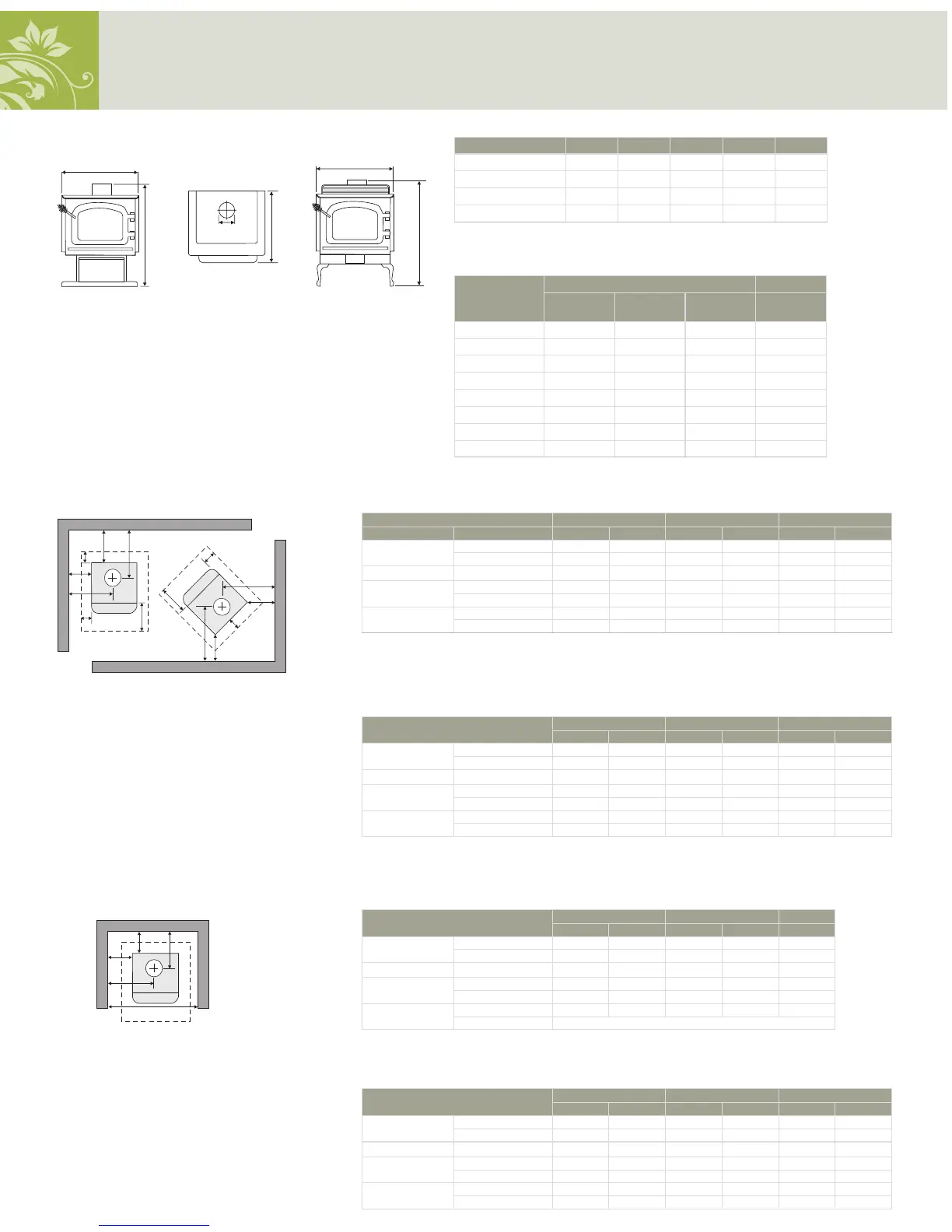

Residential Installation “C” Vent (Single Wall)
FROM UNIT FROM CORNER FROM FLUE CENTER-LINE
A B C D E F
Smal l F110 0
with AirMate 13" 11" 8" 25" 17. 5 " 20"
with Rear Deflector 15" 10.5" 11" 27" 17" 23"
Medium S2400
with Step Top 16" 11" 6" 28" 1 7. 5" 1 7.5 "
Medium F2400
with AirMate 16" 11" 6" 28" 17. 5" 17. 5 "
with Rear Deflector 18" 12" 6.5" 30" 18.5" 19.5"
Large F3100
with AirMate 18" 12" 8.5" 32" 18.5" 22"
with Rear Deflector 20" 14" 10.5" 34" 20.5" 24"
These clearances are certified clearances for the stove, however, the clearance to the combustibles and the single wall stove pipe must also be
maintained. You can reduce the stove pipe clearance with a stove pipe heat shield.
Minimum Clearance to Combustible Materials
Please read the section below carefully as clearances depend on
whether the optional airmate convector or the rear heat deflector
is installed on the stove. Measurements “From Unit” are from the
top plate of the stove to a side wall or to a corner, and from the
rear heat shield to a back wall.
Residential Close Clearance (To be installed with required pipe components)
When the stove is installed as a close clearance residential unit, a listed double wall connector is
required from the stove collar to the ceiling level.
Residential Close Clearance
FROM UNIT FROM CORNER FROM FLUE CENTER-LINE
(To be installed with required pipe components) A B C D E F
Smal l F110 0
with AirMate 9" 5" 3" 21" 11.5" 15"
with Rear Deflector 13.5" 5" 5" 25.5" 11.5" 17"
Medium S2400
with Step Top 15" 5.5" 4" 27" 12" 15.5"
Medium F2400
with AirMate 15" 5.5" 4" 27" 12" 15.5
with Rear Deflector 15" 6.5" 6" 27" 13" 1 7. 5"
Large F3100
with AirMate 16" 9.5" 8.5" 30" 16" 22"
with Rear Deflector 20" 12" 8.5" 34" 18.5" 22"
Mobile Home Close Clearance (To be installed with required pipe components)
“C” Vent single wall pipe is not approved for mobile home installations. (Refer to mobile home instruc-
tions)
Mobile Home Close Clearance FROM UNIT FROM CORNER FROM FLUE CENTER-LINE
(To be installed with required pipe components) A B C D E F
Smal l F110 0
with AirMate 11" 6" 6" 23" 12.5" 18"
with Rear Deflector 13" 5" 9" 25" 11. 5" 21"
Medium S2400
with Step Top 15" 5.5" 4" 27" 12" 15.5"
Medium F2400
with AirMate 15" 5.5" 4" 27" 12" 15.5"
with Rear Deflector 15" 6.5" 6" 27" 13" 1 7.5"
Large F3100
with AirMate 18" 9.5" 10" 32" 16" 23.5"
with Rear Deflector 20" 12" 10" 34" 18.5" 23.5"
Minimum Alcove Clearance to Combustible Materials
The Regency
®
Freestanding models have been alcove approved and must be installed with a
listed double wall connector to the ceiling level.
Note: Minimum alcove ceiling height - 84 in. / Maximum depth of alcove - 36 in.
Minimum Alcove Clearance
FROM UNIT FROM FLUE CENTER-LINE MIN. WIDTH
G H I J K
Smal l F110 0
with AirMate 11" 7" 23" 13.5" 46"
with Rear Deflector 13" 5" 25" 11.5" 50"
Medium S2400
with Step Top 15" 5.5" 27" 12" 54"
Medium F2400
with AirMate 15" 5.5" 27" 12" 54"
with Rear Deflector 15" 6.5" 27" 13" 54"
Large F3100
with AirMate 16" 9.5" 30" 16" 60"
with Rear Deflector not approved for Alcove
FRONT WITH
PEDESTAL
B
A
D
C
B
E
Dimensions A** B C*** D E**
Smal l F110 0
30-1/4" 24" 20" 6" 31-3/4"
Medium F2400
32-1/16" 24" 27-3/8" 6" 33-1/ 2"
Large F3100
33-5/16" 28" 25-1/4" 6" 34-3/4"
Medium S2400
34-3/8" 24" 27-3/8" 6" 35 -7/ 8"
** Measured to top of flue collar for height
*** Including Ash Lip
B
A
D
C
B
E
B
A
D
C
B
E
FRONT WITH LEGS
TOP
Classic Stoves
Flat Top Step Top
F1100 F2400 F3100 S2400
Small Stove Medium Stove Large Stove Medium Stove
Maximum BTU*
55,000 75,000 80,000 75,000
Typical Sq. Ft. Heated
60 0-1200 1000-2200 2000-3500 1000-2200
Optimum Efficiency
73.8% 77% 71% 77%
Maximum Log Size
18" 18" 21" 18"
Burn Time (Typical)*
up to 8 hrs up to 8 hrs up to 10 hrs up to 8 hrs
Emissions (grams/hr)
3.0g 3.4g 4.2g 3.4g
Firebox Size
1.4 cu. ft. 2.3 cu. ft. 2.9 cu. ft. 2.3 cu. ft.
Flue Size
6" 6" 6" 6"
* Length of burn time and BTU range depend on type of wood, climate conditions and installation.
