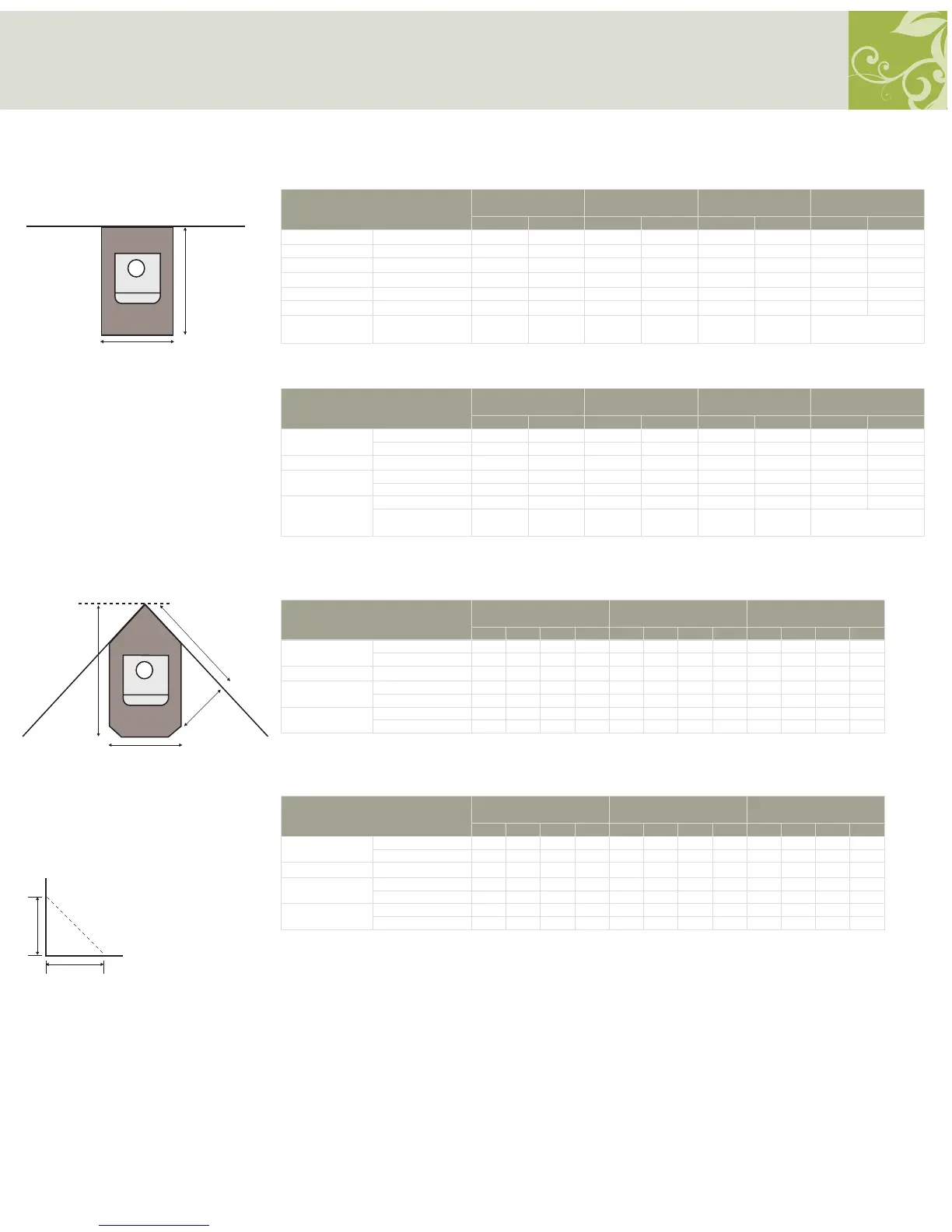

Regency F2400 - Page 21

CLASSIC WOOD STOVE FLOOR PROTECTION
USA FLOOR PROTECTION
Corner Hearth Requirements
Residential “C” Vent Residential Close Clearance
Mobile Home
Close Clearance
A B C D A B C D A B C D
Smal l F110 0
with AirMate 36" 52.75" 45.75" 21.25" 36" 47.75" 40.75" 16.25" 36" 50.75" 43.75" 19.25"
with Rear Deflector 36" 5 7. 2 5 " 49.25" 25" 36" 49.75" 42.75" 18.25" 36" 58.25" 50.25" 26"
Medium S2400
with Step Top 36" 5 7. 5" 53.5" 26.5" 36" 55" 52.5" 24.75" 36" 55" 52.25" 24.75"
Medium F2400
with AirMate 36" 5 7. 5" 53.5" 26.5" 36" 55" 52.5" 24.75" 36" 55" 52.25" 24.75"
with Rear Deflector 36" 58" 54" 27" 36" 5 7. 5 " 53.5" 27" 36" 5 7. 5" 53.5" 27"
Large F3100
with AirMate 40" 60.75" 53" 24.25" 40" 60.75" 53" 24.25" 40" 60.25" 54.5" 24.25"
with Rear Deflector 40" 63.5" 53.5" 26.25" 40" 60.75" 53" 24.25" 40" 63" 54.5" 24.25"
D
A
A
6"
B
B
C
6"
D
A
A
6"
B
B
C
6"
USA FLOOR PROTECTION
Flush Wall Hearth Requirements
Residential “C” Vent Residential Close Clearance
Mobile Home
Close Clearance
Alcove
A B A B A B A B
Smal l F110 0
with AirMate 36" 38" 36" 37" 36" 38" 36" 38"
with Rear Deflector 36" 38" 36" 37" 36" 37" 36" 37"
Medium S2400
with Step Top 36" 46" 36" 45" 36" 45" 36" 45"
Medium F2400
with AirMate 36" 46" 36" 45" 36" 45" 36" 45"
with Rear Deflector 36" 46" 36" 45" 36" 45" 36" 45"
Large F3100
with AirMate 40" 43" 40" 43" 40" 43" 40" 43"
with Rear Deflector 40" 43" 40" 43" 40" 43" Not approved
for alcove
Floor Protection
A combustible floor must be protected by non-combustible material (like tile, concrete board, or certified to UL-1618
or as defined by local codes) extending beneath the heater and a minimum of 6" (USA) or 8" (250mm) (Canada) from
each side and minimum 16" (USA) or 18" (450mm) (Canada) from the front face of stove and minimum 6" (USA) or 8"
(250mm) (Canada) or the rear clearance to combustibles, whichever is smaller, from the rear of the stove.
When installed with horizontal venting, non-combustible floor protection must be installed beneath the flue pipe and
extend 2" (51mm) beyond each side.
CANADA FLOOR PROTECTION
Flush Wall Hearth Requirements
Residential “C” Vent Residential Close Clearance
Mobile Home
Close Clearance
Alcove
A B A B A B A B
Smal l F110 0
with AirMate 40" 42" 40" 41" 40" 42" 40" 42"
with Rear Deflector 40" 42" 40" 41" 40" 41" 40" 41"
Medium S2400
with Step Top 40" 50" 40" 49" 40" 49" 40" 49"
Medium F2400
with AirMate 40" 50" 40" 49" 40" 49" 40" 49"
with Rear Deflector 40" 50" 40" 49" 40" 49" 40" 49"
Large F3100
with AirMate 44" 47" 44" 47" 44" 47" 44" 47"
with Rear Deflector 44" 47" 44" 47" 44" 44" Not approved for alcove
CANADA FLOOR PROTECTION
Corner Hearth Requirements
Residential “C” Vent Residential Close Clearance
Mobile Home
Close Clearance
A B C D A B C D A B C D
Smal l F110 0
with AirMate 40" 54.75" 47.75" 19.25" 40" 49.75" 42.75" 14.25" 40" 52.75" 45.75" 17. 2 5 "
with Rear Deflector 40" 59.25" 51.25" 23" 40" 51.75" 44.75" 16.25" 40" 60.25" 52.25" 24"
Medium S2400
with Step Top 40" 59.5" 55.5" 28.5" 40" 57" 54.5" 26.75" 40" 57" 54.25" 26.75"
Medium F2400
with AirMate 40" 59.5" 55.5" 28.5" 40" 57" 54.5" 26.75" 40" 57" 54.25" 26.75"
with Rear Deflector 40" 60" 56" 29" 40" 59.5" 55.5" 29" 40" 59.5" 55.5" 29"
Large F3100
with AirMate 44" 62.75" 55" 22.25" 44" 62.75" 55" 22.25" 44" 62.25" 56.5" 22.25"
with Rear Deflector 44" 65.5" 55.5" 24.25" 44" 62.75" 55" 22.25" 44" 65" 56.5" 22.25"
D
A
A
6"
B
B
C
6"
Corner Installations
If the rear clearance to combustibles is less
than 6", for corner installations the corners
may be angled to take advantage of the closer
clearances.
21
